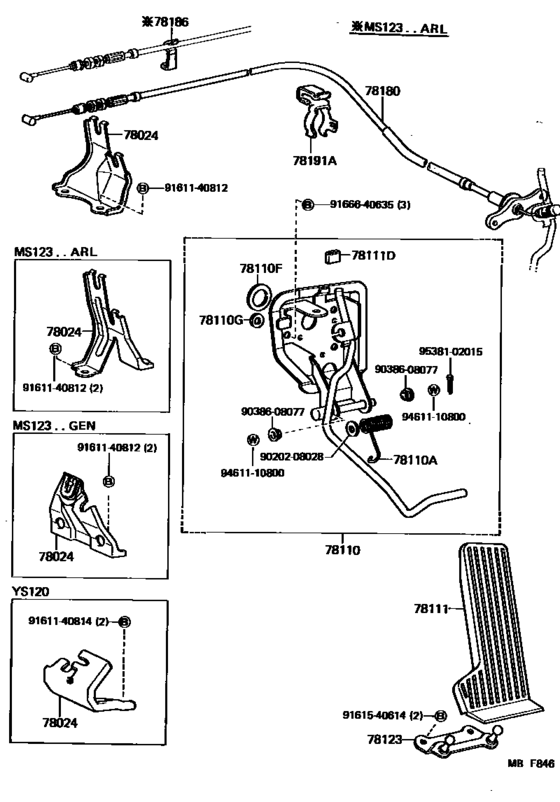

Accelerator Link ([08.1983 - ] (8308- )MS12#,YS120..RHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- General
- Frame
- MS122
- grade
- SAL
- body
- SED
- ENGINE
- 5M
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-30010 Bracket Sub-Assy, Accelerator Control Cable[08.1983 - 08.1987] MS122..SED |
78024-30010 |
US $35.53 |
||
|
78110
|
78110
78120-30370 Rod Assy, Accelerator Pedal[01.1985 - 08.1987] MS12#..RHD..ATM |
78120-30370 |
US $68.14 |
||
|
78110
|
78110
78120-30460 Rod Assy, Accelerator Pedal[08.1983 - 01.1985] MS12#..RHD..ATM |
78120-30460 |
US $67.85 |
||
| replacement | |||||
|
78110
|
78110
78120-30370 Rod Assy, Accelerator Pedal[08.1983 - 01.1985] MS12#..RHD..ATM |
78120-30370 |
US $68.14 |
||
|
78110A
|
78110A
90508-18016 Spring, Torsion (For Accelerator Link)[08.1983 - 08.1987] MS12#..RHD..ATM |
90508-18016 |
US $3.64 |
||
|
78110F
|
78110F
78129-30050
Seal, No.1 (For Accelerator Pedal Rod)
[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78129-30050 |
— | ||
|
78110G
|
78110G
78139-30050
Seal, No.2 (For Accelerator Pedal Rod)
[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78139-30050 |
— | ||
|
78111
|
78111
78111-30080 Pedal, Accelerator[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78111-30081 |
US $10.13 |
||
|
78111D
|
78111D
78119-30050 Stopper (For Accelerator Pedal)[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78119-30050 |
US $2.77 |
||
|
78123
|
78123
78114-30050 Bracket, Accelerator Pedal Support[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78114-30050 |
US $7.34 |
||
|
78180
|
78180
78180-30470 Wire Assy, AcceleratorACCELERATOR [08.1983 - 08.1987] MS122..RHD |
78180-30470 |
US $51.25 |
||
|
78191A
|
78191A
78183-30070 Clamp, Accelerator Control Cable[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78183-30070 |
US $12.67 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161540614
|
9161540614
91615-40614 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40614 |
US $1.89 |
||
| replacement | |||||
|
9161540614
|
9161540614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
