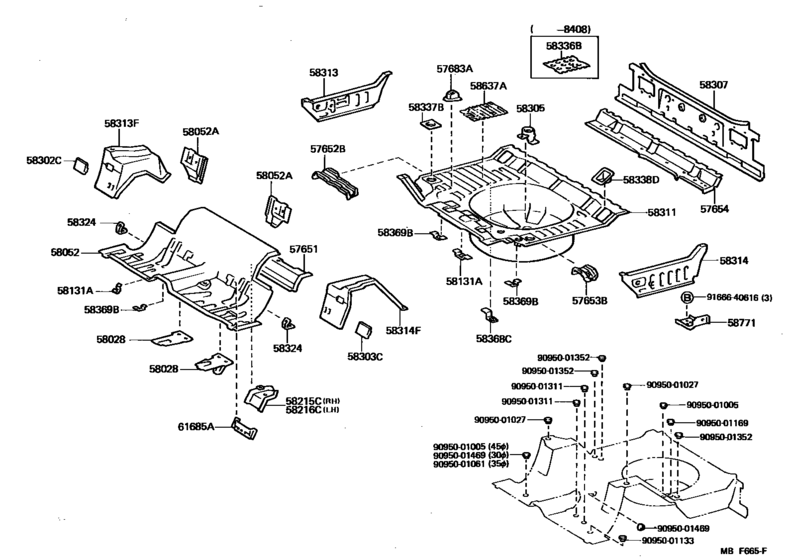

Floor Pan & Lower Back Panel ([08.1983 - ] (8308- )MS123,125) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- MS123
- grade
- ROY
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 08.1983
- To
- 10.1984
- Gear Shift Type
- 4HC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57651
|
57651
57407-30040
Crossmember, Rear Floor, Front
[08.1983 - 08.1987] MS123,125 |
57407-30040 |
— | ||
|
57652B
|
57652B
57652-30040 Member, Rear Floor Cross, Front Rh[08.1983 - 08.1987] MS123,125 |
57652-30040 |
US $115.02 |
||
| replacement | |||||
|
57652B
|
57652B
57652-30041 Member, Rear Floor Cross, Front Rh[08.1983 - 08.1987] MS123,125 |
57652-30041 |
US $110.66 |
||
|
57653B
|
57653B
57653-30060 Member, Rear Floor Cross, Front Lh[08.1983 - 08.1987] MS123,125 |
57653-30060 |
US $115.02 |
||
| replacement | |||||
|
57653B
|
57653B
57653-30061 Member, Rear Floor Cross, Front Lh[08.1983 - 08.1987] MS123,125 |
57653-30061 |
US $110.66 |
||
|
57654
|
57654
57654-30050 Member, Rear Floor Cross, No.4[08.1983 - 08.1987] LS120,MS12#,YS120..HT,SED |
57654-30050 |
US $163.07 |
||
|
57683A
|
57683A
57683-30030 Bracket, Fuel Tank Mounting, No.1[08.1983 - 08.1987] MS123,125 |
57683-30030 |
US $13.10 |
||
|
58028
|
58028
58028-30060 Reinforcement Sub-Assy, Seat Belt Anchor, No.2[08.1983 - 08.1987] MS123,125 RH |
58028-30060 |
US $70.91 |
||
|
58028
|
58028
58028-30070 Reinforcement Sub-Assy, Seat Belt Anchor, No.2[08.1983 - 08.1987] MS123,125 LH |
58028-30070 |
US $70.91 |
||
|
58052
|
58052
58211-30210
Pan Sub-Assy, Center Floor
[08.1983 - 06.1986] MS123,125 |
58211-30210 |
— | ||
| replacements | |||||
|
58052
|
58052
90950-01872 Plug, Hole, No.3(For Dash Panel)[08.1983 - 06.1986] MS123,125 |
90950-01872 |
from US $2.29 |
||
|
58052
|
58052
58211-30211 Pan Sub-Assy, Center Floor[08.1983 - 06.1986] MS123,125 |
58211-30211 |
US $339.25 |
||
|
58052A
|
58052A
64225-30040 Plate, Rear Seat Cushion Support[08.1983 - 08.1987] MS123,125 RH |
64225-30040 |
US $20.68 |
||
|
58052A
|
58052A
64226-30010 Plate, Rear Seat Cushion Support[08.1983 - 08.1987] MS123,125 LH |
64226-30010 |
US $20.68 |
||
|
58131A
|
58131A
58131-12020 Bracket, Mounting, Floor, No.1[08.1983 - 08.1987] LS120,MS12#,YS120 |
58131-12020 |
US $3.06 |
||
| replacement | |||||
|
58131A
|
58131A
58131-14030
Bracket, Mounting, Floor, No.1
[08.1983 - 08.1987] LS120,MS12#,YS120 |
58131-14030 |
— | ||
|
58215C
|
58215C
58215-30010 Reinforcement, Center Floor Panel, No.2 Rh[08.1983 - 10.1984] MS123 |
58215-30010 |
US $15.87 |
||
|
58216C
|
58216C
58215-30010 Reinforcement, Center Floor Panel, No.2 Rh[08.1983 - 08.1987] MS123,125 |
58215-30010 |
US $15.87 |
||
|
58302C
|
58302C
58302-30020 Bracket Sub-Assy, Rear Absorber, Rh[08.1983 - 08.1987] MS123,125 |
58302-30020 |
US $22.42 |
||
|
58303C
|
58303C
58303-30050 Bracket Sub-Assy, Rear Absorber, Lh[08.1983 - 08.1987] MS123,125 |
58303-30050 |
US $45.43 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[08.1983 - 08.1987] LS120,MS12#,YS120..HT,SED |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-30420 Panel Sub-Assy, Body Lower Back[08.1983 - 09.1985] MS123,125..ROY |
58307-30420 |
US $267.90 |
||
| replacements | |||||
|
58307
|
58307
58307-30421 Panel Sub-Assy, Body Lower Back[08.1983 - 09.1985] MS123,125..ROY |
58307-30421 |
US $270.82 |
||
|
58307
|
58307
90333-20001 PLUG[08.1983 - 09.1985] MS123,125..ROY |
90333-20001 |
from US $1.12 |
||
|
58311
|
58311
58311-30170 Pan, Rear Floor[08.1983 - 08.1987] MS123,125 |
58311-30170 |
US $570.75 |
||
|
58313
|
58313
58305-30070 Panel, Rear Floor Side, Rh[08.1983 - 08.1984] LS120,MS12#,YS120..SED |
58305-30070 |
US $58.68 |
||
|
58313
|
58313
58305-30080 Panel, Rear Floor Side, Rh[08.1983 - 08.1984] MS12#..SED..(EUG,GEN,SAA,SWZ) W/MOON ROOF |
58305-30080 |
US $58.82 |
||
| replacement | |||||
|
58313
|
58313
58305-30100 Panel, Rear Floor Side, Rh[08.1983 - 08.1984] MS12#..SED..(EUG,GEN,SAA,SWZ) W/MOON ROOF |
58305-30100 |
US $58.68 |
||
|
58313
|
58313
58305-30090 Panel, Rear Floor Side, RhREAR FLOOR SIDE, RH [08.1984 - 08.1987] LS120,MS12#,YS120..HT,SED |
58305-30090 |
US $58.68 |
||
|
58313
|
58313
58305-30100 Panel, Rear Floor Side, Rh[08.1984 - 09.1985] MS12#..SED..(EUG,GEN,SAA,SWZ) W/MOON ROOF |
58305-30100 |
US $58.68 |
||
|
58313F
|
58313F
58313-30080 Extension, Rear Floor Pan To Quarter Panel, Rh[08.1983 - 08.1987] MS123,125 |
58313-30080 |
US $52.85 |
||
|
58314
|
58314
58306-30070 Panel, Rear Floor Side, Lh[08.1983 - 08.1984] LS120,MS12#,YS120..SED |
58306-30070 |
US $58.68 |
||
|
58314
|
58314
58306-30080 Panel, Rear Floor Side, Lh[08.1983 - 08.1984] MS12#..SED..(EUG,GEN,SAA,SWZ) W/MOON ROOF |
58306-30080 |
US $58.82 |
||
| replacement | |||||
|
58314
|
58314
58306-30100 Panel, Rear Floor Side, Lh[08.1983 - 08.1984] MS12#..SED..(EUG,GEN,SAA,SWZ) W/MOON ROOF |
58306-30100 |
US $58.68 |
||
|
58314
|
58314
58306-30090 Panel, Rear Floor Side, LhREAR FLOOR SIDE, LH [08.1984 - 08.1987] LS120,MS12#,YS120..HT,SED |
58306-30090 |
US $58.68 |
||
|
58314
|
58314
58306-30100 Panel, Rear Floor Side, Lh[08.1984 - 09.1985] MS12#..SED..(EUG,GEN,SAA,SWZ) W/MOON ROOF |
58306-30100 |
US $58.68 |
||
|
58314F
|
58314F
58314-30070 Extension, Rear Floor Pan To Quarter Panel, Lh[08.1983 - 08.1987] MS123,125 |
58314-30070 |
US $52.85 |
||
|
58324
|
58324
47351-30150 Bracket, Flexible Hose[08.1983 - 08.1987] MS123,125 |
47351-30150 |
US $8.30 |
||
| replacement | |||||
|
58324
|
58324
47351-30220 Bracket, Flexible Hose[08.1983 - 08.1987] MS123,125 |
47351-30220 |
US $9.03 |
||
|
58336B
|
58336B
58336-30060 Reinforcement, Rear Floor Pan[08.1983 - 08.1984] MS123 |
58336-30060 |
US $23.30 |
||
|
58337B
|
58337B
58337-30060 Reinforcement, No.7 Body Mounting[08.1983 - 08.1987] LS120,MS12#,YS120..HT,SED |
58337-30060 |
US $13.69 |
||
|
58338D
|
58338D
58338-30030 Reinforcement, Tail End Body Mounting[08.1983 - 08.1987] LS120,MS12#,YS120..HT,SED |
58338-30030 |
US $13.40 |
||
|
58368C
|
58368C
58369-30030 Bracket, Fuel Tube, No.3[08.1983 - 08.1987] LS120,MS12#,YS120 |
58369-30030 |
US $5.39 |
||
|
58369B
|
58369B
58369-30010 Bracket, Fuel Tube, No.3[08.1983 - 12.1984] LS120,MS12#,YS120 |
58369-30010 |
US $5.39 |
||
| replacement | |||||
|
58369B
|
58369B
58369-30040 Bracket, Fuel Tube, No.3[08.1983 - 12.1984] LS120,MS12#,YS120 |
58369-30040 |
US $3.93 |
||
|
58637A
|
58637A
58637-30010 Panel, Rear Floor Silencer[08.1984 - 08.1987] MS123,125 |
58637-30010 |
US $42.08 |
||
| replacement | |||||
|
58637A
|
58637A
58637-30011 Panel, Rear Floor Silencer[08.1984 - 08.1987] MS123,125 |
58637-30011 |
US $42.37 |
||
|
58771
|
58771
58795-30010 Clamp, Jack, No.1[08.1983 - 08.1987] LS120,MS12#,YS120..HT,SED |
58795-30010 |
US $24.17 |
||
|
61685A
|
61685A
61685-30010 Bracket, Rear Seat Back MountingREAR SEAT BACK MOUNTING [08.1983 - 09.1985] MS123,125 |
61685-30010 |
US $11.50 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001133
|
9095001133
90950-01133 Plug, Hole(For Front Fender Apron) |
90950-01133 |
from US $2.42 |
||
|
9095001169
|
9095001169
90950-01169 Plug, Hole, No.4(For Dash Panel) |
90950-01169 |
US $7.72 |
||
|
9095001311
|
9095001311
90950-01311 PLUG |
90950-01311 |
US $0.96 |
||
|
9095001352
|
9095001352
90950-01352 New Genuine Part |
90950-01352 |
US $4.32 |
||
|
9095001469
|
9095001469
90950-01469 New Genuine Part |
90950-01469 |
US $3.20 |
||
|
9166640616
|
9166640616
91666-40616
New Genuine Part
|
91666-40616 |
— | ||
| replacement | |||||
|
9166640616
|
9166640616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
