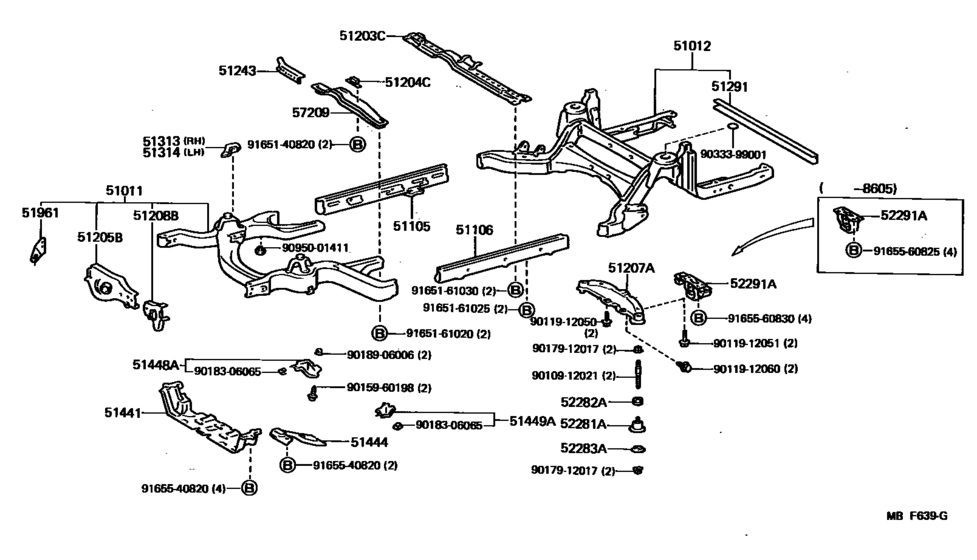

Frame ([08.1983 - ] (8308- )MS123,125) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- MS123
- grade
- ROY
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 08.1983
- To
- 10.1984
- Gear Shift Type
- 4HC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51011
|
51011
51011-30330
Rail Sub-Assy, Front Frame
[08.1983 - 09.1985] LS120,MS12# |
51011-30330 |
— | ||
| replacements | |||||
|
51011
|
51011
51011-30332 Rail Sub-assy, Front Frame[08.1983 - 09.1985] LS120,MS12# |
51011-30332 |
US $2,082.08 |
||
|
51011
|
51011
48674-30031 Cushion, Strut Bar[08.1983 - 09.1985] LS120,MS12# |
48674-30031 |
US $6.47 |
||
|
51011
|
51011
90540-22006 Cushion(For Strut Bar Cushion)[08.1983 - 09.1985] LS120,MS12# |
90540-22006 |
US $3.30 |
||
|
51011
|
51011
91612-B1020 Bolt (For Transfer Case)Cover No.2[08.1983 - 09.1985] LS120,MS12# |
91612-B1020 |
US $2.08 |
||
|
51011
|
51011
52203-30060 Cushion Sub-Assy, Rear Frame[08.1983 - 09.1985] LS120,MS12# |
52203-30060 |
US $23.41 |
||
|
51011
|
51011
52204-30040 Cushion Sub-Assy, Body Mounting, Lower[08.1983 - 09.1985] LS120,MS12# |
52204-30040 |
US $23.41 |
||
|
51011
|
51011
90119-10694
BOLT
[08.1983 - 09.1985] LS120,MS12# |
90119-10694 |
— | ||
|
51012
|
51012
51012-30260 Rail Sub-Assy, Rear Frame[08.1983 - 08.1987] MS123,125 |
51012-30260 |
US $2,082.08 |
||
|
51105
|
51105
51105-30060 Rail Sub-Assy, Center Frame, Rh[08.1983 - 08.1987] LS120,MS12#,YS120 |
51105-30060 |
US $243.15 |
||
|
51106
|
51106
51106-30060 Rail Sub-Assy, Center Frame, Lh[08.1983 - 08.1987] LS120,MS12#,YS120 |
51106-30060 |
US $199.47 |
||
|
51203C
|
51203C
51203-30100 Crossmember Sub-Assy, Center Bearing Support[08.1983 - 08.1987] MS123,125 |
51203-30100 |
US $165.98 |
||
| replacement | |||||
|
51203C
|
51203C
51240-30011 Crossmember Sub-Assy, Center Bearing Support[08.1983 - 08.1987] MS123,125 |
51240-30011 |
US $164.53 |
||
|
51205B
|
51205B
51205-30060
Support Sub-Assy, Strut Bar, Rh
[08.1983 - 09.1985] LS120,MS12#,YS120 |
51205-30060 |
— | ||
| replacements | |||||
|
51205B
|
51205B
51205-30062 Support Sub-Assy, Strut Bar, Rh[08.1983 - 09.1985] LS120,MS12#,YS120 |
51205-30062 |
US $165.98 |
||
|
51205B
|
51205B
48674-30031 Cushion, Strut Bar[08.1983 - 09.1985] LS120,MS12#,YS120 |
48674-30031 |
US $6.47 |
||
|
51205B
|
51205B
90540-22006 Cushion(For Strut Bar Cushion)[08.1983 - 09.1985] LS120,MS12#,YS120 |
90540-22006 |
US $3.30 |
||
|
51207A
|
51207A
51207-30060 Member Sub-Assy, Differential Support[08.1983 - 08.1987] MS123,125 |
51207-30060 |
US $165.98 |
||
|
51208B
|
51208B
51208-30030
Support Sub-Assy, Strut Bar, Lh
[08.1983 - 09.1985] LS120,MS12#,YS120 |
51208-30030 |
— | ||
| replacements | |||||
|
51208B
|
51208B
51208-30032 Support Sub-Assy, Strut Bar, Lh[08.1983 - 09.1985] LS120,MS12#,YS120 |
51208-30032 |
US $165.98 |
||
|
51208B
|
51208B
48674-30031 Cushion, Strut Bar[08.1983 - 09.1985] LS120,MS12#,YS120 |
48674-30031 |
US $6.47 |
||
|
51208B
|
51208B
90540-22006 Cushion(For Strut Bar Cushion)[08.1983 - 09.1985] LS120,MS12#,YS120 |
90540-22006 |
US $3.30 |
||
|
51243
|
51243
51243-30010
Member, Anti Shake
[08.1983 - 08.1987] LS120,MS12#,YS120 |
51243-30010 |
— | ||
|
51291
|
51291
51291-30080 Crossmember, Frame, Rear[08.1983 - 08.1987] LS120,MS12#,YS120..SED |
51291-30080 |
US $96.10 |
||
| replacement | |||||
|
51291
|
51291
51291-30101 Crossmember Sub-Assy, Frame, Rear[08.1983 - 08.1987] LS120,MS12#,YS120..SED |
51291-30101 |
US $82.99 |
||
|
51313
|
51313
51313-30050 Gusset, Front Frame, Lower Rh[08.1983 - 08.1987] LS120,MS12#,YS120 |
51313-30050 |
US $18.64 |
||
|
51314
|
51314
51314-30050 Gusset, Front Frame, Lower Lh[08.1983 - 08.1987] LS120,MS12#,YS120 |
51314-30050 |
US $18.64 |
||
|
51441
|
51441
51441-30080 Cover, Engine Under, No.1[08.1983 - 08.1987] LS120,MS12#,YS120 |
51441-30080 |
US $77.17 |
||
|
51444
|
51444
51444-30100 Cover, Engine Under, Rear Lh[08.1983 - 08.1987] MS12# |
51444-30100 |
US $34.07 |
||
|
51448A
|
51448A
51448-30040 Cover, Engine Side Under, Rh[08.1983 - 08.1987] LS120,MS12#,YS120 |
51448-30040 |
US $13.25 |
||
|
51449A
|
51449A
51449-30040 Cover, Engine Side Under, Lh[08.1983 - 08.1987] LS120,MS12#,YS120 |
51449-30040 |
US $13.25 |
||
|
51961
|
51961
51963-30040 Hook, No.1[10.1984 - 08.1987] LS120,MS12#,YS120 RH |
51963-30040 |
US $12.67 |
||
|
51961
|
51961
51964-30040 Hook, No.1[10.1984 - 08.1987] LS120,MS12#,YS120 LH |
51964-30040 |
US $12.67 |
||
|
52281A
|
52281A
52281-30010 Cushion, Differential Support Member[08.1983 - 06.1984] MS123 |
52281-30010 |
US $48.48 |
||
|
52281A
|
52281A
52281-30020 Cushion, Differential Support Member[06.1984 - 08.1987] MS123,125 |
52281-30020 |
US $48.63 |
||
|
52282A
|
52282A
52282-30010 Stopper, Differential Support Member, Upper[08.1983 - 06.1984] MS123 |
52282-30010 |
US $13.54 |
||
|
52282A
|
52282A
52282-30020 Stopper, Differential Support Member, Upper[06.1984 - 08.1987] MS123,125 |
52282-30020 |
US $13.54 |
||
|
52283A
|
52283A
52283-30010 Stopper, Differential Support Member, Lower[08.1983 - 08.1987] MS123,125 |
52283-30010 |
US $17.33 |
||
|
52291A
|
52291A
52291-30020 Cushion, Differential Support Member, Rear[08.1983 - 05.1986] MS123,125 |
52291-30020 |
US $90.27 |
||
|
57209
|
57209
51022-30070 Member Sub-Assy, Engine Rear Support[08.1983 - 08.1987] MS12#..ATM |
51022-30070 |
US $123.76 |
||
|
9010912021
|
9010912021
90109-12021 New Genuine Part |
90109-12021 |
US $9.17 |
||
| replacement | |||||
|
9010912021
|
9010912021
90109-12052 New Genuine Part |
90109-12052 |
US $8.30 |
||
|
9011912050
|
9011912050
90119-12050 New Genuine Part |
90119-12050 |
US $3.49 |
||
|
9011912051
|
9011912051
90119-12051 New Genuine Part |
90119-12051 |
US $3.49 |
||
|
9011912060
|
9011912060
90119-12060 New Genuine Part |
90119-12060 |
US $3.35 |
||
| replacement | |||||
|
9011912060
|
9011912060
91642-81225 New Genuine Part |
91642-81225 |
US $4.16 |
||
|
9015960198
|
9015960198
90159-60198 New Genuine Part |
90159-60198 |
US $0.52 |
||
|
9017912017
|
9017912017
90179-12017
New Genuine Part
|
90179-12017 |
— | ||
|
9018306065
|
9018306065
90183-06065 NUTSPRG |
90183-06065 |
US $1.76 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9033399001
|
9033399001
90333-99001 New Genuine Part |
90333-99001 |
US $5.39 |
||
|
9095001411
|
9095001411
90950-01411 New Genuine Part |
90950-01411 |
US $3.20 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.08 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9165161030
|
9165161030
91651-61030 Bolt (For Transfer Case) |
91651-61030 |
from US $1.48 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165560825
|
9165560825
91655-60825 Bolt, Radiator Side Support Plate |
91655-60825 |
US $2.18 |
||
| replacement | |||||
|
9165560825
|
9165560825
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9165560830
|
9165560830
91655-60830
New Genuine Part
|
91655-60830 |
— | ||
| replacement | |||||
|
9165560830
|
9165560830
91651-60828 Bolt |
91651-60828 |
from US $1.89 |
||
