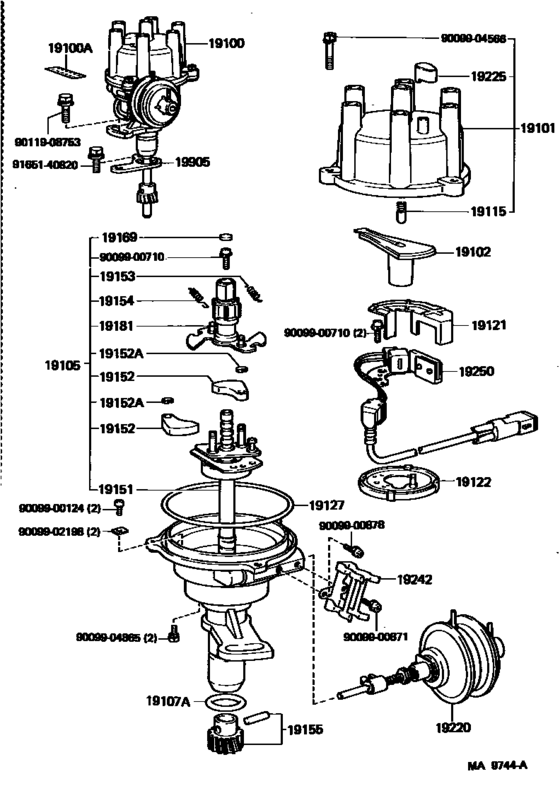

Distributor ([09.1987 - 08.1989] (8709-8908)MP) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- MS130
- grade
- DLX
- body
- SED
- ENGINE
- MP
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- Body Shape
- NOB
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-41260 Distributor Assy[09.1987 - 08.1989] MP..MS130 |
19100-41260 |
US $914.37 |
||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[09.1987 - 10.1991] 1JZGE..JZS13#; 3YP#..YS130; 1GE,1GFE,1GG#..GS13#; 7MGE,MP..MS13# |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[09.1987 - 10.1991] 1JZGE..JZS13#; 3YP#..YS130; 1GE,1GFE,1GG#..GS13#; 7MGE,MP..MS13# |
90919-24003 |
— | ||
|
19101
|
19101
19101-45191 Cap Sub-Assy, Distributor[09.1987 - 08.1989] MP..MS130 |
19101-45191 |
US $45.86 |
||
|
19102
|
19102
19102-41220 Rotor Sub-Assy, Distributor[09.1987 - 08.1989] MP..MS130 |
19102-41220 |
US $13.25 |
||
| replacement | |||||
|
19102
|
19102
19102-45191
Rotor Sub-Assy, Distributor
[09.1987 - 08.1989] MP..MS130 |
19102-45191 |
— | ||
|
19105
|
19105
19105-41260 Governor Sub-Assy[09.1987 - 08.1989] MP..MS130 |
19105-41260 |
US $199.47 |
||
|
19107A
|
19107A
90099-14018
Ring, O, Distributor Housing
[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE,MP..MS13# |
90099-14018 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE,MP..MS13# |
90099-14088 |
from US $2.50 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE,MP..MS13# |
19115-50010 |
— | ||
|
19121
|
19121
19121-38210
Cover, Dust Proof
[09.1987 - 08.1989] MP..MS130 |
19121-38210 |
— | ||
|
19122
|
19122
19122-45070
Plate, Stationary, Distributor
[09.1987 - 08.1989] MP..MS130 |
19122-45070 |
— | ||
|
19127
|
19127
19127-45190
Packing, Dust Proof
[09.1987 - 08.1989] MP..MS130 |
19127-45190 |
— | ||
|
19151
|
19151
19151-41250 Shaft, Governor[09.1987 - 08.1989] MP..MS130 |
19151-41250 |
US $78.62 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[09.1987 - 08.1989] MP..MS130 |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[09.1987 - 08.1989] MP..MS130 |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[09.1987 - 08.1989] MP..MS130 |
90099-07109 |
— | ||
|
19153
|
19153
19153-41260 Spring, Governor, A[09.1987 - 08.1989] MP..MS130 |
19153-41260 |
US $5.53 |
||
|
19154
|
19154
19154-41260 Spring, Governor, B[09.1987 - 08.1989] MP..MS130 |
19154-41260 |
US $5.53 |
||
|
19155
|
19155
19195-45190 Gear, Spiral, Distributor[09.1987 - 08.1989] MP..MS130 |
19195-45190 |
US $42.95 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[09.1987 - 10.1991] MP..MS130; 3YP..YS130; 1GE..GS136;1GGP..GS130 |
19169-63011 |
— | ||
|
19181
|
19181
19181-41260
Rotor, Distributor, Signal
[09.1987 - 08.1989] MP..MS130 |
19181-41260 |
— | ||
|
19220
|
19220
19220-41220 Advancer Assy, Vacuum, Distributor[09.1987 - 08.1989] MP..MS130 |
19220-41220 |
US $91.73 |
||
|
19225
|
19225
19225-41140 Cap, Rubber[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE,MP..MS13# |
19225-41140 |
US $2.91 |
||
|
19242
|
19242
19242-88272 Clamp, Cord[09.1987 - 08.1989] MP..MS130 |
19242-88272 |
US $11.50 |
||
|
19250
|
19250
19250-41260 Generator Assy, Signal[09.1987 - 08.1989] MP..MS130 |
19250-41260 |
US $170.35 |
||
|
19905
|
19905
19955-45020 Clamp Sub-Assy, Distributor[09.1987 - 08.1989] MP..MS130 |
19955-45020 |
US $53.14 |
||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9009904865
|
9009904865
90099-04865
New Genuine Part
|
90099-04865 |
— | ||
|
9011908753
|
9011908753
90119-08753 Bolt, W/washer(For Repair Actuator Set) |
90119-08753 |
US $1.89 |
||
| replacement | |||||
|
9011908753
|
9011908753
90119-08770 Bolt, W/washer(For Repair Actuator Set) |
90119-08770 |
US $2.40 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
