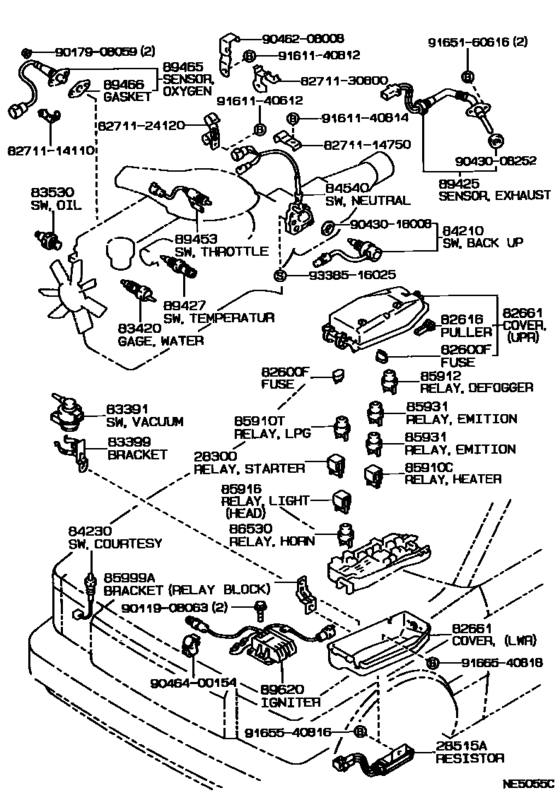

Switch & Relay & Computer ([09.1987 - 08.1989] (8709-8908)MS130) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- MS130
- grade
- DLX
- body
- SED
- ENGINE
- MP
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- Body Shape
- NOB
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-16010
Relay Assy, Starter
[09.1987 - 08.1989] 1GE,1GFE..GS131;1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SAL EX,SDX,SPE,STD |
28300-16010 |
— | ||
|
28515A
|
28515A
28515-73010 Resistor, Solenoid[09.1987 - 10.1991] 1GGP,MP,3YP..GS130,MS130,YS130 |
28515-73010 |
US $71.49 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[09.1987 - 08.1989] GS13#,LS13#,MS13#,YS130 １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[09.1987 - 12.1989] GS13#,LS13#,MS13#,UZS131,YS130 ７．５Ａ |
90982-09005 |
from US $0.99 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
82616-12010 |
from US $3.04 |
||
|
82661
|
82661
82662-30030 Cover, Relay Block, No.1[09.1987 - 08.1989] MS130,YS130 UPPER |
82662-30030 |
US $62.03 |
||
|
82661
|
82661
82663-30010 Cover, Relay Block, No.1[09.1987 - 10.1991] GS130,MS130,YS130..LPEFI,LPG,TWLPG LOWER |
82663-30010 |
US $115.02 |
||
|
83391
|
83391
83391-12210 Switch, Vacuum[09.1987 - 10.1991] GS130..TWLPG NO.1(80FB); MS130 |
83391-12210 |
US $59.75 |
||
|
83399
|
83399
83399-30050 Bracket, Vacuum Switch[09.1987 - 08.1989] MS130,YS130 |
83399-30050 |
US $5.24 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,YS130 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[09.1987 - 09.1988] MS13# |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[09.1987 - 09.1988] MS13# |
83530-60050 |
from US $30.54 |
||
|
84230
|
84230
84231-30060 Switch Assy, Courtesy Lamp (For Engine Room)[09.1987 - 10.1991] GS130,MS130,YS130..LPEFI,LPG,TWLPG; LS130..4H..STD |
84231-30060 |
US $14.56 |
||
|
84540
|
84540
84540-14130 Switch Assy, Neutral Start[09.1987 -] GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC,TWLPG) |
84540-14130 |
US $334.88 |
||
| replacement | |||||
|
84540
|
84540
84540-22171
Switch Assy, Neutral Start
[09.1987 -] GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC,TWLPG) |
84540-22171 |
— | ||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
90987-04002 |
from US $25.27 |
||
|
85910T
|
85910T
90987-02004 Relay Assy, Starter[09.1987 - 08.1989] MS130,YS130 |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
85910T
|
85910T
909870200483 [09.1987 - 08.1989] MS130,YS130 |
909870200483 |
US $53.75 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[09.1987 - 10.1991] GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
85912
|
85912
909870200483 [09.1987 - 10.1991] GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[09.1987 - 08.1989] GS13#,LS13#,MS13#,YS130 TAIL LAMP; GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL CORNERING; GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS13#..ROY ,ROYG,SALEX,SDX,SPE,SSL FRONT FOG LAMP |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
85916
|
85916
909870200483 [09.1987 - 08.1989] GS13#,LS13#,MS13#,YS130 TAIL LAMP; GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL CORNERING; GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS13#..ROY ,ROYG,SALEX,SDX,SPE,SSL FRONT FOG LAMP |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-02006 Relay[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85931
|
85931
90987-02004 Relay Assy, Starter[09.1987 - 08.1989] MS130 |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
85931
|
85931
909870200483 [09.1987 - 08.1989] MS130 |
909870200483 |
US $53.75 |
||
|
85999A
|
85999A
85999-30250 Bracket, Relay, No.2[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
85999-30250 |
US $12.38 |
||
|
85999A
|
85999A
85999-30260 Bracket, Relay, No.2[09.1987 - 08.1989] GS13#,LS13#,MS13#,YS130 RH COWL SIDE LOWER |
85999-30260 |
US $12.52 |
||
|
85999A
|
85999A
85999-30280 Bracket, Relay, No.2[09.1987 - 03.1990] GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
85999-30280 |
US $68.72 |
||
| replacement | |||||
|
85999A
|
85999A
85999-30281 Bracket, Relay, No.2[09.1987 - 03.1990] GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
85999-30281 |
US $68.43 |
||
|
85999A
|
85999A
85999-30290 Bracket, Relay, No.2[09.1987 - 08.1988] GS13#,LS130,MS130,YS130..DSL,EFI,LPG,TD,TDE E/G RELAY BLOCK |
85999-30290 |
US $5.24 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
86530
|
86530
909870200483 [09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
909870200483 |
US $53.75 |
||
|
89425
|
89425
89425-39145 Sensor, Exhaust Gas Temperature[09.1987 - 08.1989] GS136,MS130,YS130 |
89425-39145 |
US $299.94 |
||
|
89427
|
89427
89427-12070 Switch, Temperature Detect[09.1987 - 08.1989] MS130 |
89427-12070 |
US $70.32 |
||
|
89453
|
89453
89453-30010 Switch, Throttle Position (For T.c.s.)[09.1987 - 08.1989] MS130 |
89453-30010 |
US $36.25 |
||
|
89465
|
89465
89465-19066
Sensor, Oxygen
[09.1987 - 08.1989] MS130 |
89465-19066 |
— | ||
| replacement | |||||
|
89465
|
89465
89465-19067 Sensor, Oxygen[09.1987 - 08.1989] MS130 |
89465-19067 |
US $136.86 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 11.1988] MS13#,YS130 |
89466-20020 |
from US $13.88 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[09.1987 - 10.1988] MS13#,YS130 |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[09.1987 - 10.1988] MS13#,YS130 |
89466-20020 |
from US $13.88 |
||
|
89620
|
89620
89620-30180 Igniter Assy[09.1987 - 08.1989] MS130 |
89620-30180 |
US $349.44 |
||
| replacement | |||||
|
89620
|
89620
89620-30200 Igniter Assy[09.1987 - 08.1989] MS130 |
89620-30200 |
US $349.44 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
8271114750
|
8271114750
82711-14750 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14750 |
US $5.10 |
||
|
8271124120
|
8271124120
82711-24120 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24120 |
US $13.10 |
||
|
8271130800
|
8271130800
82711-30800 New Genuine Part |
82711-30800 |
US $5.97 |
||
| replacement | |||||
|
8271130800
|
8271130800
90461-08312 New Genuine Part |
90461-08312 |
US $4.89 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9165540816
|
9165540816
91655-40816 New Genuine Part |
91655-40816 |
US $1.89 |
||
| replacement | |||||
|
9165540816
|
9165540816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9166540818
|
9166540818
91665-40818 New Genuine Part |
91665-40818 |
US $2.18 |
||
| replacement | |||||
|
9166540818
|
9166540818
91661-60814 New Genuine Part |
91661-60814 |
US $1.02 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
