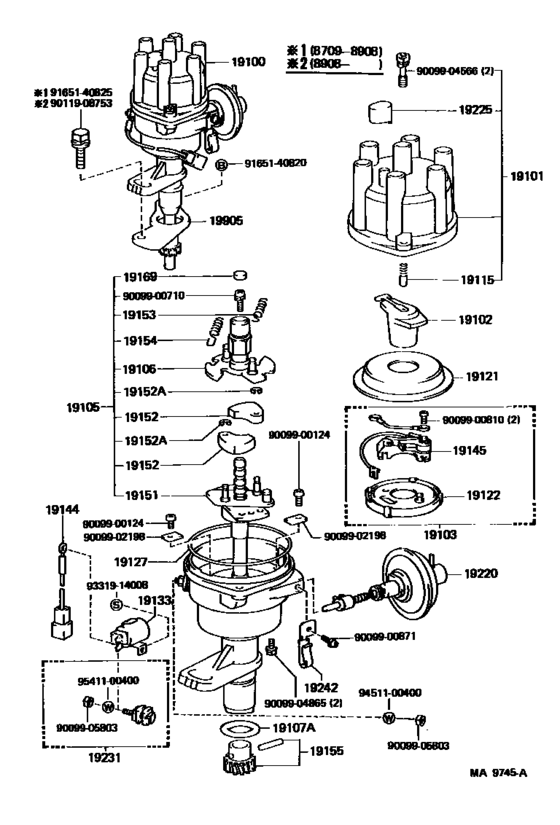

Distributor ([09.1987 - ] (8709- )5M) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- MS132
- grade
- STD
- body
- SED
- ENGINE
- 5M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-43220 Distributor Assy[09.1987 - 10.1991] 5M..MS132..GEN |
19100-43220 |
US $591.14 |
||
|
19101
|
19101
19101-41140 Cap Sub-Assy, DistributorDISTRIBUTOR [09.1987 - 10.1991] 5M#..MS132,133 |
19101-41140 |
US $47.87 |
||
|
19102
|
19102
19102-45150 Rotor Sub-Assy, DistributorDISTRIBUTOR [09.1987 - 10.1991] 5M#..MS132,133 |
19102-45150 |
from US $18.54 |
||
|
19103
|
19103
19103-33013 Breaker Sub-Assy, Distributor[09.1987 - 10.1991] 5M..MS132..GEN |
19103-33013 |
US $58.24 |
||
|
19105
|
19105
19105-43080 Governor Sub-Assy[09.1987 - 10.1991] 5M..MS132..GEN |
19105-43080 |
US $164.53 |
||
|
19106
|
19106
19106-41100 Cam Sub-Assy, DistributorDISTRIBUTOR [09.1987 - 10.1991] 5M..MS132..GEN |
19106-41100 |
US $47.17 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[09.1987 - 08.1989] 4Y..YS132; 5M#,7MGE..MS13# |
19115-50010 |
— | ||
|
19121
|
19121
19121-41140
Cover, Dust Proof
[09.1987 - 10.1991] 5M..MS132..GEN |
19121-41140 |
— | ||
|
19122
|
19122
19122-33013 Plate, Stationary, Distributor[09.1987 - 10.1991] 5M..MS132..GEN |
19122-33013 |
US $27.08 |
||
|
19127
|
19127
19127-41141 Packing, Dust Proof[09.1987 - 10.1991] 5M#..MS132,133 |
19127-41141 |
US $4.37 |
||
|
19133
|
19133
90099-52071
Condenser, Distributor
[09.1987 - 10.1991] 5M..MS132 |
90099-52071 |
— | ||
|
19144
|
19144
19144-43170
Lead, Distributor Breaker
[09.1987 - 08.1989] 5M..MS132 |
19144-43170 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[09.1987 - 10.1991] 4Y..YS132; 5M..MS132 |
19145-26060 |
from US $17.02 |
||
|
19151
|
19151
19151-41200 Shaft, GovernorGOVERNOR [09.1987 - 10.1991] 5M#..MS132,133 |
19151-41200 |
US $67.56 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[09.1987 - 10.1991] 5ME..MS133;5M..MS132..GEN |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[09.1987 - 10.1991] 5ME..MS133;5M..MS132..GEN |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[09.1987 - 10.1991] 5ME..MS133;5M..MS132..GEN |
90099-07109 |
— | ||
|
19153
|
19153
19153-43080 Spring, Governor, AGOVERNOR, A [09.1987 - 10.1991] 5M..MS132..GEN |
19153-43080 |
US $5.39 |
||
|
19154
|
19154
19154-43080 Spring, Governor, BGOVERNOR, B [09.1987 - 10.1991] 5M..MS132..GEN |
19154-43080 |
US $5.39 |
||
|
19155
|
19155
19195-41130 Gear, Spiral, DistributorSPIRAL, DISTRIBUTOR [09.1987 - 08.1989] 5M#..MS132,133 |
19195-41130 |
US $41.93 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[09.1987 - 10.1991] 1GFE..GS131; 5M#..MS132,133; 4Y..YS132 |
19169-63011 |
— | ||
|
19220
|
19220
19220-43080 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [09.1987 - 10.1991] 5M..MS132..GEN |
19220-43080 |
US $48.19 |
||
|
19225
|
19225
19225-41140 Cap, Rubber[09.1987 - 08.1989] 5M#,7MGE..MS13# |
19225-41140 |
US $2.91 |
||
|
19231
|
19231
19231-24140
Terminal, Distributor
[09.1987 - 10.1991] 4Y..YS132; 5M..MS132 |
19231-24140 |
— | ||
|
19242
|
19242
19242-26250 Clamp, Cord[09.1987 - 10.1991] 5M..MS132 |
19242-26250 |
US $2.04 |
||
|
19905
|
19905
19955-45010 Clamp Sub-Assy, DistributorDISTRIBUTOR [09.1987 - 10.1991] 5M#..MS132,133 |
19955-45010 |
US $55.76 |
||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900810
|
9009900810
90099-00810
SCREW
|
90099-00810 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9009904865
|
9009904865
90099-04865
New Genuine Part
|
90099-04865 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9011908753
|
9011908753
90119-08753 Bolt, W/washer(For Repair Actuator Set) |
90119-08753 |
US $1.89 |
||
| replacement | |||||
|
9011908753
|
9011908753
90119-08770 Bolt, W/washer(For Repair Actuator Set) |
90119-08770 |
US $2.40 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9541100400
|
9541100400
95411-00400
New Genuine Part
|
95411-00400 |
— | ||
