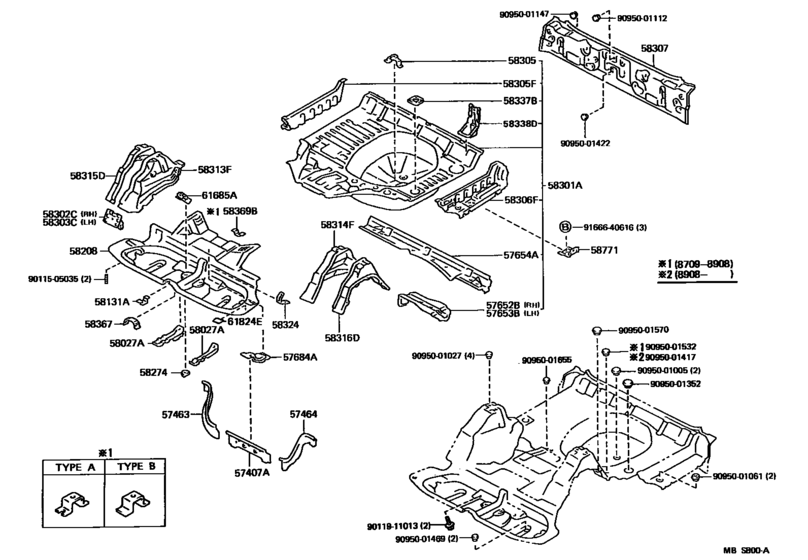

Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,MS133,135) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- MS135
- grade
- ROY
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57407A
|
57407A
57461-30050 Member Sub-Assy, Center Floor Cross[09.1987 - 10.1991] GS131,MS133,135 |
57461-30050 |
US $31.89 |
||
|
57463
|
57463
57463-30030 Member, Center Floor Cross, No.3[09.1987 - 10.1991] GS131,MS133,135 |
57463-30030 |
US $35.53 |
||
|
57464
|
57464
57464-30030 Strength, Center Floor Crossmember[09.1987 - 10.1991] GS131,MS133,135 |
57464-30030 |
US $35.53 |
||
|
57652B
|
57652B
57652-30040 Member, Rear Floor Cross, Front Rh[09.1987 - 05.1991] GS131,MS133,135 |
57652-30040 |
US $115.02 |
||
| replacement | |||||
|
57652B
|
57652B
57652-30041 Member, Rear Floor Cross, Front Rh[09.1987 - 05.1991] GS131,MS133,135 |
57652-30041 |
US $110.66 |
||
|
57652B
|
57652B
57652-30041 Member, Rear Floor Cross, Front Rh[05.1991 - 10.1991] GS131,MS133,135 |
57652-30041 |
US $110.66 |
||
|
57653B
|
57653B
57653-30060 Member, Rear Floor Cross, Front Lh[09.1987 - 10.1991] GS131,MS133,135 |
57653-30060 |
US $115.02 |
||
| replacement | |||||
|
57653B
|
57653B
57653-30061 Member, Rear Floor Cross, Front Lh[09.1987 - 10.1991] GS131,MS133,135 |
57653-30061 |
US $110.66 |
||
|
57654A
|
57654A
57654-30060 Member, Rear Floor Cross, No.3[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED |
57654-30060 |
US $149.97 |
||
|
57684A
|
57684A
57684-30040 Bracket, Fuel Tank Mounting, No.2[09.1987 - 10.1991] GS131,MS133,135 |
57684-30040 |
US $3.35 |
||
|
58027A
|
58027A
58027-30010 Reinforce Sub-Assy, Seat Belt Anchor[09.1987 - 10.1991] GS131,MS133,135 RH |
58027-30010 |
US $71.20 |
||
|
58027A
|
58027A
58028-30080 Reinforce Sub-Assy, Seat Belt Anchor[09.1987 - 10.1991] GS131,MS133,135 LH |
58028-30080 |
US $71.20 |
||
|
58131A
|
58131A
58131-14030
Bracket, Mounting, Floor, No.1
[09.1987 - 10.1991] GS131,MS133,135 |
58131-14030 |
— | ||
|
58208
|
58208
58211-30230 Pan, Center Floor[09.1987 - 10.1991] GS131,MS133,135 |
58211-30230 |
US $381.47 |
||
|
58274
|
58274
58274-30020 Reinforcement, Belt Anchor To Center Floor, No.1[09.1987 - 08.1989] GS131,LS130,MS13#,YS132..HT,SED |
58274-30020 |
US $6.99 |
||
|
58301A
|
58301A
58301-30450 Panel Sub-Assy, Rear Floor[09.1987 - 08.1989] GS131,MS133,135 |
58301-30450 |
US $915.82 |
||
| replacements | |||||
|
58301A
|
58301A
90950-01867 PLUG HOLE[09.1987 - 08.1989] GS131,MS133,135 |
90950-01867 |
from US $2.44 |
||
|
58301A
|
58301A
48960-30020 Valve Assy, Height Control, No.2[09.1987 - 08.1989] GS131,MS133,135 |
48960-30020 |
US $428.06 |
||
|
58301A
|
58301A
58301-30451 Panel Sub-Assy, Rear Floor[09.1987 - 08.1989] GS131,MS133,135 |
58301-30451 |
US $918.74 |
||
|
58301A
|
58301A
88897-30700
Valve, Cooler Magnet
[09.1987 - 08.1989] GS131,MS133,135 |
88897-30700 |
— | ||
|
58301A
|
58301A
90950-01655 New Genuine Part[09.1987 - 08.1989] GS131,MS133,135 |
90950-01655 |
US $8.88 |
||
|
58301A
|
58301A
58301-30451 Panel Sub-Assy, Rear Floor[08.1989 - 10.1991] GS131,MS133,135 |
58301-30451 |
US $918.74 |
||
|
58302C
|
58302C
58302-30030 Bracket Sub-Assy, Rear Absorber, Rh[09.1987 - 10.1991] GS131,MS133,135 |
58302-30030 |
US $24.32 |
||
|
58303C
|
58303C
58303-30060 Bracket Sub-Assy, Rear Absorber, Lh[09.1987 - 10.1991] GS131,MS133,135 |
58303-30060 |
US $24.32 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED |
58305-10011 |
US $4.54 |
||
|
58306F
|
58306F
58306-30110 Panel Sub-Assy, Rear Floor Side, Lh[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED |
58306-30110 |
US $85.90 |
||
|
58307
|
58307
58307-30480 Panel Sub-Assy, Body Lower Back[09.1987 - 10.1991] LS130,MS13#,YS132..SED |
58307-30480 |
US $256.26 |
||
|
58307
|
58307
58307-30490 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [09.1987 - 10.1991] LS130,MS13#,YS132..SED..GEN W(UPPER LIGHTING) |
58307-30490 |
US $256.26 |
||
|
58313F
|
58313F
58313-30090 Extension, Rear Floor Pan To Quarter Panel, Rh[09.1987 - 10.1991] GS131,MS133,135 |
58313-30090 |
US $85.90 |
||
|
58314F
|
58314F
58314-30080 Extension, Rear Floor Pan To Quarter Panel, Lh[09.1987 - 10.1991] GS131,MS133,135 |
58314-30080 |
US $85.90 |
||
|
58315D
|
58315D
58315-30010 Extension, Rear Floor Pan, Rh[09.1987 - 10.1991] GS131,MS133,135 |
58315-30010 |
US $44.70 |
||
|
58316D
|
58316D
58316-30020 Extension, Rear Floor Pan, Lh[09.1987 - 10.1991] GS131,MS133,135 |
58316-30020 |
US $44.70 |
||
|
58324
|
58324
47351-30220 Bracket, Flexible Hose[09.1987 - 10.1991] GS131,MS133,135 |
47351-30220 |
US $9.03 |
||
|
58337B
|
58337B
58337-30060 Reinforcement, No.7 Body Mounting[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED |
58337-30060 |
US $13.69 |
||
|
58338D
|
58338D
58338-30040 Reinforcement, Tail End Body Mounting[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED |
58338-30040 |
US $20.82 |
||
| replacement | |||||
|
58338D
|
58338D
58338-30041 Reinforcement, Tail End Body Mounting[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED |
58338-30041 |
US $21.40 |
||
|
58367
|
58367
58367-30090 Bracket, Fuel Tube Clamp[09.1987 - 10.1991] GS131,MS133,135 |
58367-30090 |
US $5.10 |
||
|
58369B
|
58369B
58369-30040 Bracket, Fuel Tube, No.3[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 TYPE A |
58369-30040 |
US $3.93 |
||
|
58369B
|
58369B
58369-32010 Bracket, Insulator Heat[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 TYPE B |
58369-32010 |
US $3.32 |
||
|
58771
|
58771
58795-30010 Clamp, Jack, No.1[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED |
58795-30010 |
US $24.17 |
||
|
61685A
|
61685A
61685-30030 Bracket, Rear Seat Back Mounting[09.1987 - 01.1991] MS135..4FC;GS131,MS133..SAL,SALEX,STD |
61685-30030 |
US $4.66 |
||
|
61824E
|
61824E
61824-30010 Plate, Noise Control, No.1[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED |
61824-30010 |
US $9.17 |
||
|
9011505035
|
9011505035
90115-05035
New Genuine Part
|
90115-05035 |
— | ||
|
9011911013
|
9011911013
90119-11013 New Genuine Part |
90119-11013 |
US $2.04 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.44 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001112
|
9095001112
90950-01112 Plug, Hole(For Heater Control Cable Hole) |
90950-01112 |
US $1.49 |
||
|
9095001147
|
9095001147
90950-01147
Plug, Hole(For Luggage Compartment Door Panel)
|
90950-01147 |
— | ||
| replacement | |||||
|
9095001147
|
9095001147
90950-01864 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01864 |
US $1.60 |
||
|
9095001352
|
9095001352
90950-01352 New Genuine Part |
90950-01352 |
US $4.32 |
||
|
9095001417
|
9095001417
90950-01417
PLUG
|
90950-01417 |
— | ||
| replacement | |||||
|
9095001417
|
9095001417
90950-01865 PLUG HOLE |
90950-01865 |
from US $1.31 |
||
|
9095001422
|
9095001422
90950-01422 New Genuine Part |
90950-01422 |
US $3.20 |
||
| replacement | |||||
|
9095001422
|
9095001422
90950-01528 New Genuine Part |
90950-01528 |
US $3.93 |
||
|
9095001469
|
9095001469
90950-01469 New Genuine Part |
90950-01469 |
US $3.20 |
||
|
9095001532
|
9095001532
90950-01532 New Genuine Part |
90950-01532 |
US $3.20 |
||
|
9095001570
|
9095001570
90950-01570 Lid, Spare Wheel Carrier, No.1 |
90950-01570 |
US $4.16 |
||
|
9095001655
|
9095001655
90950-01655 New Genuine Part |
90950-01655 |
US $8.88 |
||
|
9166640616
|
9166640616
91666-40616
New Genuine Part
|
91666-40616 |
— | ||
| replacement | |||||
|
9166640616
|
9166640616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
