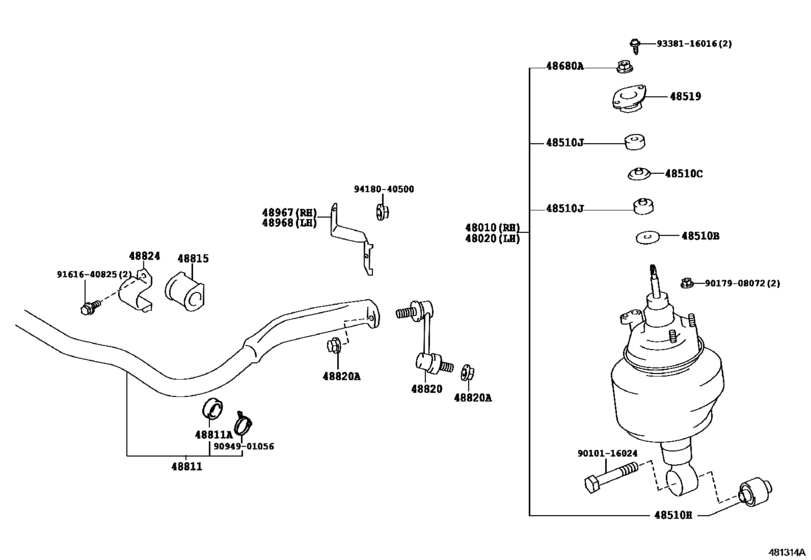

Front Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- MS137
- grade
- ROYG
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48010
|
48010
48010-39015
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[09.1987 - 08.1989] MS137 |
48010-39015 |
— | ||
| replacement | |||||
|
48010
|
48010
48010-39026
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[09.1987 - 08.1989] MS137 |
48010-39026 |
— | ||
|
48010
|
48010
48010-39025
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[08.1989 - 10.1990] MS137,UZS131 |
48010-39025 |
— | ||
| replacement | |||||
|
48010
|
48010
48010-39026
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[08.1989 - 10.1990] MS137,UZS131 |
48010-39026 |
— | ||
|
48010
|
48010
48010-39045
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[10.1990 - 05.1991] MS137,UZS131 |
48010-39045 |
— | ||
| replacement | |||||
|
48010
|
48010
48010-39026
Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
[10.1990 - 05.1991] MS137,UZS131 |
48010-39026 |
— | ||
|
48020
|
48020
48020-39015 Cylinder Assy, Pneumatic, Front Lh W/shock Absorber[09.1987 - 08.1989] MS137 |
48020-39015 |
US $834.29 |
||
| replacement | |||||
|
48020
|
48020
48020-39026
Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
[09.1987 - 08.1989] MS137 |
48020-39026 |
— | ||
|
48020
|
48020
48020-39025
Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
[08.1989 - 10.1990] MS137,UZS131 |
48020-39025 |
— | ||
| replacement | |||||
|
48020
|
48020
48020-39026
Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
[08.1989 - 10.1990] MS137,UZS131 |
48020-39026 |
— | ||
|
48020
|
48020
48020-39045 Cylinder Assy, Pneumatic, Front Lh W/shock Absorber[10.1990 - 05.1991] MS137,UZS131 |
48020-39045 |
US $834.29 |
||
| replacement | |||||
|
48020
|
48020
48020-39026
Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
[10.1990 - 05.1991] MS137,UZS131 |
48020-39026 |
— | ||
|
48510B
|
48510B
90948-02091
Retainer, Cushion, No.1(For Front Shock Absorber)
[09.1987 - 10.1991] GS131..ROY..SPC;JZS131,MS135,137,UZS131 |
90948-02091 |
— | ||
|
48510C
|
48510C
90948-02092
Retainer, Cushion, No.2(For Front Shock Absorber)
[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC |
90948-02092 |
— | ||
|
48510H
|
48510H
90389-16012
Bush(For Front Shock Absorber)
[09.1987 - 10.1991] MS137,UZS131 |
90389-16012 |
— | ||
|
48510J
|
48510J
90948-01033
Cushion, Front Shock Absorber, No.1
[09.1987 - 10.1991] MS137,UZS131 下側; JZS131,MS135..SALEX; GS131..ROY..SPC;JZS131,MS135..ROY,SSL ｱﾘ(TEMS) |
90948-01033 |
— | ||
|
48510J
|
48510J
90948-01034 Cushion, Front Shock Absorber, No.1[09.1987 - 10.1991] MS137,UZS131 上側 |
90948-01034 |
US $2.77 |
||
|
48519
|
48519
48519-30020
Bracket, Actuator Support, Front
[09.1987 - 10.1991] GS131..ROY..SPC;JZS131,MS135,137,UZS131 |
48519-30020 |
— | ||
|
48680A
|
48680A
94187-11200
Nut
[09.1987 - 10.1991] GS131..ROY..SPC;JZS131,MS135,137,UZS131 |
94187-11200 |
— | ||
| replacement | |||||
|
48680A
|
48680A
90177-12002 Nut[09.1987 - 10.1991] GS131..ROY..SPC;JZS131,MS135,137,UZS131 |
90177-12002 |
US $1.44 |
||
|
48811
|
48811
48811-30310 Bar, Stabilizer, Front[09.1987 - 08.1989] GS131,MS135,137;GS130,LS130..WG..ATM; GS130..WG..MTM ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
48811-30310 |
US $168.90 |
||
|
48811
|
48811
48811-30320 Bar, Stabilizer, Front[08.1989 - 10.1991] MS13#,UZS131..ROYG,SALEX; GS131,MS135..ROY..WIB S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
48811-30320 |
US $225.68 |
||
|
48811A
|
48811A
90385-29002 Bush(For Front Stabilizer Bar)[09.1987 - 08.1989] GS130,LS130..WG;GS131,MS135,137 |
90385-29002 |
US $2.77 |
||
|
48815
|
48815
48815-30171
Bush, Front Stabilizer Bar, No.1
[09.1987 - 08.1989] GS131,MS135,137;GS130,LS130..WG..ATM; GS130..WG..MTM ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
48815-30171 |
— | ||
|
48815
|
48815
48815-30230
Bush, Front Stabilizer Bar, No.1
[08.1989 - 10.1991] MS13#,UZS131..ROYG,SALEX; GS131,MS135..ROY..WIB S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
48815-30230 |
— | ||
|
48820
|
48820
48810-30030
Link Assy, Front Stabilizer, Lh
[06.1991 - 10.1991] GS131,136,JZS13#,LS13#,MS13#,UZS131;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC) LH |
48810-30030 |
— | ||
| replacement | |||||
|
48820
|
48820
48820-30020 Link Assy, Front Stabilizer[06.1991 - 10.1991] GS131,136,JZS13#,LS13#,MS13#,UZS131;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC) LH |
48820-30020 |
from US $58.15 |
||
|
48820
|
48820
48820-30010 Link Assy, Front Stabilizer[09.1987 - 06.1991] GS131,136,JZS13#,LS13#,MS135,137,UZS131 右側; GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,HTWC,SPC) 右側 |
48820-30010 |
from US $57.51 |
||
|
48820
|
48820
48820-30020 Link Assy, Front Stabilizer[09.1987 - 06.1991] GS131,136,JZS13#,LS13#,MS135,137,UZS131;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,H TWC,SPC) 左側 |
48820-30020 |
from US $58.15 |
||
|
48820
|
48820
48820-30050 Link Assy, Front Stabilizer[06.1991 - 10.1991] GS130..WG RH; GS130..SED..(DLX,SDX)..HTWC RH; GS131,136,JZS13#,LS13#,MS13#,UZS131 RH |
48820-30050 |
US $77.17 |
||
| replacement | |||||
|
48820
|
48820
48820-30010 Link Assy, Front Stabilizer[06.1991 - 10.1991] GS130..WG RH; GS130..SED..(DLX,SDX)..HTWC RH; GS131,136,JZS13#,LS13#,MS13#,UZS131 RH |
48820-30010 |
from US $57.51 |
||
|
48820A
|
48820A
90179-12047 Nut(For Front Stabilizer Link)[09.1987 - 10.1991] GS130..ATM..(EFI,HTWC,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTW C);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..STD;GS136,LS136;GS130..WG..MTM ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90179-12047 |
from US $1.21 |
||
|
48824
|
48824
48824-30061 Bracket, Stabilizer, Front[09.1987 - 08.1989] LS130..4FC,5F;LS130..4H..DLX;GS13#,LS136,MS13#,YS130; LS130..4H..STD ﾀｸｼ- ｼﾖｳ OR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
48824-30061 |
US $4.95 |
||
|
48967
|
48967
48967-30011 End, Sensor Connecting Rod, No.1[09.1987 - 10.1991] MS137,UZS131 |
48967-30011 |
US $10.19 |
||
|
48968
|
48968
48968-30011 End, Sensor Connecting Rod, No.2[09.1987 - 10.1991] MS137,UZS131 |
48968-30011 |
US $10.19 |
||
|
9010116024
|
9010116024
90101-16024 Bolt(For Front Suspension Lower Arm) |
90101-16024 |
US $9.17 |
||
|
9017908072
|
9017908072
90179-08072 Nut(For Front Lower Arm Bracket Rh) |
90179-08072 |
from US $1.28 |
||
|
9094901056
|
9094901056
90949-01056
New Genuine Part
|
90949-01056 |
— | ||
|
9161640825
|
9161640825
91616-40825
Bolt(For Clutch Master Cylinder Setting)
|
91616-40825 |
— | ||
| replacement | |||||
|
9161640825
|
9161640825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $2.72 |
||
|
9418040500
|
9418040500
94180-40500 Nut, Tilt Roof Housing |
94180-40500 |
US $1.28 |
||
