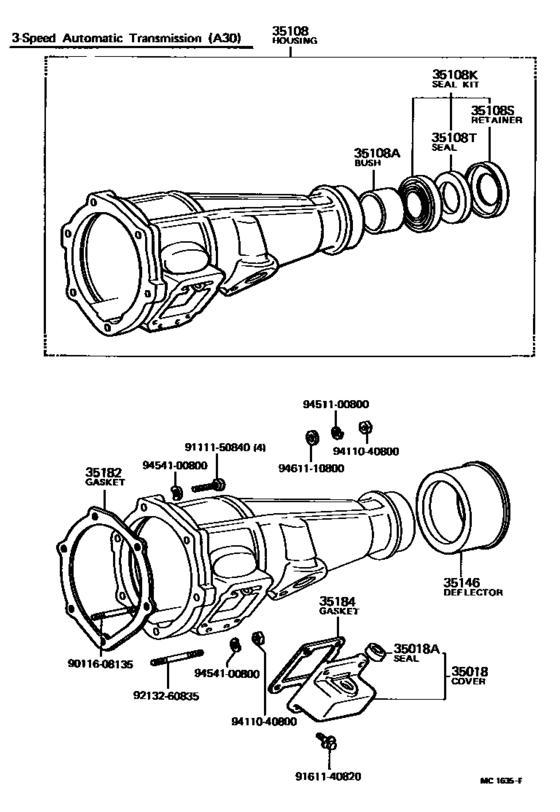

Extension Housing (Atm) ([10.1974 - 11.1976] (7410-7611)ATM) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 12.1974
- To
- 08.1979
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35018
|
35018
35018-30011
Cover Sub-Assy, Extension Housing
[10.1974 - 11.1976] MS83,85,95..ATM |
35018-30011 |
— | ||
|
35018A
|
35018A
90311-10082 Seal, Oil(For Transmission Case)[10.1974 - 11.1976] MS83,85,95..ATM |
90311-10082 |
from US $5.92 |
||
|
35108
|
35108
35108-30050 Housing Sub-Assy, Extension (Atm)EXTENSION (ATM) [10.1974 - 08.1976] MS83,85,95..ATM |
35108-30050 |
US $377.10 |
||
| replacement | |||||
|
35108
|
35108
35108-30051
Housing Sub-Assy, Extension (Atm)
[10.1974 - 08.1976] MS83,85,95..ATM |
35108-30051 |
— | ||
|
35108
|
35108
35108-30051
Housing Sub-Assy, Extension (Atm)
[08.1976 - 11.1976] MS83,85,95..ATM |
35108-30051 |
— | ||
|
35108
|
35108
35108-30080 Housing Sub-Assy, Extension (Atm)EXTENSION (ATM) [11.1976 - 04.1979] MS83,85,95..ATM |
35108-30080 |
US $390.21 |
||
| replacement | |||||
|
35108
|
35108
35108-35040 Housing Sub-Assy, Extension (Atm)[11.1976 - 04.1979] MS83,85,95..ATM |
35108-35040 |
US $375.65 |
||
|
35108
|
35108
35108-30090 Housing Sub-Assy, Extension (Atm)EXTENSION (ATM) [04.1979 - 08.1979] MS83,85,95..ATM |
35108-30090 |
US $390.21 |
||
| replacement | |||||
|
35108
|
35108
35108-35040 Housing Sub-Assy, Extension (Atm)[04.1979 - 08.1979] MS83,85,95..ATM |
35108-35040 |
US $375.65 |
||
|
35108A
|
35108A
90999-73035 Bush, Bimetal Formed (For Atm Extension Housing)[10.1974 - 11.1976] MS83,85,95..ATM |
90999-73035 |
US $22.86 |
||
|
35108K
|
35108K
04332-30020
Seal Kit, Oil(For Automatic Extention Housing)
[10.1974 - 08.1979] MS83,85,95..ATM |
04332-30020 |
— | ||
| replacement | |||||
|
35108K
|
35108K
04332-30030 Seal Kit, Oil(For Automatic Extention Housing)[10.1974 - 08.1979] MS83,85,95..ATM |
04332-30030 |
from US $11.68 |
||
|
35108S
|
35108S
33145-30010 Retainer, Extension Housing Dust Seal(Mtm)[10.1974 - 08.1979] MS83,85,95..ATM |
33145-30010 |
from US $2.55 |
||
|
35108T
|
35108T
90303-38010 Seal, Dust(For Manual Transmission Extension Housing)[10.1974 - 08.1979] MS83,85,95..ATM |
90303-38010 |
from US $1.91 |
||
|
35146
|
35146
33146-30010
Deflector, Extension Housing Dust(Mtm)
[10.1974 - 08.1979] MS83,85,95..ATM |
33146-30010 |
— | ||
| replacement | |||||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[10.1974 - 08.1979] MS83,85,95..ATM |
33146-30020 |
from US $15.84 |
||
|
35182
|
35182
35182-22010
Gasket, Extension Housing (Atm)
[11.1976 - 08.1979] MS83,85,95..ATM |
35182-22010 |
— | ||
| replacement | |||||
|
35182
|
35182
35182-28010 Gasket, Extension Housing (Atm)[11.1976 - 08.1979] MS83,85,95..ATM |
35182-28010 |
from US $7.92 |
||
|
35182
|
35182
35182-30021
Gasket, Extension Housing (Atm)
[10.1974 - 11.1976] MS83,85,95..ATM |
35182-30021 |
— | ||
|
35184
|
35184
35184-30011
Gasket, Extension Housing Cover
[10.1974 - 11.1976] MS83,85,95..ATM |
35184-30011 |
— | ||
|
9011608135
|
9011608135
90116-08135
New Genuine Part
|
90116-08135 |
— | ||
|
9111150840
|
9111150840
91111-50840 New Genuine Part |
91111-50840 |
US $2.91 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9213260835
|
9213260835
92132-60835
Bolt, Stud(For Head To Camshaft Bearing Cap)
|
92132-60835 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9454100800
|
9454100800
94541-00800 New Genuine Part |
94541-00800 |
US $1.60 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.96 |
||
