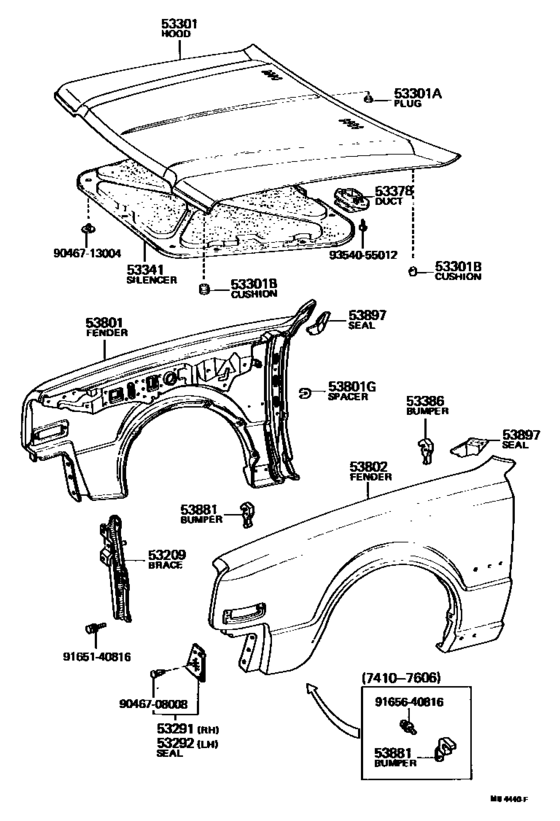

Hood & Front Fender ([10.1974 - 02.1978] (7410-7802)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53209
|
53209
53209-30030
Brace Sub-Assy, Hood Lock
[10.1974 - 11.1976] MS8#,95,RS80 |
53209-30030 |
— | ||
|
53209
|
53209
53209-30031
Brace Sub-Assy, Hood Lock
[11.1976 - 02.1978] MS8#,95,RS80 |
53209-30031 |
— | ||
|
53209
|
53209
53217-30022
Brace Sub-Assy, Hood Lock
[02.1978 - 08.1979] MS8#,95,RS80 |
53217-30022 |
— | ||
|
53291
|
53291
53291-30010
Seal, Radiator Support To Frame, Rh
[10.1974 - 08.1979] MS8#,95,RS80 |
53291-30010 |
— | ||
|
53292
|
53292
53292-30010
Seal, Radiator Support To Frame, Lh
[10.1974 - 08.1979] MS8#,95,RS80 |
53292-30010 |
— | ||
|
53301
|
53301
53301-30040
Hood Sub-Assy
[10.1974 - 11.1976] MS8#,95,RS80 |
53301-30040 |
— | ||
|
53301
|
53301
53301-30041
Hood Sub-Assy
[11.1976 - 02.1978] MS8#,95,RS80 |
53301-30041 |
— | ||
|
53301
|
53301
53301-30042
Hood Sub-Assy
[02.1978 - 08.1979] MS8#,95,RS80 |
53301-30042 |
— | ||
|
53301A
|
53301A
90950-01013 Plug, Hole, No.2(For Dash Panel)[02.1978 - 08.1979] MS8#,95,RS80 OD=12 |
90950-01013 |
US $4.73 |
||
|
53301A
|
53301A
90950-01181 Plug, Hole(For Front Fender Apron)[10.1974 - 03.1975] MS8#,95,RS80 OD=9 |
90950-01181 |
US $3.52 |
||
|
53301B
|
53301B
90541-09006 Cushion, Front Door Panel[02.1978 - 08.1979] MS8#,95,RS80 OD=9 |
90541-09006 |
from US $1.76 |
||
|
53301B
|
53301B
90541-09070
Cushion(For Body Lower Back Panel Center Moulding)
[10.1974 - 01.1975] MS85,95,RS80 OD=9 |
90541-09070 |
— | ||
|
53301B
|
53301B
90541-09126 Cushion, No.1[01.1975 - 02.1978] MS8#,95,RS80 OD=9 |
90541-09126 |
US $2.08 |
||
|
53301B
|
53301B
90541-15001 Cushion, Radiator SupportHOOD BUMPER [10.1976 - 02.1978] MS8#,95,RS80 OD=15 |
90541-15001 |
US $8.15 |
||
| replacement | |||||
|
53301B
|
53301B
90541-15111 Cushion, Radiator Support[10.1976 - 02.1978] MS8#,95,RS80 OD=15 |
90541-15111 |
from US $2.20 |
||
|
53301B
|
53301B
90541-15002 Cushion, Hood BumperHOOD BUMPER [02.1978 - 08.1979] MS8#,95,RS80 OD=15 |
90541-15002 |
US $7.72 |
||
| replacement | |||||
|
53301B
|
53301B
90541-15111 Cushion, Radiator Support[02.1978 - 08.1979] MS8#,95,RS80 OD=15 |
90541-15111 |
from US $2.20 |
||
|
53301B
|
53301B
90541-15111 Cushion, Radiator Support[10.1974 - 10.1976] MS8#,95,RS80 OD=15 |
90541-15111 |
from US $2.20 |
||
|
53341
|
53341
53341-30040
Silencer, Hood, No.1
[10.1974 - 11.1976] MS83,85,95..DLX,ROY,SAL |
53341-30040 |
— | ||
|
53378
|
53378
53378-30010
Duct, Hood Air Intake
[10.1974 - 07.1976] MS8#,95,RS80 |
53378-30010 |
— | ||
|
53386
|
53386
53382-30050 Bumper, Hood, RearHOOD, REAR [10.1974 - 02.1978] MS8#,95,RS80 |
53382-30050 |
US $7.57 |
||
|
53386
|
53386
53382-30051 Bumper, Hood, RearHOOD, REAR [02.1978 - 08.1979] MS8#,95,RS80 |
53382-30051 |
US $7.57 |
||
|
53801
|
53801
53801-30330
Fender Sub-Assy, Front Rh
[10.1974 - 02.1978] MS8#,95,RS80..GEN W/MIRROR HOLE |
53801-30330 |
— | ||
|
53801
|
53801
53801-30360
Fender Sub-Assy, Front Rh
[10.1974 - 02.1978] MS8#,95,RS80 L/MIRROR HOLE |
53801-30360 |
— | ||
|
53801
|
53801
53801-30361
Fender Sub-Assy, Front Rh
[02.1978 - 08.1979] MS8#,95,RS80..BTP,DLX,STD L/MIRROR HOLE |
53801-30361 |
— | ||
|
53801G
|
53801G
53878-30010 Spacer, Front Fender To Cowl Panel[10.1974 - 08.1979] MS8#,95,RS80 |
53878-30010 |
US $8.59 |
||
|
53802
|
53802
53802-30300
Fender Sub-Assy, Front Lh
[10.1974 - 02.1978] MS8#,95,RS80..GEN W/MIRROR HOLE |
53802-30300 |
— | ||
|
53802
|
53802
53802-30330
Fender Sub-Assy, Front Lh
[10.1974 - 02.1978] MS8#,95,RS80 L/MIRROR HOLE |
53802-30330 |
— | ||
|
53802
|
53802
53802-30331
Fender Sub-Assy, Front Lh
[02.1978 - 08.1979] MS8#,95,RS80..BTP,DLX,STD L/MIRROR HOLE |
53802-30331 |
— | ||
|
53881
|
53881
53382-30050 Bumper, Hood, RearHOOD, REAR [06.1976 - 02.1978] MS8#,95,RS80 |
53382-30050 |
US $7.57 |
||
|
53881
|
53881
53382-30051 Bumper, Hood, RearHOOD, REAR [02.1978 - 08.1979] MS8#,95,RS80 |
53382-30051 |
US $7.57 |
||
|
53881
|
53881
53384-30020
Bumper, Fender To Hood
[10.1974 - 06.1976] MS8#,95,RS80 |
53384-30020 |
— | ||
|
53897
|
53897
53897-30010 Seal, Front Fender To CowlFRONT FENDER TO COWL [10.1974 - 08.1979] MS8#,95,RS80 RH. |
53897-30010 |
US $13.54 |
||
|
53897
|
53897
53898-30010 Seal, Front Fender To CowlFRONT FENDER TO COWL [10.1974 - 08.1979] MS8#,95,RS80 LH. |
53898-30010 |
US $13.54 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9046713004
|
9046713004
90467-13004 Clip(For Hood Insulator) |
90467-13004 |
US $2.18 |
||
| replacement | |||||
|
9046713004
|
9046713004
90467-13009 Clip(For Hood Insulator) |
90467-13009 |
US $2.33 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $0.96 |
||
