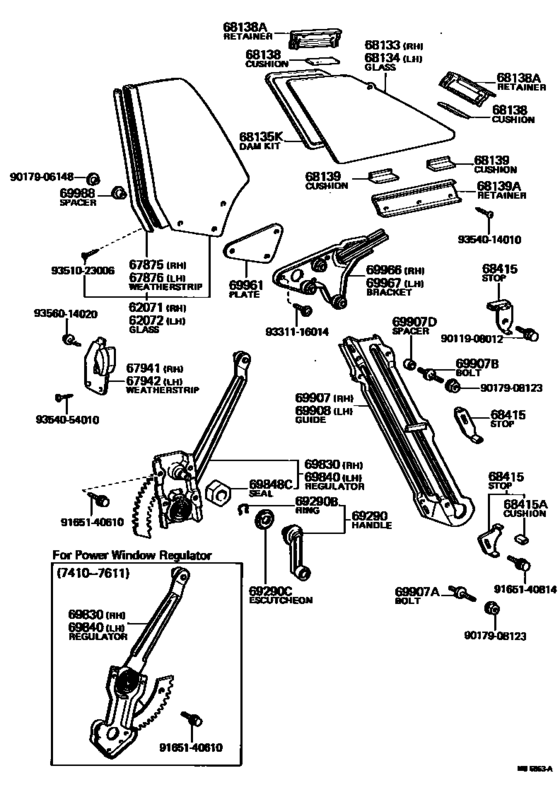

Quarter Window ([10.1974 - 08.1979] (7410-7908)2D) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62071
|
62071
62071-30010
Glass Sub-Assy, Quarter, Rh
[10.1974 - 08.1979] MS95..2D |
62071-30010 |
— | ||
|
62072
|
62072
62072-30010 Glass Sub-Assy, Quarter, LhQUARTER, LH [10.1974 - 08.1979] MS95..2D |
62072-30010 |
US $205.30 |
||
|
67875
|
67875
67081-30030
Weatherstrip, Rear Quarter Window Glass, Rh
[10.1974 - 08.1979] MS95..2D |
67081-30030 |
— | ||
|
67876
|
67876
67082-30030
Weatherstrip, Rear Quarter Window Glass, Lh
[10.1974 - 08.1979] MS95..2D |
67082-30030 |
— | ||
|
67941
|
67941
67941-30030
Weatherstrip, Quarter Lock Pillar, Rh
[10.1974 - 08.1979] MS95..2D |
67941-30030 |
— | ||
|
67942
|
67942
67942-30030
Weatherstrip, Quarter Lock Pillar, Lh
[10.1974 - 08.1979] MS95..2D |
67942-30030 |
— | ||
|
68133
|
68133
68133-30010
Glass, Quarter Window, No.2 Rh
[10.1974 - 08.1979] MS95..2D TN.TP.T=4.0 |
68133-30010 |
— | ||
|
68134
|
68134
68134-30010
Glass, Quarter Window, No.2 Lh
[10.1974 - 08.1979] MS95..2D TN.TP.T=4.0 |
68134-30010 |
— | ||
|
68135K
|
68135K
04681-30010 Dam Kit, Quarter Window No.2 GlassQUARTER WINDOW NO.2 GLASS [10.1974 - 08.1979] MS95..2D |
04681-30010 |
US $22.57 |
||
| replacement | |||||
|
68135K
|
68135K
04681-30020 Dam Kit, Quarter Window No.2 Glass[10.1974 - 08.1979] MS95..2D |
04681-30020 |
US $24.46 |
||
|
68138
|
68138
68138-30010
Cushion, Quarter Window, No.2 Upper
[10.1974 - 08.1979] MS95..2D |
68138-30010 |
— | ||
|
68138A
|
68138A
68144-30020
Retainer, Quarter Window, No.2 Upper
[10.1974 - 08.1979] MS95..2D |
68144-30020 |
— | ||
|
68139
|
68139
68139-30010
Cushion, Quarter Window, No.2 Lower
[10.1974 - 08.1979] MS95..2D |
68139-30010 |
— | ||
|
68139A
|
68139A
68145-30020
Retainer, Quarter Window, No.2 Lower
[10.1974 - 08.1979] MS95..2D |
68145-30020 |
— | ||
|
68415
|
68415
67215-30040
Stopper, Rear Quarter Glass, Upper
[10.1974 - 08.1979] MS95..2D UPPER,FRONT |
67215-30040 |
— | ||
|
68415
|
68415
67216-30031
Stopper, Rear Quarter Glass, Upper
[10.1974 - 08.1979] MS95..2D UPPER,REAR |
67216-30031 |
— | ||
|
68415
|
68415
69893-14020
Stopper, Rear Quarter Glass, Upper
[10.1974 - 08.1979] MS95..2D LOWER,RH. |
69893-14020 |
— | ||
|
68415
|
68415
69894-14010
Stopper, Rear Quarter Glass, Upper
[10.1974 - 08.1979] MS95..2D LOWER,LH. |
69894-14010 |
— | ||
|
68415A
|
68415A
69892-14020
Cushion,quarter Window Glass Stopper
[10.1974 - 08.1979] MS95..2D |
69892-14020 |
— | ||
|
69290
|
69290
69260-22020-01
Handle Assy, Front Door Window Regulator
[11.1976 - 02.1978] MS95..2D BLACK,BLACK |
69260-22020-01 |
— | ||
|
69290
|
69290
69260-22020-05
Handle Assy, Front Door Window Regulator
[02.1978 - 08.1979] MS95..2D BEIGE,BEIGE |
69260-22020-05 |
— | ||
| replacement | |||||
|
69290
|
69290
69260-14030-C0 Handle Assy, Rear Door Window Regulator (BLACK)[02.1978 - 08.1979] MS95..2D BEIGE,BEIGE |
69260-14030-C0 |
US $14.50 |
||
|
69290B
|
69290B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[11.1976 - 08.1979] MS95..2D |
90520-01002 |
— | ||
| replacement | |||||
|
69290B
|
69290B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[11.1976 - 08.1979] MS95..2D |
90520-01274 |
from US $0.99 |
||
|
69290C
|
69290C
69272-30010
Escutcheon, Door Regulator Handle(For Front Door)
[11.1976 - 08.1979] MS95..2D |
69272-30010 |
— | ||
| replacement | |||||
|
69290C
|
69290C
69272-30010-08 Escutcheon, Door Regulator Handle(For Front Door)[11.1976 - 08.1979] MS95..2D |
69272-30010-08 |
US $2.24 |
||
|
69830
|
69830
69803-30100
Regulator Assy, Rear Quarter Window, Rh
[10.1974 - 11.1976] MS95..2D FOR POWER WINDOW |
69803-30100 |
— | ||
|
69830
|
69830
69830-30071
Regulator Assy, Rear Quarter Window, Rh
[11.1976 - 08.1979] MS95..2D |
69830-30071 |
— | ||
|
69840
|
69840
69804-30100
Regulator Assy, Rear Quarter Window, Lh
[10.1974 - 11.1976] MS95..2D FOR POWER WINDOW |
69804-30100 |
— | ||
|
69840
|
69840
69840-30071
Regulator Assy, Rear Quarter Window, Lh
[11.1976 - 08.1979] MS95..2D |
69840-30071 |
— | ||
|
69848C
|
69848C
69848-30010
Gasket(For Front Door Window Regulator Handle)
[11.1976 - 12.1976] MS95..2D |
69848-30010 |
— | ||
|
69907
|
69907
67435-30030
Guide Sub-Assy, Quarter Regulator Roller, Rh
[10.1974 - 08.1979] MS95..2D |
67435-30030 |
— | ||
|
69907A
|
69907A
90116-08044 Bolt, Stud, No.2(For Quarter Regulator Roller Guide)[08.1978 - 08.1979] MS95..2D L=30.0 |
90116-08044 |
US $2.91 |
||
|
69907A
|
69907A
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1979] MS95..2D L=24.0 |
90116-08313 |
— | ||
|
69907B
|
69907B
90116-08312
Bolt, Stud, No.2(For Quarter Regulator Roller Guide)
[10.1974 - 08.1979] MS95..2D L=13.5 |
90116-08312 |
— | ||
|
69907B
|
69907B
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1979] MS95..2D L=24.0 |
90116-08313 |
— | ||
|
69907D
|
69907D
90560-08005
Spacer(For Quarter Regulator Roller Guide)
[08.1975 - 08.1979] MS95..2D T=15 |
90560-08005 |
— | ||
|
69907D
|
69907D
90560-08006
Spacer(For Quarter Regulator Roller Guide)
[08.1975 - 08.1979] MS95..2D T=7 |
90560-08006 |
— | ||
|
69908
|
69908
67436-30030
Guide Sub-Assy, Quarter Regulator Roller, Lh
[10.1974 - 08.1979] MS95..2D |
67436-30030 |
— | ||
|
69961
|
69961
69975-30050
Plate, Rear Quarter Glass Bracket
[10.1974 - 08.1979] MS95..2D |
69975-30050 |
— | ||
|
69966
|
69966
69905-30020
Bracket, Rear Quarter Window Glass, Rh
[10.1974 - 08.1979] MS95..2D |
69905-30020 |
— | ||
|
69967
|
69967
69906-30020
Bracket, Rear Quarter Window Glass, Lh
[10.1974 - 08.1979] MS95..2D |
69906-30020 |
— | ||
|
69988
|
69988
69988-30010 Spacer, Quarter Window GlassQUARTER WINDOW GLASS [10.1974 - 08.1979] MS95..2D |
69988-30010 |
US $4.22 |
||
|
9011908012
|
9011908012
90119-08012 New Genuine Part |
90119-08012 |
US $1.46 |
||
| replacement | |||||
|
9011908012
|
9011908012
91651-40812 New Genuine Part |
91651-40812 |
US $1.24 |
||
|
9017906148
|
9017906148
90179-06148 New Genuine Part |
90179-06148 |
US $3.49 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.98 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.88 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9331116014
|
9331116014
93311-16014 Screw |
93311-16014 |
US $1.12 |
||
|
9351023006
|
9351023006
93510-23006 New Genuine Part |
93510-23006 |
US $2.33 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9356014020
|
9356014020
93560-14020 New Genuine Part |
93560-14020 |
US $0.79 |
||
