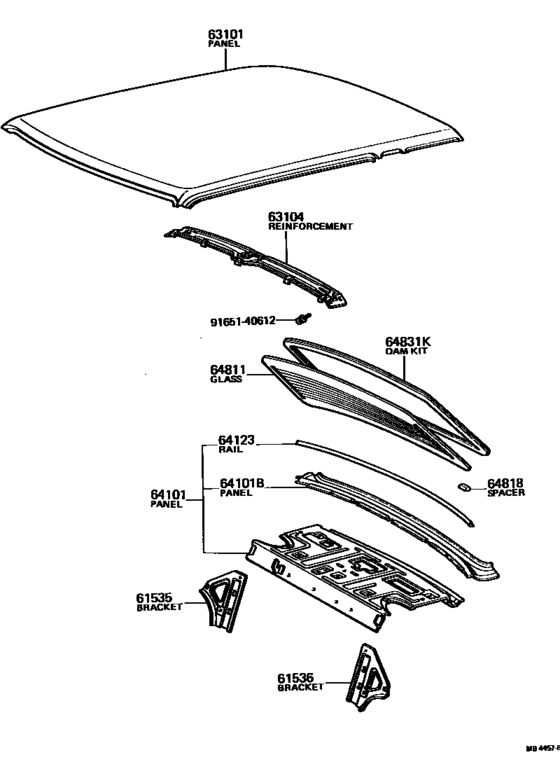

Roof Panel & Back Window Glass ([10.1974 - 08.1979] (7410-7908)MS95) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61535
|
61535
64211-30050
Bracket, Package Tray Mount, Rh
[10.1974 - 08.1979] MS95 |
64211-30050 |
— | ||
|
61536
|
61536
64212-30040
Bracket, Package Tray Mount, Lh
[10.1974 - 08.1979] MS95 |
64212-30040 |
— | ||
|
63101
|
63101
63101-30140
Panel Sub-Assy, Roof
[10.1974 - 08.1979] MS95..2D |
63101-30140 |
— | ||
| replacements | |||||
|
63101
|
63101
63111-30090
Panel, Roof
[10.1974 - 08.1979] MS95..2D |
63111-30090 |
— | ||
|
63101
|
63101
63132-30070
Panel, Windshield Header, Inner
[10.1974 - 08.1979] MS95..2D |
63132-30070 |
— | ||
|
63101
|
63101
63133-30070
Frame, Back Window Opening, Upper
[10.1974 - 08.1979] MS95..2D |
63133-30070 |
— | ||
|
63101
|
63101
63137-30050
Cover, Back Door Opening Upper, Inner
[10.1974 - 08.1979] MS95..2D |
63137-30050 |
— | ||
|
63104
|
63104
63103-30080 Reinforcement Sub-Assy, Roof Panel, CenterROOF PANEL, CENTER [10.1974 - 11.1976] MS95 |
63103-30080 |
US $42.22 |
||
| replacement | |||||
|
63104
|
63104
63103-30100
Reinforcement Sub-Assy, Roof Panel, Center
[10.1974 - 11.1976] MS95 |
63103-30100 |
— | ||
|
63104
|
63104
63103-30081 Reinforcement Sub-Assy, Roof Panel, CenterROOF PANEL, CENTER [11.1976 - 08.1979] MS95 |
63103-30081 |
US $42.22 |
||
| replacement | |||||
|
63104
|
63104
63103-30100
Reinforcement Sub-Assy, Roof Panel, Center
[11.1976 - 08.1979] MS95 |
63103-30100 |
— | ||
|
64101
|
64101
64101-30040
Panel Sub-Assy, Upper Back
[10.1974 - 02.1975] MS95 |
64101-30040 |
— | ||
| replacements | |||||
|
64101
|
64101
64101-30042
Panel Sub-Assy, Upper Back
[10.1974 - 02.1975] MS95 |
64101-30042 |
— | ||
|
64101
|
64101
77606-30051
Protector Sub-Assy, Fuel Tank, No.1
[10.1974 - 02.1975] MS95 |
77606-30051 |
— | ||
|
64101
|
64101
93560-15012 New Genuine Part[10.1974 - 02.1975] MS95 |
93560-15012 |
US $1.12 |
||
|
64101
|
64101
64101-30041 Panel Sub-Assy, Upper BackUPPER BACK [02.1975 - 11.1976] MS95 |
64101-30041 |
US $377.10 |
||
| replacement | |||||
|
64101
|
64101
64101-30042
Panel Sub-Assy, Upper Back
[02.1975 - 11.1976] MS95 |
64101-30042 |
— | ||
|
64101
|
64101
64101-30042
Panel Sub-Assy, Upper Back
[11.1976 - 08.1979] MS95 |
64101-30042 |
— | ||
|
64101B
|
64101B
64111-30130
Panel, Upper Back
[10.1974 - 08.1979] MS95 |
64111-30130 |
— | ||
|
64123
|
64123
64123-30030
Rail, Back Window Opening
[10.1974 - 08.1979] MS95 |
64123-30030 |
— | ||
|
64811
|
64811
64801-30061
Glass, Back Window
[11.1976 - 02.1978] MS95 ELECT.TN.TP.T=4.0,W/ANTENNA |
64801-30061 |
— | ||
|
64811
|
64811
64801-30062
Glass, Back Window
[02.1978 - 08.1979] MS95 ELECT.TN.TP.T=4.0,W/ANTENNA |
64801-30062 |
— | ||
|
64811
|
64811
64801-30090
Glass, Back Window
[10.1974 - 11.1976] MS95 ELECT.TN.TP.T=4.0 |
64801-30090 |
— | ||
| replacement | |||||
|
64811
|
64811
64801-30060 Glass, Back Window[10.1974 - 11.1976] MS95 ELECT.TN.TP.T=4.0 |
64801-30060 |
US $1,036.67 |
||
|
64811
|
64811
64811-30200
Glass, Back Window
[10.1974 - 11.1976] MS95 TN.TP.T=4.0 |
64811-30200 |
— | ||
| replacement | |||||
|
64811
|
64811
64801-30060 Glass, Back Window[10.1974 - 11.1976] MS95 TN.TP.T=4.0 |
64801-30060 |
US $1,036.67 |
||
|
64818
|
64818
64818-30040
Spacer, Windshield Glass
[10.1974 - 08.1979] MS95 |
64818-30040 |
— | ||
|
64831K
|
64831K
04562-30020
Dam Kit, Windshield Glass
[10.1974 - 08.1979] MS85,95,RS80 |
04562-30020 |
— | ||
| replacement | |||||
|
64831K
|
64831K
04562-30040 Dam Kit, Windshield Glass[10.1974 - 08.1979] MS85,95,RS80 |
04562-30040 |
from US $36.33 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
