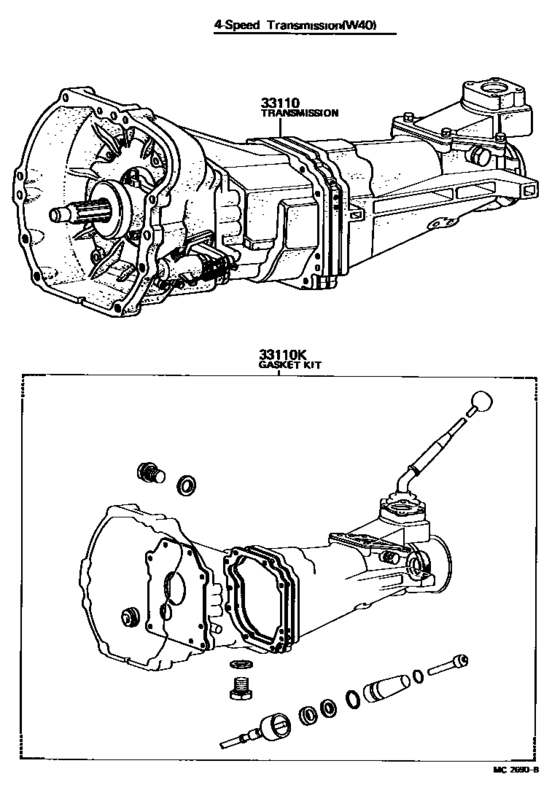

Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([10.1974 - 08.1979] (7410-7908)4F,4H) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33110
|
33110
33020-22071
Transmission Assy, Manual
[10.1974 - 08.1975] MS8#,95..4F SMG.R=19:6 |
33020-22071 |
— | ||
| replacements | |||||
|
33110
|
33110
33403-69026 Gear Sub-Assy, Speedometer Driven (Mtm)[10.1974 - 08.1975] MS8#,95..4F SMG.R=19:6 |
33403-69026 |
US $11.53 |
||
|
33110
|
33110
33030-22430
Transmission Unit Assy, Manual
[10.1974 - 08.1975] MS8#,95..4F SMG.R=19:6 |
33030-22430 |
— | ||
|
33110
|
33110
91611-60814 Bolt[10.1974 - 08.1975] MS8#,95..4F SMG.R=19:6 |
91611-60814 |
from US $1.60 |
||
|
33110
|
33110
33404-30040 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[10.1974 - 08.1975] MS8#,95..4F SMG.R=19:6 |
33404-30040 |
from US $16 |
||
|
33110
|
33110
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[10.1974 - 08.1975] MS8#,95..4F SMG.R=19:6 |
33485-30020 |
US $2.56 |
||
|
33110
|
33110
33030-22280
Transmission Assy, Manual
[02.1978 - 10.1978] MS8#,95..4F |
33030-22280 |
— | ||
|
33110
|
33110
33030-30020 Transmission Assy, ManualMANUAL [08.1975 - 11.1976] MS8#,95..4F |
33030-30020 |
US $2,853.76 |
||
| replacement | |||||
|
33110
|
33110
33030-22280
Transmission Assy, Manual
[08.1975 - 11.1976] MS8#,95..4F |
33030-22280 |
— | ||
|
33110
|
33110
33030-30021 Transmission Assy, ManualMANUAL [11.1976 - 02.1978] MS8#,95..4F |
33030-30021 |
US $2,853.76 |
||
| replacement | |||||
|
33110
|
33110
33030-22280
Transmission Assy, Manual
[11.1976 - 02.1978] MS8#,95..4F |
33030-22280 |
— | ||
|
33110K
|
33110K
04331-22021 Gasket Kit, Manual Transmission OverhaulMANUAL TRANSMISSION OVERHAUL [10.1974 - 08.1979] MS8#,95,RS80..4F,4H |
04331-22021 |
US $44.84 |
||
