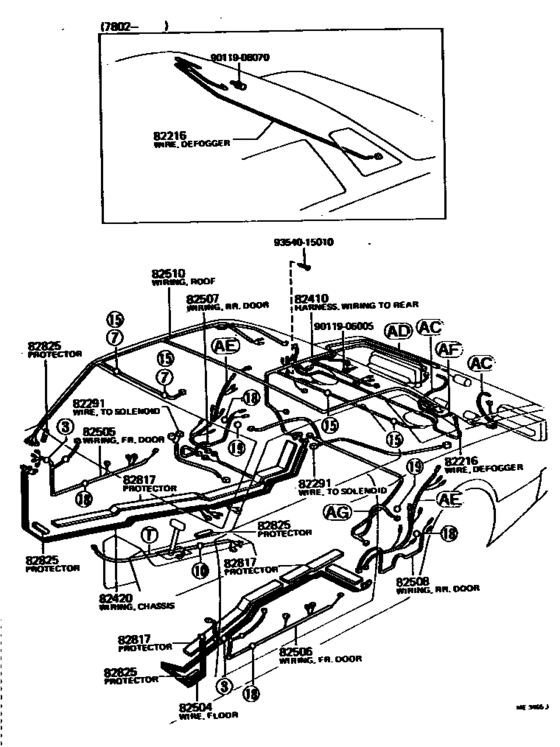

Wiring & Clamp ([10.1974 - 08.1979] (7410-7908)2D) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82216
|
82216
82216-30100
Wire, Rear Window Defogger
[11.1976 - 11.1977] MS85,95..DLX,ROY,SAL DLX=W/RADIO |
82216-30100 |
— | ||
|
82216
|
82216
82216-30101
Wire, Rear Window Defogger
[02.1978 - 09.1978] MS85,95,RS80 RR.WINDOW ANTENNA |
82216-30101 |
— | ||
|
82216
|
82216
82216-30120
Wire, Rear Window Defogger
[02.1978 - 09.1978] MS85,95,RS80..GEN L/RR.WINDOW ANTENNA |
82216-30120 |
— | ||
|
82291
|
82291
82291-30100
Wiring, To Solenoid
[02.1978 - 09.1978] MS95 FUEL LID; MS85..ROY,SAL FUEL LID |
82291-30100 |
— | ||
|
82410
|
82410
82410-30252
Harness Assy, Wiring To Rear Lamp
[11.1976 - 08.1979] MS85,95..DLX,SAL |
82410-30252 |
— | ||
|
82410
|
82410
82410-30280
Harness Assy, Wiring To Rear Lamp
[10.1974 - 12.1975] MS95..2D |
82410-30280 |
— | ||
|
82410
|
82410
82410-30281
Harness Assy, Wiring To Rear Lamp
[12.1975 - 11.1976] MS95..2D |
82410-30281 |
— | ||
|
82420
|
82420
82420-30142
Wiring Assy, Chassis
[02.1978 - 08.1979] MS95..2D; MS85,RS80..BTP |
82420-30142 |
— | ||
|
82420
|
82420
82420-30180
Wiring Assy, Chassis
[10.1974 - 11.1976] MS95..2D |
82420-30180 |
— | ||
|
82420
|
82420
82420-30231
Wiring Assy, Chassis
[11.1976 - 02.1978] MS95..2D |
82420-30231 |
— | ||
|
82504
|
82504
82420-30230
Wire Sub-Assy, Floor
[10.1974 - 08.1979] MS95..2D |
82420-30230 |
— | ||
|
82505
|
82505
82505-30170
Wiring Sub-Assy, Front Door, Rh
[10.1974 - 08.1979] MS95..LHD..2D |
82505-30170 |
— | ||
|
82506
|
82506
82505-30190
Wiring Sub-Assy, Front Door, Rh
[10.1974 - 08.1979] MS95..LHD..2D |
82505-30190 |
— | ||
|
82507
|
82507
82507-30100
Wiring Sub-Assy, Rear Door, Rh
[10.1974 - 11.1976] MS95..2D |
82507-30100 |
— | ||
|
82508
|
82508
82507-30100
Wiring Sub-Assy, Rear Door, Rh
[10.1974 - 11.1976] MS95..2D |
82507-30100 |
— | ||
|
82510
|
82510
82510-30220
Wiring Assy, Roof
[10.1974 - 07.1975] MS95..2D |
82510-30220 |
— | ||
|
82510
|
82510
82510-30261
Wiring Assy, Roof
[11.1976 - 02.1978] MS95..2D |
82510-30261 |
— | ||
|
82510
|
82510
82510-30310
Wiring Assy, Roof
[02.1978 - 08.1979] MS95..2D |
82510-30310 |
— | ||
|
82817
|
82817
82817-22050 Protector, Wiring Harness, No.1WIRING HARNESS, NO.1 [10.1974 - 08.1979] MS8#,95,RS80 L=700,W=120 |
82817-22050 |
US $30.87 |
||
| replacement | |||||
|
82817
|
82817
82817-30140
Protector, Wiring Harness, No.1
[10.1974 - 08.1979] MS8#,95,RS80 L=700,W=120 |
82817-30140 |
— | ||
|
82817
|
82817
82817-30060 Plate, Noise Control, No.3WIRING HARNESS, NO.1 [10.1974 - 08.1979] MS8#,95,RS80 L=350,W=120 |
82817-30060 |
US $12.08 |
||
| replacement | |||||
|
82817
|
82817
82817-30150 Plate, Noise Control, No.3[10.1974 - 08.1979] MS8#,95,RS80 L=350,W=120 |
82817-30150 |
US $12.08 |
||
|
82817
|
82817
82817-30140
Protector, Wiring Harness, No.1
[08.1975 - 08.1979] MS8#,95,RS80 L=700,W=150 |
82817-30140 |
— | ||
|
82817
|
82817
82817-30150 Plate, Noise Control, No.3[08.1975 - 08.1979] MS8#,95,RS80 L=350,W=150 |
82817-30150 |
US $12.08 |
||
|
82825
|
82825
82817-10040
Protector, Wiring Harness
[10.1974 - 08.1979] MS83,85,95..DLX,ROY,SAL L=150 |
82817-10040 |
— | ||
|
82825
|
82825
82817-30090
Protector, Wiring Harness
[10.1974 - 08.1977] MS8#,95,RS80 L=120,L/SLIT |
82817-30090 |
— | ||
|
82825
|
82825
82817-30120
Protector, Wiring Harness
[12.1974 - 08.1977] MS8#,95,RS80 L=120,W/SLIT |
82817-30120 |
— | ||
|
82825
|
82825
82817-30170
Protector, Wiring Harness, No.1
[08.1977 - 08.1979] MS8#,95,RS80 L=135 L/SLIT |
82817-30170 |
— | ||
|
82825
|
82825
82817-30180
Protector, Wiring Harness
[08.1977 - 08.1979] MS8#,95,RS80 L=135 W/SLIT |
82817-30180 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906070
|
9011906070
90119-06070
BOLT
|
90119-06070 |
— | ||
| replacement | |||||
|
9011906070
|
9011906070
90119-06442 BOLT WWASHER |
90119-06442 |
US $1.92 |
||
|
9354015010
|
9354015010
93540-15010 SCREW, TAPPING |
93540-15010 |
from US $1.92 |
||
