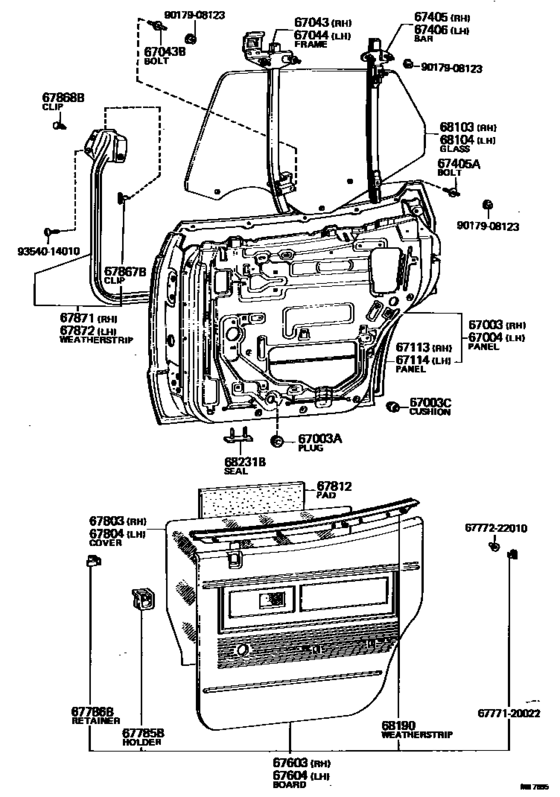

Rear Door Panel & Glass ([12.1974 - 08.1979] (7412-7908)MS95..4D) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- General
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 12.1974
- To
- 08.1979
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-30100
Panel Sub-Assy, Rear Door, Rh
[12.1974 - 08.1979] MS95..4D |
67003-30100 |
— | ||
|
67003A
|
67003A
90950-01022
Plug, Hole, No.1(For Dash Panel)
[10.1974 - 04.1976] MS8#,95,RS80..(BTP,DLX,STD)..4D OD=30 |
90950-01022 |
— | ||
| replacement | |||||
|
67003A
|
67003A
90950-01882 Cover, Hole[10.1974 - 04.1976] MS8#,95,RS80..(BTP,DLX,STD)..4D OD=30 |
90950-01882 |
from US $2.24 |
||
|
67003A
|
67003A
90950-01150
Cover, Front Floor Hole
[04.1976 - 08.1979] MS8#,95,RS80..(BTP,DLX,STD)..4D OD=30 |
90950-01150 |
— | ||
| replacement | |||||
|
67003A
|
67003A
90950-01882 Cover, Hole[04.1976 - 08.1979] MS8#,95,RS80..(BTP,DLX,STD)..4D OD=30 |
90950-01882 |
from US $2.24 |
||
|
67003C
|
67003C
90541-09121
Cushion, Front Door Panel
[12.1974 - 08.1979] MS95..4D |
90541-09121 |
— | ||
|
67004
|
67004
67004-30100
Panel Sub-Assy, Rear Door, Lh
[12.1974 - 08.1979] MS95..4D |
67004-30100 |
— | ||
|
67043
|
67043
67405-30040
Frame Sub-Assy, Rear Door Window, Rh
[12.1974 - 08.1979] MS95..4D |
67405-30040 |
— | ||
|
67043B
|
67043B
90116-08311
Bolt, Stud(For Rear Door Window Frame)
[12.1974 - 08.1979] MS95..4D L=17.5 |
90116-08311 |
— | ||
|
67043B
|
67043B
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[12.1974 - 08.1979] MS95..4D L=24.0 |
90116-08313 |
— | ||
|
67044
|
67044
67406-30040
Frame Sub-Assy, Rear Door Window, Lh
[12.1974 - 08.1979] MS95..4D |
67406-30040 |
— | ||
|
67113
|
67113
67113-30060
Panel, Rear Door, Outer Rh
[12.1974 - 08.1979] MS95..4D |
67113-30060 |
— | ||
|
67114
|
67114
67114-30070
Panel, Rear Door, Outer Lh
[12.1974 - 08.1979] MS95..4D |
67114-30070 |
— | ||
|
67405
|
67405
67407-30050
Bar Sub-Assy, Rear Door Window Division, Rh
[12.1974 - 08.1979] MS95..4D |
67407-30050 |
— | ||
|
67405A
|
67405A
90116-08311
Bolt, Stud(For Rear Door Window Frame)
[12.1974 - 08.1979] MS95..4D L=17.5 |
90116-08311 |
— | ||
|
67405A
|
67405A
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[12.1974 - 08.1979] MS95..4D L=24.0 |
90116-08313 |
— | ||
|
67406
|
67406
67408-30040
Bar Sub-Assy, Rear Door Window Division, Lh
[12.1974 - 08.1979] MS95..4D |
67408-30040 |
— | ||
|
67603
|
67603
67630-30410-03
Board Sub-Assy, Rear Door Trim, Rh
[12.1974 - 11.1976] MS95..4D GRAY,GRAY,TRIM1# |
67630-30410-03 |
— | ||
|
67603
|
67603
67630-30410-06
Board Sub-Assy, Rear Door Trim, Rh
[12.1974 - 11.1976] MS95..4D BROWN,BROWN,TRIM4# |
67630-30410-06 |
— | ||
|
67603
|
67603
67630-30411-03
Board Sub-Assy, Rear Door Trim, Rh
[11.1976 - 02.1978] MS95..4D GRAY,GRAY,TRIM1# |
67630-30411-03 |
— | ||
|
67603
|
67603
67630-30411-04 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [11.1976 - 02.1978] MS95..4D BLUE,BLUE,TRIM8# |
67630-30411-04 |
US $439.71 |
||
| replacement | |||||
|
67603
|
67603
67630-30411-14
Board Sub-Assy, Rear Door Trim, Rh
[11.1976 - 02.1978] MS95..4D BLUE,BLUE,TRIM8# |
67630-30411-14 |
— | ||
|
67603
|
67603
67630-30411-05
Board Sub-Assy, Rear Door Trim, Rh
[02.1978 - 08.1979] MS95..4D BEIGE,BEIGE,TRIM4# |
67630-30411-05 |
— | ||
|
67604
|
67604
67640-30410-03
Board Sub-Assy, Rear Door Trim, Lh
[12.1974 - 11.1976] MS95..4D GRAY,GRAY,TRIM1# |
67640-30410-03 |
— | ||
|
67604
|
67604
67640-30410-06
Board Sub-Assy, Rear Door Trim, Lh
[12.1974 - 11.1976] MS95..4D BROWN,BROWN,TRIM4# |
67640-30410-06 |
— | ||
|
67604
|
67604
67640-30411-03
Board Sub-Assy, Rear Door Trim, Lh
[11.1976 - 02.1978] MS95..4D GRAY,GRAY,TRIM1# |
67640-30411-03 |
— | ||
|
67604
|
67604
67640-30411-04 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [11.1976 - 02.1978] MS95..4D BLUE,BLUE,TRIM8# |
67640-30411-04 |
US $439.71 |
||
| replacement | |||||
|
67604
|
67604
67640-30411-14
Board Sub-Assy, Rear Door Trim, Lh
[11.1976 - 02.1978] MS95..4D BLUE,BLUE,TRIM8# |
67640-30411-14 |
— | ||
|
67604
|
67604
67640-30411-05
Board Sub-Assy, Rear Door Trim, Lh
[02.1978 - 08.1979] MS95..4D BEIGE,BEIGE,TRIM4# |
67640-30411-05 |
— | ||
|
67785B
|
67785B
67785-30030-01 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [10.1974 - 11.1976] MS8#,95,RS80..4D BLACK,BLACK,TRIM0#,1#,4# |
67785-30030-01 |
US $17.91 |
||
|
67785B
|
67785B
67785-30030-03 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [11.1976 - 08.1979] MS8#,95,RS80..4D GRAY,GRAY,TRIM1# |
67785-30030-03 |
US $17.91 |
||
|
67785B
|
67785B
67785-30030-04 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [11.1976 - 08.1979] MS8#,95,RS80..4D BLUE,BLUE,TRIM8# |
67785-30030-04 |
US $17.91 |
||
|
67785B
|
67785B
67785-30030-05 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [11.1976 - 08.1979] MS8#,95,RS80..4D BEIGE,BEIGE,TRIM4# |
67785-30030-05 |
US $17.91 |
||
|
67786B
|
67786B
67786-30020 Retainer, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [10.1974 - 08.1979] MS8#,95,RS80..4D |
67786-30020 |
US $3.35 |
||
|
67803
|
67803
67841-30090
Cover Sub-Assy, Rear Door Service Hole, Rh
[12.1974 - 08.1979] MS95..4D |
67841-30090 |
— | ||
|
67804
|
67804
67841-30090
Cover Sub-Assy, Rear Door Service Hole, Rh
[12.1974 - 08.1979] MS95..4D |
67841-30090 |
— | ||
|
67812
|
67812
67811-20030 Pad, Quarter Wheel House, Inner Front RhFRONT DOOR SILENCER [10.1974 - 08.1979] MS8#,95,RS80..4D |
67811-20030 |
US $13.69 |
||
| replacement | |||||
|
67812
|
67812
67812-12010 Pad, Quarter Wheel House, Inner Front Rh[10.1974 - 08.1979] MS8#,95,RS80..4D |
67812-12010 |
US $10.24 |
||
|
67867B
|
67867B
67868-30040 Retainer, Roof Side Rail, Rh[10.1974 - 08.1979] MS8#,95,RS80..4D |
67868-30040 |
US $1.76 |
||
|
67868B
|
67868B
67869-30020 Clip, Headlamp Door Filler[12.1974 - 08.1979] MS95..4D |
67869-30020 |
US $3.52 |
||
|
67871
|
67871
67871-30060
Weatherstrip, Rear Door, Rh
[12.1974 - 08.1979] MS95..4D |
67871-30060 |
— | ||
|
67872
|
67872
67872-30050
Weatherstrip, Rear Door, Lh
[12.1974 - 08.1979] MS95..4D |
67872-30050 |
— | ||
|
68103
|
68103
68113-30160
Glass Sub-Assy, Rear Door, Rh
[12.1974 - 08.1979] MS95..4D TN.TP.T=5.0 |
68113-30160 |
— | ||
|
68104
|
68104
68114-30090 Glass Sub-Assy, Rear Door, LhREAR DOOR, LH [12.1974 - 08.1979] MS95..4D TN.TP.T=5.0 |
68114-30090 |
US $227.14 |
||
|
68190
|
68190
68190-30090
Weatherstrip Assy, Rear Door Glass, Inner
[12.1974 - 08.1979] MS95..4D RH. |
68190-30090 |
— | ||
|
68190
|
68190
68240-30070
Weatherstrip Assy, Rear Door Glass, Inner
[12.1974 - 08.1979] MS95..4D LH. |
68240-30070 |
— | ||
|
68231B
|
68231B
68231-30020
Seal, Front Door Drain Hole Dust
[10.1974 - 08.1979] MS8#,95,RS80..4D |
68231-30020 |
— | ||
|
6777120022
|
6777120022
67771-20022 Retainer(For Front Door Trim Board) |
67771-20022 |
from US $1.38 |
||
|
6777222010
|
6777222010
67772-22010 Clip(For Front Door Trim Board) |
67772-22010 |
US $2.72 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.84 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.99 |
||
