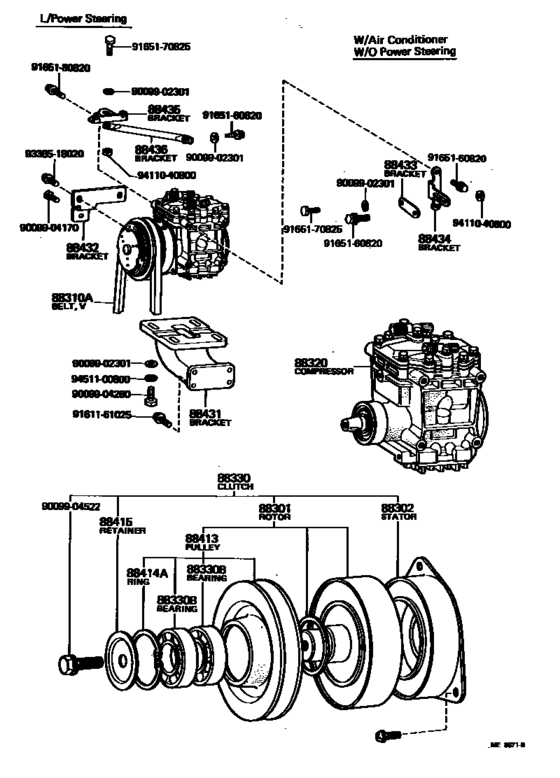

Heating & Air Conditioning - Compressor ([09.1979 - ] (7909- )RS110..BTP,DLX,STD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- RS110
- grade
- DLX
- body
- SED
- ENGINE
- 5RU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 4H
- No.of Doors
- 4D
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88401-30270
Rotor Sub-Assy, Magnet Clutch
[09.1979 - 07.1983] RS110..BTP,DLX,TAX W/PS |
88401-30270 |
— | ||
|
88301
|
88301
88401-30280
Rotor Sub-Assy, Magnet Clutch
[09.1979 - 07.1983] RS110..BTP,DLX,STD W/AIR CONDITIONER,W/O PS |
88401-30280 |
— | ||
|
88301
|
88301
88401-30300
Rotor Sub-Assy, Magnet Clutch
[09.1979 - 07.1983] RS110 W/DASH TYPE COOLER,W/O PS |
88401-30300 |
— | ||
|
88302
|
88302
88411-30300
Stator Sub-Assy, Magnet Clutch
[09.1979 - 07.1983] RS110 W/AIR CONDITIONER OR PS |
88411-30300 |
— | ||
|
88302
|
88302
88411-30310
Stator Sub-Assy, Magnet Clutch
[09.1979 - 07.1983] RS110 W/DASH TYPE COOLER,W/O PS |
88411-30310 |
— | ||
|
88310A
|
88310A
99322-01070
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[09.1979 - 07.1983] RS110..BTP,DLX,STD W/AIR CONDITIONER,W/O PS |
99322-01070 |
— | ||
|
88310A
|
88310A
99322-01100
Belt, V(For Vane Pump)
[09.1979 - 07.1983] RS110 W/DASH TYPE COOLER,W/O PS |
99322-01100 |
— | ||
|
88310A
|
88310A
99322-01120
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[09.1979 - 07.1983] RS110..BTP,DLX,TAX W/PS |
99322-01120 |
— | ||
|
88320
|
88320
88320-30280
Compressor Assy, Cooler
[09.1979 - 07.1983] RS110..BTP,DLX,STD |
88320-30280 |
— | ||
|
88320
|
88320
88320-30290
Compressor Assy, Cooler
[09.1979 - 07.1983] RS110 W/DASH TYPE COOLER |
88320-30290 |
— | ||
|
88330
|
88330
88410-30300
Clutch Assy, Magnet
[09.1979 - 07.1983] RS110..BTP,DLX,TAX W/PS |
88410-30300 |
— | ||
|
88330
|
88330
88410-30310
Clutch Assy, Magnet
[09.1979 - 07.1983] RS110..BTP,DLX,STD W/AIR CONDITIONER,W/O PS |
88410-30310 |
— | ||
|
88330
|
88330
88410-30320
Clutch Assy, Magnet
[09.1979 - 07.1983] RS110 W/DASH TYPE COOLER,W/O PS |
88410-30320 |
— | ||
|
88330B
|
88330B
90099-10083
Bearing, Magnet Clutch
[09.1979 - 07.1983] RS110 |
90099-10083 |
— | ||
|
88413
|
88413
88402-30250 Pulley Sub-Assy, Magnet ClutchMAGNET CLUTCH [09.1979 - 07.1983] RS110..BTP,DLX,TAX W/PS |
88402-30250 |
US $227.14 |
||
|
88413
|
88413
88402-30260
Pulley Sub-Assy, Magnet Clutch
[09.1979 - 07.1983] RS110..BTP,DLX,STD W/AIR CONDITIONER,W/O PS |
88402-30260 |
— | ||
|
88414A
|
88414A
90096-90005
Ring, Snap (For Magnet Clutch)
[09.1979 - 07.1983] RS110 |
90096-90005 |
— | ||
|
88415
|
88415
88415-12020
Retainer, Magnet Clutch Bearing, No.1
[09.1979 - 07.1983] RS110 W/AIR CONDITIONER OR PS |
88415-12020 |
— | ||
|
88431
|
88431
88432-30350
Bracket, Compressor Mounting, No.1
[09.1979 - 07.1983] RS110 |
88432-30350 |
— | ||
|
88431
|
88431
88444-30270
Bracket, Compressor Mounting, No.1
[09.1979 - 07.1983] RS110..BTP,DLX,TAX W/PS |
88444-30270 |
— | ||
|
88432
|
88432
88688-30410
Bracket, Compressor Mounting, No.2
[09.1979 - 07.1983] RS110 |
88688-30410 |
— | ||
|
88433
|
88433
88434-30030
Bracket, Compressor Mounting, No.3
[09.1979 - 07.1983] RS110..BTP,DLX,TAX W/PS |
88434-30030 |
— | ||
| replacement | |||||
|
88433
|
88433
88434-30300
Bracket, Compressor Mounting, No.3
[09.1979 - 07.1983] RS110..BTP,DLX,TAX W/PS |
88434-30300 |
— | ||
|
88433
|
88433
88434-30250
Bracket, Compressor Mounting, No.3
[09.1979 - 07.1983] RS110 |
88434-30250 |
— | ||
|
88434
|
88434
88434-30260
Bracket, Compressor Mounting, No.4
[09.1979 - 07.1983] RS110 |
88434-30260 |
— | ||
|
88435
|
88435
88434-30280
Bracket, Compressor Mounting, No.5
[09.1979 - 07.1983] RS110 |
88434-30280 |
— | ||
|
88436
|
88436
88434-30290
Bracket, Compressor Mounting, No.6
[09.1979 - 07.1983] RS110 |
88434-30290 |
— | ||
|
88436
|
88436
88434-30310
Bracket, Compressor Mounting, No.6
[09.1979 - 07.1983] RS110..BTP,DLX,TAX W/PS |
88434-30310 |
— | ||
|
9009902301
|
9009902301
90099-02301
New Genuine Part
|
90099-02301 |
— | ||
|
9009904170
|
9009904170
90099-04170
New Genuine Part
|
90099-04170 |
— | ||
|
9009904280
|
9009904280
90099-04280
New Genuine Part
|
90099-04280 |
— | ||
|
9009904522
|
9009904522
90099-04522
New Genuine Part
|
90099-04522 |
— | ||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9165170825
|
9165170825
91651-70825
New Genuine Part
|
91651-70825 |
— | ||
|
9165180820
|
9165180820
91651-80820
New Genuine Part
|
91651-80820 |
— | ||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
