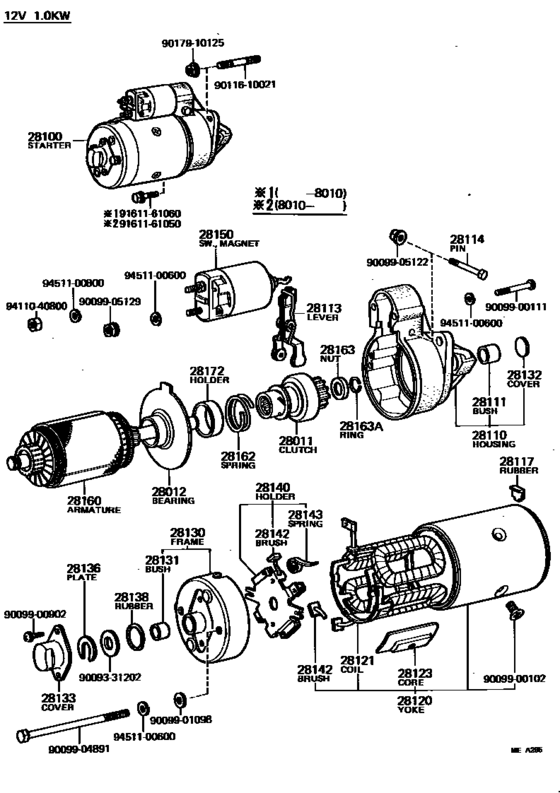

Starter ([09.1979 - 08.1981] (7909-8108)5RU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- RS110
- grade
- DLX
- body
- SED
- ENGINE
- 5RU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 4H
- No.of Doors
- 4D
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[09.1979 - 07.1983] MJ,5M#,5RU,MTEU,MU..MS11#,RS110 12V 1.4KW |
28011-26042 |
— | ||
|
28011
|
28011
28011-41020
Clutch Sub-Assy, Starter
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28011-41020 |
— | ||
|
28012
|
28012
28126-40061
Bearing Sub-Assy, Center
[09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28126-40061 |
— | ||
|
28100
|
28100
28100-44030 Starter Assy[09.1979 - 08.1981] 5RU..RS110 12V 1.4KW |
28100-44030 |
US $1,630.72 |
||
| replacement | |||||
|
28100
|
28100
28100-44060
Starter Assy
[09.1979 - 08.1981] 5RU..RS110 12V 1.4KW |
28100-44060 |
— | ||
|
28100
|
28100
28100-44041 Starter Assy[09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28100-44041 |
US $1,083.26 |
||
| replacement | |||||
|
28100
|
28100
28100-35120 Starter Assy[09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28100-35120 |
US $1,311.86 |
||
|
28100
|
28100
28100-44050 Starter Assy[08.1981 - 07.1983] 5RU..RS110 12V 1.0KW |
28100-44050 |
US $1,285.65 |
||
|
28100
|
28100
28100-44060
Starter Assy
[08.1981 - 07.1983] 5RU..RS110 12V 1.4KW |
28100-44060 |
— | ||
|
28110
|
28110
28110-44040
Housing Assy, Starter Drive
[09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28110-44040 |
— | ||
|
28110
|
28110
28110-44050
Housing Assy, Starter Drive
[08.1981 - 07.1983] 5RU..RS110 12V 1.0KW |
28110-44050 |
— | ||
|
28110
|
28110
28115-44030
Housing Assy, Starter Drive
[09.1979 - 07.1983] 5RU..RS110 12V 1.4KW |
28115-44030 |
— | ||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28111-51011 |
— | ||
|
28113
|
28113
28113-41011
Lever, Starter Pinion Drive
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28113-41011 |
— | ||
|
28114
|
28114
28114-41011
Pin, Starter Drive Lever Set
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28114-41011 |
— | ||
|
28117
|
28117
28117-41020
Rubber(For Starter Yoke)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28117-41020 |
— | ||
|
28120
|
28120
28120-44030
Yoke Assy, Starter
[09.1979 - 07.1983] 5RU..RS110 12V 1.4KW |
28120-44030 |
— | ||
|
28120
|
28120
28120-44041
Yoke Assy, Starter
[09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28120-44041 |
— | ||
|
28120
|
28120
28120-44050
Yoke Assy, Starter
[08.1981 - 07.1983] 5RU..RS110 12V 1.0KW |
28120-44050 |
— | ||
|
28121
|
28121
28121-34070 Coil, Starter Field[09.1979 - 04.1980] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28121-34070 |
US $116.48 |
||
|
28121
|
28121
28121-42020 Coil, Starter Field[04.1980 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28121-42020 |
US $115.02 |
||
| replacement | |||||
|
28121
|
28121
28121-34070 Coil, Starter Field[04.1980 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28121-34070 |
US $116.48 |
||
|
28123
|
28123
28123-41020
Core, Starter Pole
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28123-41020 |
— | ||
|
28130
|
28130
28130-40060 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28130-40060 |
US $17.47 |
||
|
28130
|
28130
28130-44050
Frame Assy, Starter Commutator End
[08.1981 - 07.1983] 5RU..RS110 12V 1.0KW |
28130-44050 |
— | ||
|
28131
|
28131
28131-20010
Bush, Commutator End Frame
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,STD |
28131-20010 |
— | ||
|
28131
|
28131
90099-10039
Bush, Commutator End Frame
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,U/S 0.3 |
90099-10039 |
— | ||
|
28131
|
28131
90099-10040
Bush, Commutator End Frame
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,U/S 0.5 |
90099-10040 |
— | ||
|
28132
|
28132
28166-41011
Cover, Starter Bearing(For Drive Housing)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28166-41011 |
— | ||
|
28133
|
28133
28132-40010
Cover, Bearing(For End Frame)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28132-40010 |
— | ||
|
28136
|
28136
28136-40010
Plate, Starter Lock
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28136-40010 |
— | ||
|
28138
|
28138
28138-40010
Rubber(For Starter Bearing Cover)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28138-40010 |
— | ||
| replacement | |||||
|
28138
|
28138
28138-26030
Rubber(For Starter Bearing Cover)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28138-26030 |
— | ||
|
28140
|
28140
28140-25020
Holder Assy, Starter Brush
[09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28140-25020 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1981 - 07.1983] 1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
28140-26070 |
from US $16.77 |
||
|
28140
|
28140
28140-34030
Holder Assy, Starter Brush
[09.1979 - 07.1983] MJ,5M#,5RU,MTEU,MU..MS11#,RS110 12V 1.4KW |
28140-34030 |
— | ||
|
28142
|
28142
28142-25011 Brush, StarterSTARTER [09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28142-25011 |
US $9.17 |
||
|
28143
|
28143
28143-40040
Spring, Starter Brush
[09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28143-40040 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[09.1979 - 07.1983] MJ,5M#,5RU,MTEU,MU..MS11#,RS110 12V 1.4KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-34070
Switch Assy, Magnet Starter
[09.1979 - 08.1981] 5RU..RS110 12V 1.0KW |
28150-34070 |
— | ||
|
28150
|
28150
28150-44030
Switch Assy, Magnet Starter
[09.1979 - 08.1981] 5RU..RS110 12V 1.4KW |
28150-44030 |
— | ||
|
28150
|
28150
28150-44050
Switch Assy, Magnet Starter
[08.1981 - 07.1983] 5RU..RS110 12V 1.0KW |
28150-44050 |
— | ||
|
28150
|
28150
28150-44060
Switch Assy, Magnet Starter
[08.1981 - 07.1983] 5RU..RS110 12V 1.4KW |
28150-44060 |
— | ||
|
28160
|
28160
28160-26050
Armature Assy, Starter
[09.1979 - 07.1983] MJ,5M#,5RU,MTEU,MU..MS11#,RS110 12V 1.4KW |
28160-26050 |
— | ||
|
28160
|
28160
28160-26070 Armature Assy, Starter[08.1981 - 07.1983] 1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1981 - 07.1983] 1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
28160-26071 |
— | ||
|
28160
|
28160
28160-41020
Armature Assy, Starter
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28160-41020 |
— | ||
|
28162
|
28162
28162-41022
Spring, Starter Brake
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28162-41022 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[09.1979 - 08.1981] MEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110 12V 0.8KW,1.0KW |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[09.1979 - 08.1981] MEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110 12V 0.8KW,1.0KW |
90099-07047 |
— | ||
|
28172
|
28172
28172-41021
Holder, Starter Spring
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28172-41021 |
— | ||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009900102
|
9009900102
90099-00102
New Genuine Part
|
90099-00102 |
— | ||
|
9009900111
|
9009900111
90099-00111
New Genuine Part
|
90099-00111 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009901098
|
9009901098
90099-01098
New Genuine Part
|
90099-01098 |
— | ||
|
9009904891
|
9009904891
90099-04891
New Genuine Part
|
90099-04891 |
— | ||
|
9009905122
|
9009905122
90099-05122
New Genuine Part
|
90099-05122 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9011610021
|
9011610021
90116-10021 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10021 |
from US $3.14 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.33 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
