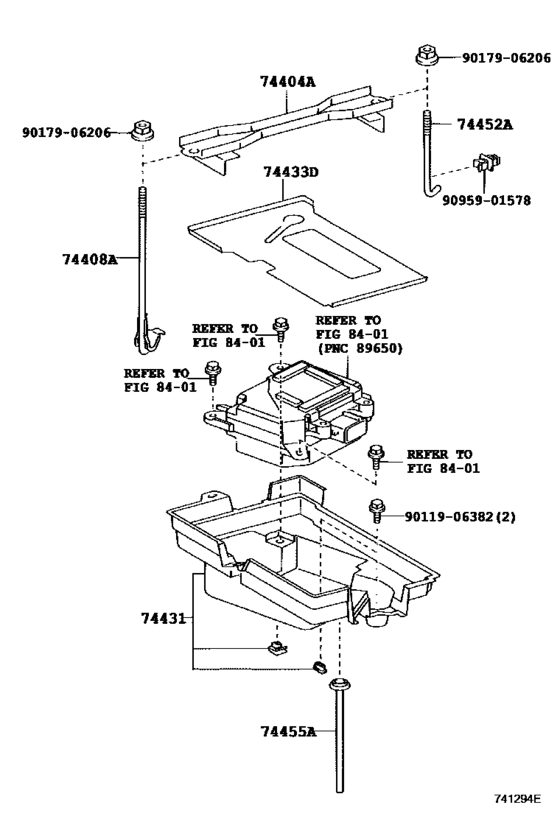

Battery Carrier ([12.2003 - ] (0312- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-30280 Clamp Sub-Assy, Battery[12.2003 - 06.2006] GRS180,181..5FC;GRS182,183,UZS18# |
74404-30280 |
US $36.46 |
||
|
74408A
|
74408A
74408-30010 Bolt Sub-Assy, Battery Clamp, No.2[12.2003 - 06.2006] UZS18# |
74408-30010 |
from US $5.19 |
||
|
74431
|
74431
74431-30190 Tray, Battery[12.2003 - 06.2006] UZS18# |
74431-30190 |
US $71.34 |
||
| replacement | |||||
|
74431
|
74431
74431-30191 Tray, Battery[12.2003 - 06.2006] UZS18# |
74431-30191 |
US $90.20 |
||
|
74433D
|
74433D
74433-30020 Support, Battery Tray,no.1[12.2003 - 05.2006] GRS180,181..5FC;GRS182,183,UZS18# |
74433-30020 |
US $22.57 |
||
| replacement | |||||
|
74433D
|
74433D
74433-30022 Support, Battery Tray,no.1BATTERY TRAY,NO.1 [12.2003 - 05.2006] GRS180,181..5FC;GRS182,183,UZS18# |
74433-30022 |
US $14.27 |
||
|
74433D
|
74433D
74433-30021 Support, Battery Tray,no.1[06.2006 -] UZS18# |
74433-30021 |
US $18.93 |
||
| replacement | |||||
|
74433D
|
74433D
74433-30022 Support, Battery Tray,no.1BATTERY TRAY,NO.1 [06.2006 -] UZS18# |
74433-30022 |
US $14.27 |
||
|
74452A
|
74452A
74452-30010 Bolt, Battery Clamp, No.2[10.2007 -] UZS18# |
74452-30010 |
from US $2.69 |
||
|
74452A
|
74452A
74452-51010
Bolt, Battery Clamp, No.2
[12.2003 - 06.2006] UZS18# |
74452-51010 |
— | ||
| replacement | |||||
|
74452A
|
74452A
74452-30010 Bolt, Battery Clamp, No.2[12.2003 - 06.2006] UZS18# |
74452-30010 |
from US $2.69 |
||
|
74455A
|
74455A
74455-30020
Hose, Battery Drain
[12.2003 - 06.2006] UZS18# |
74455-30020 |
— | ||
|
9011906382
|
9011906382
90119-06382 New Genuine Part |
90119-06382 |
US $1.25 |
||
|
9017906206
|
9017906206
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9095901578
|
9095901578
90959-01578 CLAMP |
90959-01578 |
US $1.25 |
||
