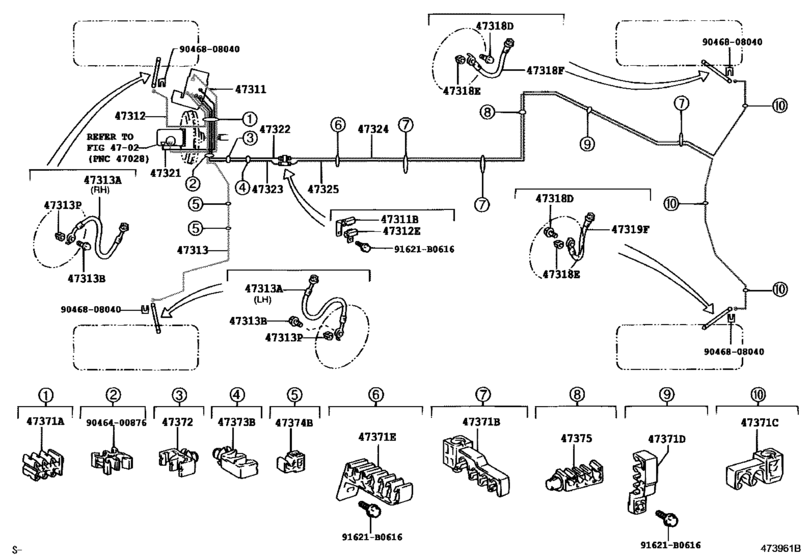

Brake Tube & Clamp ([06.2004 - ] (0406- )UZS187) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-30680 Tube, Front Brake, No.1[06.2004 - 06.2006] UZS187 |
47311-30680 |
US $12.23 |
||
|
47311B
|
47311B
90412-10250 Way, No.1(For Front Brake Tube)[06.2004 - 06.2006] UZS18# |
90412-10250 |
US $12.75 |
||
|
47312
|
47312
47312-30570 Tube, Front Brake, No.2[06.2004 - 06.2006] UZS187 |
47312-30570 |
US $16.31 |
||
|
47312E
|
47312E
90412-10144 Way, No.1(For Front Brake Tube)[06.2004 - 06.2006] UZS18# |
90412-10144 |
US $13.98 |
||
|
47313
|
47313
47313-30520 Tube, Front Brake, No.3[06.2004 - 06.2006] UZS187 |
47313-30520 |
US $24.32 |
||
|
47313A
|
47313A
90947-02E02 Hose, Flexible, No.1(For Front)[06.2004 - 06.2006] UZS187 右側 |
90947-02E02 |
US $18.01 |
||
|
47313A
|
47313A
90947-02E03 Hose, Flexible, No.1(For Front)[06.2004 - 06.2006] UZS187 左側 |
90947-02E03 |
US $18.01 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[06.2004 - 06.2006] UZS18# |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[06.2004 - 06.2006] UZS18# |
47389-50020 |
from US $4.91 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[06.2004 - 06.2006] UZS18# |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[06.2004 - 06.2006] UZS18# |
47389-50020 |
from US $4.91 |
||
|
47318F
|
47318F
90947-02D88
Hose, Flexible(For Rear Rh)
[06.2004 - 06.2006] UZS18# |
90947-02D88 |
— | ||
| replacement | |||||
|
47318F
|
47318F
90947-02F67 Hose, Flexible(For Rear Rh)[06.2004 - 06.2006] UZS18# |
90947-02F67 |
US $23.35 |
||
|
47318F
|
47318F
90947-02F67 Hose, Flexible(For Rear Rh)[01.2007 -] UZS18# |
90947-02F67 |
US $23.35 |
||
|
47319F
|
47319F
90947-02D88
Hose, Flexible(For Rear Rh)
[06.2004 - 06.2006] UZS18# |
90947-02D88 |
— | ||
| replacement | |||||
|
47319F
|
47319F
90947-02F67 Hose, Flexible(For Rear Rh)[06.2004 - 06.2006] UZS18# |
90947-02F67 |
US $23.35 |
||
|
47319F
|
47319F
90947-02F67 Hose, Flexible(For Rear Rh)[01.2007 -] UZS18# |
90947-02F67 |
US $23.35 |
||
|
47321
|
47321
47321-30390 Tube, Rear Brake, No.1[06.2004 - 06.2006] UZS187 |
47321-30390 |
US $12.23 |
||
|
47322
|
47322
47322-30330 Tube, Rear Brake, No.2[06.2004 - 06.2006] UZS187 |
47322-30330 |
US $18.20 |
||
|
47323
|
47323
47323-30290 Tube, Rear Brake, No.3[06.2004 - 06.2006] UZS187 |
47323-30290 |
US $18.20 |
||
|
47324
|
47324
47324-30310 Tube, Rear Brake, No.4[06.2004 - 06.2006] UZS18# |
47324-30310 |
US $57.66 |
||
|
47325
|
47325
47325-30090 Tube, Rear Brake, No.5[06.2004 - 06.2006] UZS18# |
47325-30090 |
US $51.54 |
||
|
47371A
|
47371A
90949-01C51 Clamp, Brake Tube, No.1[06.2004 - 06.2006] UZS187 |
90949-01C51 |
US $4.37 |
||
|
47371B
|
47371B
90949-01D09 Clamp, Brake Tube, No.6[06.2004 - 06.2006] UZS18# |
90949-01D09 |
US $2.77 |
||
|
47371C
|
47371C
90949-01D11 Clamp, Brake Tube, No.6[12.2003 - 06.2006] GRS180,181..5FC;GRS182,183,UZS18# |
90949-01D11 |
US $3.05 |
||
|
47371D
|
47371D
77298-30150 Clamp, Brake Tube, No.8[06.2004 - 06.2006] UZS18# |
77298-30150 |
US $6.05 |
||
|
47371E
|
47371E
77412-30060 Clamp, Brake Tube, No.9[06.2004 - 06.2006] UZS18# |
77412-30060 |
US $6.05 |
||
|
47372
|
47372
90949-01D12 Clamp(For Clutch Master Cylinder Tube)[06.2004 - 06.2006] UZS18# |
90949-01D12 |
US $1.97 |
||
|
47373B
|
47373B
90949-01D13 Clamp, Brake Tube, No.9[06.2004 - 06.2006] UZS18# |
90949-01D13 |
US $1.97 |
||
|
47374B
|
47374B
90949-01D10 Clamp, Brake Tube, No.4[06.2004 - 06.2006] UZS18# |
90949-01D10 |
US $3.79 |
||
| replacement | |||||
|
47374B
|
47374B
90949-01D20 Clamp, Brake Tube, No.4[06.2004 - 06.2006] UZS18# |
90949-01D20 |
US $3.06 |
||
|
47374B
|
47374B
90949-01D20 Clamp, Brake Tube, No.4[05.2007 -] UZS18# |
90949-01D20 |
US $3.06 |
||
|
47375
|
47375
77286-30110 Clamp, Brake Tube, No.5[06.2004 - 06.2006] UZS18# |
77286-30110 |
US $5.23 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
9046400876
|
9046400876
90464-00876 Clamp, Brake Tube, No.1 |
90464-00876 |
US $1.97 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
||
