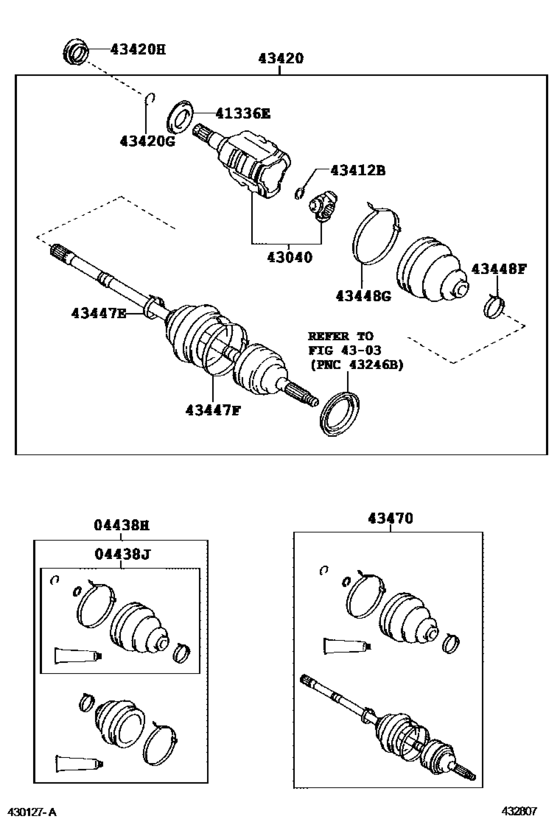

Front Drive Shaft ([12.2003 - ] ﾋﾀﾞﾘｶﾞﾜ (0312- )GRS181,183,UZS187) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-30030 Boot Kit, Front Drive Shaft, In & Outboard, Lh[06.2004 - 06.2006] UZS187 |
04428-30030 |
US $120.85 |
||
| replacement | |||||
|
04438H
|
04438H
04428-30101 Boot Kit, Front Drive Shaft, In & Outboard, Lh[06.2004 - 06.2006] UZS187 |
04428-30101 |
US $109.56 |
||
|
04438J
|
04438J
04438-30050 Boot Kit, Front Drive Shaft Inboard Joint, Rh[06.2004 - 06.2006] UZS187 |
04438-30050 |
US $61.59 |
||
| replacement | |||||
|
04438J
|
04438J
04438-30051 Boot Kit, Front Drive Shaft Inboard Joint, Rh[06.2004 - 06.2006] UZS187 |
04438-30051 |
from US $67.32 |
||
|
41336E
|
41336E
41336-32010 Cover, Dust(For Differential Side Gear Shaft)[06.2004 - 06.2006] UZS187 |
41336-32010 |
US $2.80 |
||
|
43040
|
43040
43040-30020 Joint Assy, Front Drive Inboard, Lh[06.2004 - 06.2006] UZS187 |
43040-30020 |
US $259.17 |
||
|
43412B
|
43412B
90520-20065 Ring, Hole Snap(For Piston Pin)[06.2004 - 06.2006] UZS187 |
90520-20065 |
US $1.24 |
||
|
43420
|
43420
43420-30020 Shaft Assy, Front Drive, Lh[12.2003 - 06.2006] GRS181,183,UZS187 |
43420-30020 |
US $800.80 |
||
| replacement | |||||
|
43420
|
43420
43420-30021 Shaft Assy, Front Drive, Lh[12.2003 - 06.2006] GRS181,183,UZS187 |
43420-30021 |
US $666.85 |
||
|
43420G
|
43420G
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[12.2003 - 06.2006] GRS181,183,UZS187 |
90521-26004 |
from US $1.79 |
||
|
43420H
|
43420H
90311-35030 Seal, Oil (For Front Differential Case)[12.2003 - 06.2006] GRS181,183,UZS187 |
90311-35030 |
from US $4.84 |
||
|
43447E
|
43447E
42345-22030 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[06.2004 - 06.2006] UZS187 |
42345-22030 |
US $3.14 |
||
|
43447F
|
43447F
42345-22040 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[06.2004 - 06.2006] UZS187 |
42345-22040 |
US $5.59 |
||
|
43448F
|
43448F
90949-01804 Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)[06.2004 - 06.2006] UZS187 |
90949-01804 |
US $2.48 |
||
|
43448G
|
43448G
90949-01803 Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)[06.2004 - 06.2006] UZS187 |
90949-01803 |
US $3.67 |
||
|
43470
|
43470
43470-39425 Shaft Assy, Front Drive Outboard Joint, Lh[06.2004 - 06.2006] UZS187 |
43470-39425 |
US $513.97 |
||
| replacement | |||||
|
43470
|
43470
43470-39427 Shaft Assy, Front Drive Outboard Joint, Lh[06.2004 - 06.2006] UZS187 |
43470-39427 |
US $428.06 |
||
