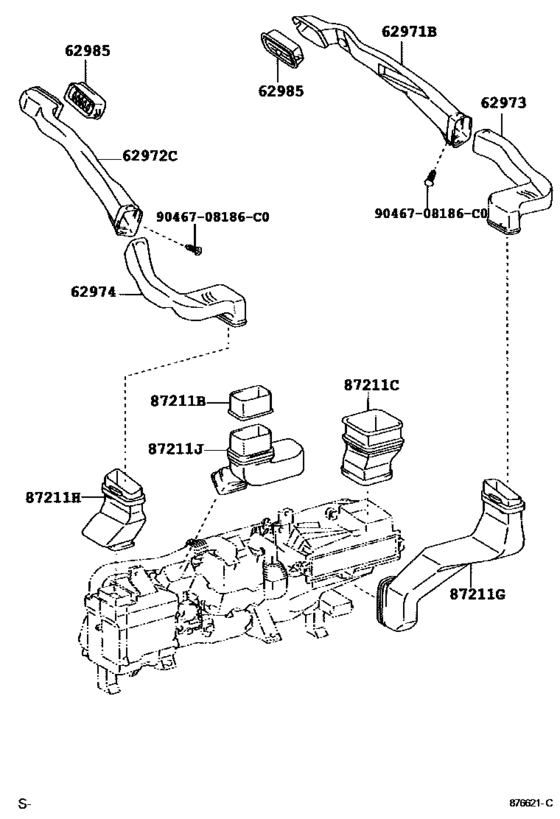

Heating & Air Conditioning - Control & Air Duct ([12.2003 - ] ﾘﾔ ｴｱﾀﾞｸﾄ (0312- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62971B
|
62971B
62971-30180 Duct, Roof Side Air, No.1 Rh[06.2004 - 06.2006] UZS18#..C |
62971-30180 |
US $31.16 |
||
|
62972C
|
62972C
62972-30180 Duct, Roof Side Air, No.1 Lh[06.2004 - 06.2006] UZS18#..C |
62972-30180 |
US $31.16 |
||
|
62973
|
62973
62973-30120 Duct, Roof Side Air, No.2 Rh[06.2004 - 06.2006] UZS18#..C |
62973-30120 |
US $38.73 |
||
|
62974
|
62974
62974-30120 Duct, Roof Side Air, No.2 Lh[06.2004 - 06.2006] UZS18#..C |
62974-30120 |
US $33.05 |
||
|
62985
|
62985
62985-30070-A0 Register, Roof Side Air Outlet[12.2003 - 06.2006] UZS18#..C IVORY,TRIM0# |
62985-30070-A0 |
US $39.75 |
||
|
62985
|
62985
62985-30070-B1 Register, Roof Side Air Outlet[06.2004 - 06.2006] UZS18#..C NEW GRAY,TRIM2# |
62985-30070-B1 |
US $39.75 |
||
|
87211B
|
87211B
87211-30410
Duct, Air, No.3
[12.2003 - 06.2006] UZS18#..C |
87211-30410 |
— | ||
|
87211C
|
87211C
87211-30360
Duct, Air, No.4
[12.2003 - 06.2006] UZS18#..C |
87211-30360 |
— | ||
|
87211G
|
87211G
87211-30370
Duct, Air, No.5
[12.2003 - 06.2006] UZS18#..C |
87211-30370 |
— | ||
|
87211H
|
87211H
87211-30380
Duct, Air, No.6
[12.2003 - 06.2006] UZS18#..C |
87211-30380 |
— | ||
|
87211J
|
87211J
87211-30390
Duct, Air, No.7
[12.2003 - 06.2006] UZS18#..C |
87211-30390 |
— | ||
|
9046708186C0
|
9046708186C0
90467-08186-C0 Clip(For Front Bumper), No.1 |
90467-08186-C0 |
from US $0.90 |
