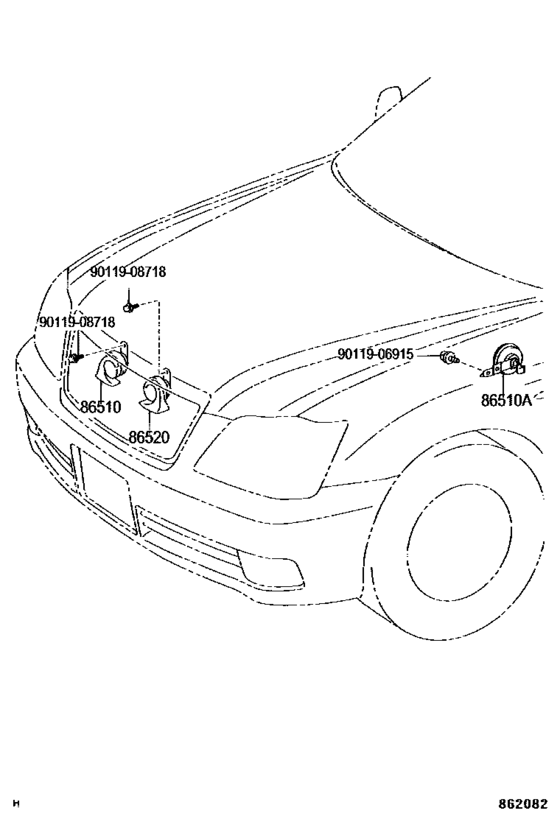

Horn ([12.2003 - ] (0312- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86510
|
86510
86510-30650 Horn Assy, High Pitched[12.2003 - 04.2005] GRS18#,UZS18# |
86510-30650 |
US $51.11 |
||
| replacement | |||||
|
86510
|
86510
86510-30700 Horn Assy, High Pitched[12.2003 - 04.2005] GRS18#,UZS18# |
86510-30700 |
from US $36.79 |
||
|
86510
|
86510
86510-30700 Horn Assy, High Pitched[05.2005 - 06.2006] UZS18# |
86510-30700 |
from US $36.79 |
||
|
86510A
|
86510A
86510-30640 Horn Assy, Security[12.2003 - 06.2006] UZS18# |
86510-30640 |
US $32.47 |
||
|
86520
|
86520
86520-30570 Horn Assy, Low Pitched[12.2003 - 04.2005] GRS18#,UZS18# |
86520-30570 |
US $51.11 |
||
| replacement | |||||
|
86520
|
86520
86520-30610 Horn Assy, Low Pitched[12.2003 - 04.2005] GRS18#,UZS18# |
86520-30610 |
from US $36.79 |
||
|
86520
|
86520
86520-30610 Horn Assy, Low Pitched[05.2005 - 06.2006] UZS18# |
86520-30610 |
from US $36.79 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.97 |
||
