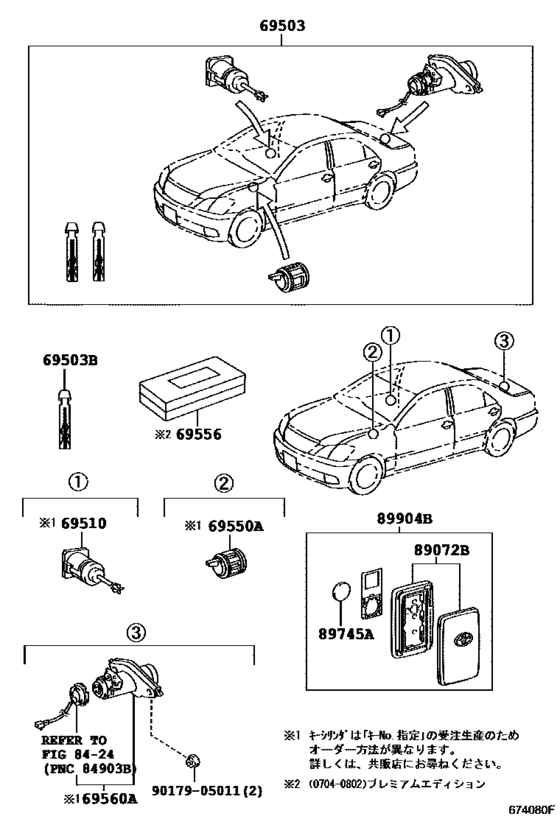

Lock Cylinder Set ([06.2006 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0509- )GRS18# ; (0606- )UZS18#) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69503
|
69503
69005-30A40 Cylinder Set, Lock[06.2004 - 06.2006] UZS18# |
69005-30A40 |
US $596.96 |
||
|
69503
|
69503
69005-30B60 Cylinder Set, Lock[06.2006 -] UZS18# |
69005-30B60 |
US $314.50 |
||
|
69503B
|
69503B
69515-30270
Key, Cut
[12.2003 - 06.2006] UZS18# マスターキー，Ｗ（＊６８） |
69515-30270 |
— | ||
|
69503B
|
69503B
69515-30310 Key, Cut[06.2006 -] UZS18# マスターキー，Ｗ（＊６８） |
69515-30310 |
US $154.16 |
||
|
69510
|
69510
69510-30280 Cylinder Assy, Front Door Lock, Rh[12.2003 - 06.2006] UZS18# |
69510-30280 |
US $186.37 |
||
|
69550A
|
69550A
69550-30150 Cylinder Assy, Glove Compartment Door Lock[12.2003 - 06.2006] UZS18# |
69550-30150 |
US $133.95 |
||
|
69560A
|
69560A
69560-30330 Cylinder Assy, Luggage Compartment Door Lock[06.2004 - 06.2006] UZS18# |
69560-30330 |
US $244.61 |
||
|
89072B
|
89072B
89072-33620 Housing Set, Door Control Transmitter (For Smart Key)[06.2006 - 12.2008] UZS18# |
89072-33620 |
US $70.76 |
||
|
89745A
|
89745A
89745-50020 Battery, Transmitter[12.2003 - 06.2006] GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG; GRS182,183,UZS18#;GRS180..5FC..(ATH,ROY) Ｇ−ＢＯＯＫ−プレミアム |
89745-50020 |
from US $7.88 |
||
|
89745A
|
89745A
89745-52020 Battery, Transmitter[06.2006 - 12.2008] UZS18# |
89745-52020 |
from US $7.88 |
||
|
89904B
|
89904B
89904-30090 Transmitter Sub-Assy, Electrical Key[06.2004 - 06.2006] UZS18# スマート機能有り（マスターキー） |
89904-30090 |
US $446.16 |
||
|
89904B
|
89904B
89904-30100 Transmitter Sub-Assy, Electrical Key[06.2004 - 06.2006] UZS18# スマート機能無し（サブキー） |
89904-30100 |
US $329.06 |
||
|
89904B
|
89904B
89904-33161
Transmitter Sub-Assy, Electrical Key
[06.2006 -] UZS18# |
89904-33161 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-33610 Transmitter Sub-Assy, Electrical Key[06.2006 -] UZS18# |
89904-33610 |
from US $421.86 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
