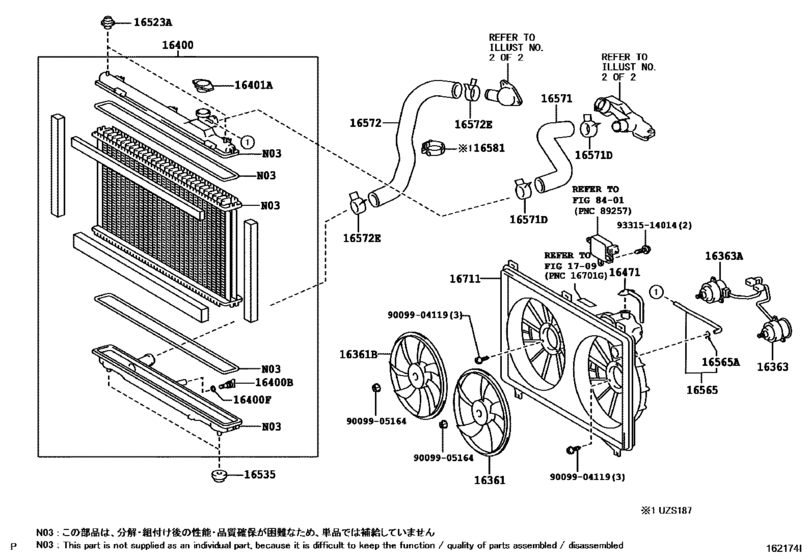

Radiator & Water Outlet ([06.2004 - ] (0406- )3UZFE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-50120 Fan[06.2004 - 06.2006] 3UZFE..UZS18# |
16361-50120 |
from US $52.10 |
||
|
16361B
|
16361B
16361-50130 Fan, No.2[06.2004 - 06.2006] 3UZFE..UZS18# |
16361-50130 |
US $95.12 |
||
|
16363
|
16363
16363-50100 Motor, Cooling Fan[06.2004 - 06.2006] 3UZFE..UZS18# |
16363-50100 |
US $438.36 |
||
|
16363A
|
16363A
16363-50110 Motor, Cooling Fan, No.2[06.2004 - 06.2006] 3UZFE..UZS18# |
16363-50110 |
US $438.36 |
||
|
16400
|
16400
16400-50330 Radiator Assy[06.2004 - 06.2006] 3UZFE..UZS187 |
16400-50330 |
US $513.97 |
||
|
16400B
|
16400B
16417-21280 Cock Sub-Assy, Radiator Drain[06.2004 - 06.2006] 3UZFE..UZS18# |
16417-21280 |
from US $3.49 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[06.2004 - 06.2006] 3UZFE..UZS18# |
16492-21050 |
from US $2.16 |
||
|
16401A
|
16401A
16401-28430
Cap Sub-Assy, Radiator
[08.2005 - 06.2006] 3UZFE..UZS18# |
16401-28430 |
— | ||
| replacement | |||||
|
16401A
|
16401A
16401-31480 Cap Sub-Assy, Radiator[08.2005 - 06.2006] 3UZFE..UZS18# |
16401-31480 |
from US $16.31 |
||
|
16401A
|
16401A
16401-62100
Cap Sub-Assy, Radiator
[06.2004 - 07.2005] 3UZFE..UZS18# |
16401-62100 |
— | ||
| replacements | |||||
|
16401A
|
16401A
16401-31520
Radiator Cap Sub-Assy (108kPa)
[06.2004 - 07.2005] 3UZFE..UZS18# |
16401-31520 |
— | ||
|
16401A
|
16401A
16401-36020 Cap Sub-Assy, Radiator[06.2004 - 07.2005] 3UZFE..UZS18# |
16401-36020 |
from US $16.31 |
||
|
16471
|
16471
16405-31010
Cap Sub-Assy, Reserve Tank
[06.2004 - 06.2006] 3UZFE..UZS18# |
16405-31010 |
— | ||
|
16523A
|
16523A
16523-31010 Cushion, Radiator Support[06.2004 - 06.2006] 3UZFE..UZS18# |
16523-31010 |
US $13.80 |
||
|
16535
|
16535
90480-40021 Grommet(For Radiator Support)[06.2004 - 06.2006] 3UZFE..UZS18# |
90480-40021 |
from US $3.94 |
||
|
16565
|
16565
16565-50060
Hose, Reserve Tank Inlet
[06.2004 - 06.2006] 3UZFE..UZS18# |
16565-50060 |
— | ||
|
16565A
|
16565A
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[06.2004 - 06.2006] 3UZFE..UZS18# |
90467-11085 |
from US $0.72 |
||
|
16571
|
16571
16571-50220 Hose, Radiator, Inlet[06.2004 - 06.2006] 3UZFE..UZS187 |
16571-50220 |
US $19.22 |
||
|
16571D
|
16571D
90466-41007 Clamp Or Clip, Hose(For Radiator Inlet)[06.2004 - 10.2004] 3UZFE..UZS18# |
90466-41007 |
from US $5.38 |
||
|
16571D
|
16571D
96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)[10.2004 - 06.2006] 3UZFE..UZS18# |
96136-54801 |
from US $5.38 |
||
|
16572
|
16572
16572-50200 Hose, Radiator, Outlet[06.2004 - 06.2006] 3UZFE..UZS18# |
16572-50200 |
US $43.18 |
||
|
16572E
|
16572E
90466-41007 Clamp Or Clip, Hose(For Radiator Inlet)[06.2004 - 10.2004] 3UZFE..UZS18# |
90466-41007 |
from US $5.38 |
||
|
16572E
|
16572E
96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)[10.2004 - 06.2006] 3UZFE..UZS18# |
96136-54801 |
from US $5.38 |
||
|
16581
|
16581
16581-26040 Clamp, Hose(For Water Hose)[06.2006 -] 3UZFE..UZS187 |
16581-26040 |
from US $7.22 |
||
|
16581
|
16581
16581-78100 Clamp, Hose(For Water Hose)[06.2004 - 05.2006] 3UZFE..UZS187 |
16581-78100 |
US $10.93 |
||
|
16711
|
16711
16711-50180 Shroud, Fan[06.2004 - 06.2006] 3UZFE..UZS18# |
16711-50180 |
US $97.68 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.25 |
||
