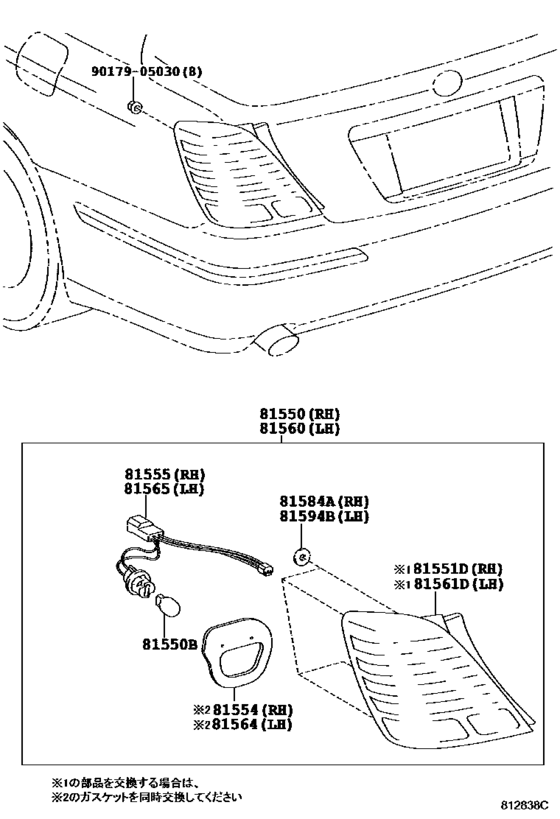

Rear Combination Lamp ([06.2004 - 06.2006] (0406-0606)UZS18#) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-30A30 Lamp Assy, Rear Combination, Rh[06.2004 - 06.2006] UZS18# |
81550-30A30 |
US $524.16 |
||
|
81550
|
81550
81550-30B00 Lamp Assy, Rear Combination, Rh[06.2006 -] UZS18# |
81550-30B00 |
US $524.16 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[06.2004 - 06.2006] UZS18# １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.60 |
||
|
81551D
|
81551D
81551-30A30 Lens & Body, Rear Combination Lamp, Rh[06.2004 - 06.2006] UZS18# |
81551-30A30 |
US $477.57 |
||
|
81551D
|
81551D
81551-30B00 Lens & Body, Rear Combination Lamp, Rh[06.2006 -] UZS18# |
81551-30B00 |
US $476.11 |
||
|
81554
|
81554
81554-30A30 Gasket, Rear Combination Lamp Body, Rh[06.2004 - 06.2006] UZS18# |
81554-30A30 |
US $16.31 |
||
|
81555
|
81555
81555-30A30 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[06.2004 - 06.2006] UZS18# |
81555-30A30 |
US $27.37 |
||
|
81560
|
81560
81560-30A20 Lamp Assy, Rear Combination, Lh[06.2004 - 06.2006] UZS18# |
81560-30A20 |
US $524.16 |
||
|
81560
|
81560
81560-30B20 Lamp Assy, Rear Combination, Lh[06.2006 -] UZS18# |
81560-30B20 |
US $524.16 |
||
|
81561D
|
81561D
81561-30A20 Lens & Body, Rear Combination Lamp, Lh[06.2004 - 06.2006] UZS18# |
81561-30A20 |
US $477.57 |
||
|
81561D
|
81561D
81561-30B20 Lens & Body, Rear Combination Lamp, Lh[06.2006 -] UZS18# |
81561-30B20 |
US $476.11 |
||
|
81564
|
81564
81564-30A20 Gasket, Rear Combination Lamp Body, Lh[06.2004 - 06.2006] UZS18# |
81564-30A20 |
US $14.52 |
||
|
81565
|
81565
81565-30A20 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[06.2004 - 06.2006] UZS18# |
81565-30A20 |
US $21.40 |
||
|
81584A
|
81584A
81584-22040 Gasket, Rear Combination Lamp, Rh[06.2004 - 06.2006] UZS18# |
81584-22040 |
US $3.40 |
||
|
81594B
|
81594B
81584-22040 Gasket, Rear Combination Lamp, Rh[06.2004 - 06.2006] UZS18# |
81584-22040 |
US $3.40 |
||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $2.15 |
