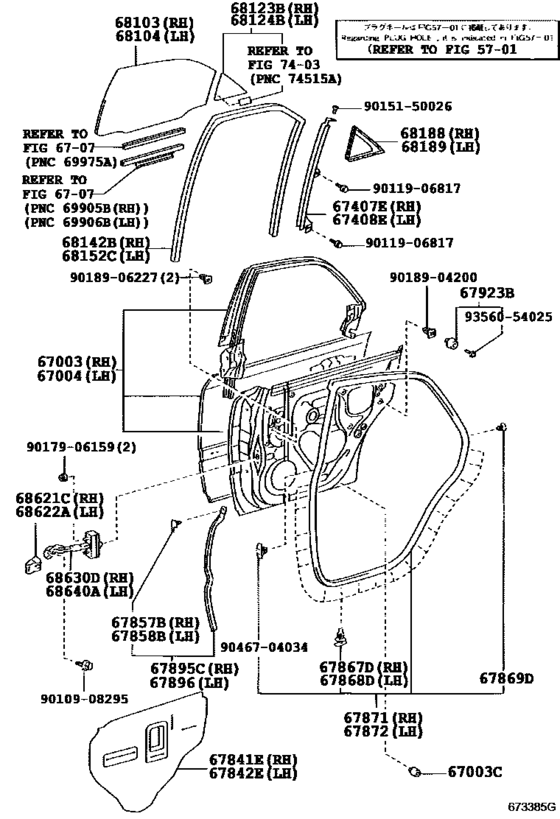

Rear Door Panel & Glass ([12.2003 - ] ﾄﾞｱﾊﾟﾈﾙ (0312- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-30610 Panel Sub-Assy, Rear Door, Rh[06.2004 - 06.2006] UZS18# |
67003-30610 |
US $1,027.94 |
||
|
67003C
|
67003C
90541-09069 Cushion, Hood Bumper[12.2003 - 06.2006] UZS18# |
90541-09069 |
from US $2.22 |
||
|
67004
|
67004
67004-30610 Panel Sub-Assy, Rear Door, Lh[06.2004 - 06.2006] UZS18# |
67004-30610 |
US $1,027.94 |
||
|
67407E
|
67407E
67407-30200 Bar Sub-Assy, Rear Door Window Division, Rh[06.2004 - 06.2006] UZS18# |
67407-30200 |
US $47.03 |
||
|
67408E
|
67408E
67408-30190 Bar Sub-Assy, Rear Door Window Division, Lh[06.2004 - 06.2006] UZS18# |
67408-30190 |
US $47.03 |
||
|
67841E
|
67841E
67841-30410 Cover, Rear Door Service Hole, Rh[12.2003 - 06.2006] UZS18# |
67841-30410 |
US $14.85 |
||
|
67842E
|
67842E
67842-30270 Cover, Rear Door Service Hole, Lh[12.2003 - 06.2006] UZS18# |
67842-30270 |
US $22.34 |
||
|
67857B
|
67857B
67857-30030 Protector, Rear Door Panel, Rh[12.2003 - 06.2006] UZS18# |
67857-30030 |
US $4.30 |
||
|
67858B
|
67858B
67858-30040 Protector, Rear Door Panel, Lh[12.2003 - 06.2006] UZS18# |
67858-30040 |
US $2.62 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[12.2003 - 06.2006] UZS18# |
67867-12150 |
from US $1.79 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[12.2003 - 06.2006] UZS18# |
67867-12150 |
from US $1.79 |
||
|
67869D
|
67869D
90467-05017-C0 Clip, Door Glass Weatherstrip(For Rear Door)[12.2003 - 06.2006] GRS180,181..5FC;GRS182,183,UZS18# BLACK |
90467-05017-C0 |
US $2.15 |
||
|
67871
|
67871
67871-30280 Weatherstrip, Rear Door, Rh[06.2004 - 06.2006] UZS18# |
67871-30280 |
US $113.57 |
||
|
67872
|
67872
67872-30290 Weatherstrip, Rear Door, Lh[06.2004 - 06.2006] UZS18# |
67872-30290 |
US $113.57 |
||
|
67895C
|
67895C
67895-30010 Weatherstrip, Rear Door, No.3 Rh[12.2003 - 06.2006] UZS18# |
67895-30010 |
from US $23.09 |
||
|
67896
|
67896
67896-30010 Weatherstrip, Rear Door, No.3 Lh[12.2003 - 06.2006] UZS18# |
67896-30010 |
US $23.35 |
||
|
67923B
|
67923B
67923-24030 Cushion, Front Door Stiffener, No.1[12.2003 - 06.2006] UZS18# |
67923-24030 |
from US $6.06 |
||
|
68103
|
68103
68113-30770
Glass Sub-Assy, Rear Door, Rh
[06.2004 - 06.2006] UZS18# ＊ＵＶＣＴ，厚さ＝４．０，クールグリーン |
68113-30770 |
— | ||
|
68104
|
68104
68114-30690
Glass Sub-Assy, Rear Door, Lh
[06.2004 - 06.2006] UZS18# ＊ＵＶＣＴ，厚さ＝４．０，クールグリーン |
68114-30690 |
— | ||
|
68123B
|
68123B
68123-30590
Glass, Rear Door Quarter Window, Rh
[06.2004 - 06.2006] UZS18# ＊ＵＶＣＴ，厚さ＝４．０，クールグリーン |
68123-30590 |
— | ||
|
68124B
|
68124B
68124-30530
Glass, Rear Door Quarter Window, Lh
[06.2004 - 06.2006] UZS18# ＊ＵＶＣＴ，厚さ＝４．０，クールグリーン |
68124-30530 |
— | ||
|
68142B
|
68142B
68142-30190 Run, Rear Door Window, Rh[06.2004 - 06.2006] UZS18# |
68142-30190 |
US $58.24 |
||
|
68152C
|
68152C
68152-30100 Run, Rear Door Glass, Lh[06.2004 - 06.2006] UZS18# |
68152-30100 |
US $58.24 |
||
|
68188
|
68188
68188-30170 Weatherstrip, Rear Door Quarter Window, Rh[06.2004 - 06.2006] UZS18# |
68188-30170 |
US $37.13 |
||
|
68189
|
68189
68189-30150 Weatherstrip, Rear Door Quarter Window, Lh[06.2004 - 06.2006] UZS18# |
68189-30150 |
US $37.13 |
||
|
68621C
|
68621C
68621-33010 Cover, Front Door Check, Rh[12.2003 - 06.2006] UZS18# |
68621-33010 |
US $8.24 |
||
|
68622A
|
68622A
68622-33010 Cover, Front Door Check, Lh[12.2003 - 06.2006] UZS18# |
68622-33010 |
US $8.24 |
||
|
68630D
|
68630D
68630-30190 Check Assy, Rear Door, Rh[12.2003 - 06.2006] UZS18# |
68630-30190 |
US $50.09 |
||
|
68640A
|
68640A
68640-30090 Check Assy, Rear Door, Lh[12.2003 - 06.2006] UZS18# |
68640-30090 |
US $50.09 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.78 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
from US $0.86 |
||
| replacement | |||||
|
9011906817
|
9011906817
90119-A0044 New Genuine Part |
90119-A0044 |
US $2.97 |
||
|
9015150026
|
9015150026
90151-50026 SCREW CROSSRECESS |
90151-50026 |
from US $0.70 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.66 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.68 |
||
|
9046704034
|
9046704034
90467-04034 Clip |
90467-04034 |
US $1.08 |
||
|
9356054025
|
9356054025
93560-54025 SCREW |
93560-54025 |
US $0.52 |
||
