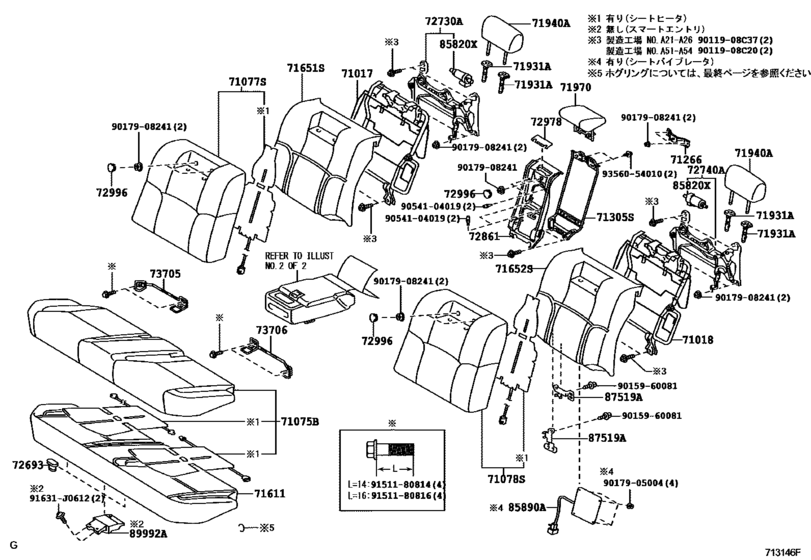

Rear Seat & Seat Track ([12.2003 - ] 4:2:4 ﾌﾞﾝｶﾂｼｷ ﾘﾔｼ-ﾄ (0312- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71017
|
71017
71017-30740 Frame Sub-Assy, Rear Seat Back, Rh[12.2003 - 06.2006] UZS18#..C |
71017-30740 |
US $157.25 |
||
|
71018
|
71018
71018-30220 Frame Sub-Assy, Rear Seat Back, Lh[12.2003 - 06.2006] UZS18#..C |
71018-30220 |
US $157.25 |
||
|
71075B
|
71075B
71075-30A20-A1 Cover, Rear Seat Cushion (For Bench Type)[12.2003 - 06.2006] UZS18#..C シート表皮−本皮,NEW IVORY,TRIM0# |
71075-30A20-A1 |
US $2,387.84 |
||
|
71075B
|
71075B
71075-30A20-C0 Cover, Rear Seat Cushion (For Bench Type)[06.2004 - 06.2006] UZS18#..C シート表皮−本皮,BLACK,TRIM2# |
71075-30A20-C0 |
US $2,387.84 |
||
|
71075B
|
71075B
71075-30A70-A0 Cover, Rear Seat Cushion (For Bench Type)[06.2004 - 06.2006] UZS18# IVORY,TRIM0# |
71075-30A70-A0 |
US $1,195.38 |
||
|
71075B
|
71075B
71075-30A70-E1 Cover, Rear Seat Cushion (For Bench Type)[06.2004 - 06.2006] UZS18# MAHOGANY BROWN,TRIM20 |
71075-30A70-E1 |
US $1,195.38 |
||
|
71075B
|
71075B
71075-30A80-E1 Cover, Rear Seat Cushion (For Bench Type)[06.2004 - 06.2006] UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ）,MAHOGANY BROWN,TRIM20 |
71075-30A80-E1 |
US $1,195.38 |
||
|
71075B
|
71075B
71075-30B40-A0 Cover, Rear Seat Cushion (For Bench Type)[06.2006 -] UZS18# IVORY,TRIM0# |
71075-30B40-A0 |
US $1,195.38 |
||
|
71075B
|
71075B
71075-30B40-E0 Cover, Rear Seat Cushion (For Bench Type)[06.2006 -] UZS18# MAHOGANY BROWN,TRIM2# |
71075-30B40-E0 |
US $1,195.38 |
||
|
71075B
|
71075B
71075-30B50-E0 Cover, Rear Seat Cushion (For Bench Type)[06.2006 -] UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ）,MAHOGANY BROWN,TRIM2# |
71075-30B50-E0 |
US $1,195.38 |
||
|
71075B
|
71075B
71075-30B60-C0 Cover, Rear Seat Cushion (For Bench Type)[06.2006 -] UZS18#..C シート表皮−本皮（プレミアム）,BLACK,TRIM2# |
71075-30B60-C0 |
US $2,387.84 |
||
|
71077S
|
71077S
71077-30A00-A1 Cover, Rear Seat Back, Rh (For Separate Type)[06.2004 - 06.2006] UZS18#..C IVORY,TRIM0# |
71077-30A00-A1 |
US $774.59 |
||
|
71077S
|
71077S
71077-30A00-E2 Cover, Rear Seat Back, Rh (For Separate Type)[06.2004 - 06.2006] UZS18#..C MAHOGANY BROWN,TRIM20 |
71077-30A00-E2 |
US $774.59 |
||
|
71077S
|
71077S
71077-30A10-E2 Cover, Rear Seat Back, Rh (For Separate Type)[06.2004 - 06.2006] UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ）,MAHOGANY BROWN,TRIM20 |
71077-30A10-E2 |
US $774.59 |
||
|
71077S
|
71077S
71077-30A30-A1 Cover, Rear Seat Back, Rh (For Separate Type)[12.2003 - 06.2006] UZS18#..C シート表皮−本皮,NEW IVORY,TRIM0# |
71077-30A30-A1 |
US $1,528.80 |
||
|
71077S
|
71077S
71077-30A30-C0 Cover, Rear Seat Back, Rh (For Separate Type)[06.2004 - 06.2006] UZS18#..C シート表皮−本皮,BLACK,TRIM2# |
71077-30A30-C0 |
US $1,528.80 |
||
|
71077S
|
71077S
71077-30B60-A0 Cover, Rear Seat Back, Rh (For Separate Type)[06.2006 -] UZS18#..C IVORY,TRIM0# |
71077-30B60-A0 |
US $774.59 |
||
|
71077S
|
71077S
71077-30B60-E0 Cover, Rear Seat Back, Rh (For Separate Type)[06.2006 -] UZS18#..C MAHOGANY BROWN,TRIM2# |
71077-30B60-E0 |
US $774.59 |
||
|
71077S
|
71077S
71077-30B70-E0 Cover, Rear Seat Back, Rh (For Separate Type)[06.2006 -] UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ）,MAHOGANY BROWN,TRIM2# |
71077-30B70-E0 |
US $1,004.64 |
||
|
71077S
|
71077S
71077-30B90-C0 Cover, Rear Seat Back, Rh (For Separate Type)[06.2006 -] UZS18#..C シート表皮−本皮（プレミアム）,BLACK,TRIM2# |
71077-30B90-C0 |
US $1,776.32 |
||
|
71078S
|
71078S
71078-30610-A1 Cover, Rear Seat Back, Lh(For Separate Type)[06.2004 - 06.2006] UZS18#..C IVORY,TRIM0# |
71078-30610-A1 |
US $774.59 |
||
|
71078S
|
71078S
71078-30610-E2 Cover, Rear Seat Back, Lh(For Separate Type)[06.2004 - 06.2006] UZS18#..C MAHOGANY BROWN,TRIM20 |
71078-30610-E2 |
US $774.59 |
||
|
71078S
|
71078S
71078-30620-E2 Cover, Rear Seat Back, Lh(For Separate Type)[06.2004 - 06.2006] UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ）,MAHOGANY BROWN,TRIM20 |
71078-30620-E2 |
US $774.59 |
||
|
71078S
|
71078S
71078-30630-A1 Cover, Rear Seat Back, Lh(For Separate Type)[12.2003 - 06.2006] UZS18#..C シート表皮−本皮,NEW IVORY,TRIM0# |
71078-30630-A1 |
US $1,528.80 |
||
|
71078S
|
71078S
71078-30630-C0 Cover, Rear Seat Back, Lh(For Separate Type)[06.2004 - 06.2006] UZS18#..C シート表皮−本皮,BLACK,TRIM2# |
71078-30630-C0 |
US $1,528.80 |
||
|
71078S
|
71078S
71078-30660-A0 Cover, Rear Seat Back, Lh(For Separate Type)[06.2006 -] UZS18#..C IVORY,TRIM0# |
71078-30660-A0 |
US $774.59 |
||
|
71078S
|
71078S
71078-30660-E0 Cover, Rear Seat Back, Lh(For Separate Type)[06.2006 -] UZS18#..C MAHOGANY BROWN,TRIM2# |
71078-30660-E0 |
US $774.59 |
||
|
71078S
|
71078S
71078-30670-E0 Cover, Rear Seat Back, Lh(For Separate Type)[06.2006 -] UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ）,MAHOGANY BROWN,TRIM2# |
71078-30670-E0 |
US $1,004.64 |
||
|
71078S
|
71078S
71078-30680-C0 Cover, Rear Seat Back, Lh(For Separate Type)[06.2006 -] UZS18#..C シート表皮−本皮（プレミアム）,BLACK,TRIM2# |
71078-30680-C0 |
US $1,776.32 |
||
|
71266
|
71266
71266-30130 Gusset, Rear Seat Back Frame[12.2003 - 06.2006] UZS18#..C |
71266-30130 |
US $15.29 |
||
|
71305S
|
71305S
71360-30010 Frame Sub-Assy, Center Seat Back[12.2003 - 06.2006] UZS18#..C |
71360-30010 |
US $46.16 |
||
|
71611
|
71611
71503-30160 Pad, Rear Seat Cushion[12.2003 - 06.2006] UZS18# |
71503-30160 |
US $365.46 |
||
|
71611
|
71611
71503-30170 Pad, Rear Seat Cushion[12.2003 - 06.2006] UZS18#..C シート表皮−本皮 |
71503-30170 |
US $479.02 |
||
|
71651S
|
71651S
71651-30A00 Pad, Rear Seat Back, Rh(For Separate Type)[12.2003 - 06.2006] UZS18#..C |
71651-30A00 |
US $177.63 |
||
|
71652S
|
71652S
71652-30520 Pad, Rear Seat Back, Lh(For Separate Type)[12.2003 - 06.2006] UZS18#..C |
71652-30520 |
US $177.63 |
||
|
71652S
|
71652S
71652-30530 Pad, Rear Seat Back, Lh(For Separate Type)[06.2004 - 06.2006] UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ） |
71652-30530 |
US $177.63 |
||
|
71931A
|
71931A
71930-44020-A1 Support, Front Seat Headrest[05.2007 -] UZS18# ロック付,IVORY,TRIM0# |
71930-44020-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-44020-C0 Support, Front Seat Headrest[05.2007 -] UZS18# ロック付,BLACK,TRIM2# |
71930-44020-C0 |
US $11.01 |
||
|
71931A
|
71931A
71930-47010-A2 Support, Front Seat Headrest[12.2003 - 06.2006] UZS18# ロック付,IVORY,TRIM0# |
71930-47010-A2 |
US $13.98 |
||
|
71931A
|
71931A
71930-47010-C0 Support, Front Seat Headrest[12.2003 - 06.2006] UZS18# ロック付,BLACK,TRIM2# |
71930-47010-C0 |
US $13.98 |
||
|
71931A
|
71931A
71931-47010-A6 Support, Front Seat Headrest[06.2004 - 06.2006] UZS18# ロック無,IVORY,TRIM09 |
71931-47010-A6 |
US $8.59 |
||
|
71931A
|
71931A
71931-47010-C0 Support Assy, Rear Seat Legrest[06.2004 - 06.2006] UZS18# ロック無,BLACK,TRIM2# |
71931-47010-C0 |
US $6.74 |
||
|
71940A
|
71940A
71940-30A00-A0 Headrest Assy, Rear Seat[06.2004 - 06.2006] UZS18# IVORY,TRIM0# |
71940-30A00-A0 |
US $413.50 |
||
|
71940A
|
71940A
71940-30A00-E1 Headrest Assy, Rear Seat[06.2004 - 06.2006] UZS18# BLACK,TRIM2# |
71940-30A00-E1 |
US $413.50 |
||
|
71940A
|
71940A
71940-30A10-A1 Headrest Assy, Rear Seat[12.2003 - 06.2006] UZS18#..C シート表皮−本皮,NEW IVORY,TRIM0# |
71940-30A10-A1 |
US $544.54 |
||
|
71940A
|
71940A
71940-30A10-C0 Headrest Assy, Rear Seat[06.2004 - 06.2006] UZS18#..C シート表皮−本皮,BLACK,TRIM2# |
71940-30A10-C0 |
US $544.54 |
||
| replacement | |||||
|
71940A
|
71940A
71940-30B00-C0 Headrest Assy, Rear Seat[06.2004 - 06.2006] UZS18#..C シート表皮−本皮,BLACK,TRIM2# |
71940-30B00-C0 |
US $544.54 |
||
|
71940A
|
71940A
71940-30A90-A0 Headrest Assy, Rear Seat[06.2006 -] UZS18# IVORY,TRIM0# |
71940-30A90-A0 |
US $413.50 |
||
|
71940A
|
71940A
71940-30A90-E0 Headrest Assy, Rear Seat[06.2006 -] UZS18# MAHOGANY BROWN,TRIM2# |
71940-30A90-E0 |
US $413.50 |
||
|
71940A
|
71940A
71940-30B00-C0 Headrest Assy, Rear Seat[06.2006 -] UZS18#..C シート表皮−本皮（プレミアム）,BLACK,TRIM2# |
71940-30B00-C0 |
US $544.54 |
||
|
71970
|
71970
71960-30190-A0 Headrest Assy, Rear Seat[06.2006 -] UZS18#..C IVORY,TRIM0# |
71960-30190-A0 |
US $398.94 |
||
|
71970
|
71970
71960-30190-E0 Headrest Assy, Rear Seat[06.2006 -] UZS18#..C MAHOGANY BROWN,TRIM2# |
71960-30190-E0 |
US $398.94 |
||
|
71970
|
71970
71960-30230-A0 Headrest Assy, Rear Seat[06.2004 - 06.2006] UZS18#..C IVORY,TRIM0# |
71960-30230-A0 |
US $340.70 |
||
|
71970
|
71970
71960-30230-E1 Headrest Assy, Rear Seat[06.2004 - 06.2006] UZS18#..C MAHOGANY BROWN,TRIM20 |
71960-30230-E1 |
US $340.70 |
||
|
71970
|
71970
71960-30240-A1 Headrest Assy, Rear Seat[12.2003 - 06.2006] UZS18#..C シート表皮−本皮,NEW IVORY,TRIM0# |
71960-30240-A1 |
US $503.78 |
||
|
71970
|
71970
71960-30240-C0 Headrest Assy, Rear Seat[06.2004 - 06.2006] UZS18#..C シート表皮−本皮,BLACK,TRIM2# |
71960-30240-C0 |
US $503.78 |
||
|
71970
|
71970
71960-30300-C0 Headrest Assy, Rear Seat[06.2006 -] UZS18#..C シート表皮−本皮（プレミアム）,BLACK,TRIM2# |
71960-30300-C0 |
US $503.78 |
||
|
72693
|
72693
72693-12080 Hook, Rear Seat Cushion Lock[12.2003 - 06.2006] UZS18# |
72693-12080 |
from US $1.27 |
||
|
72730A
|
72730A
72730-30040 Adjuster Assy, Rear Seat Reclining, Rh[12.2003 - 06.2006] UZS18#..C |
72730-30040 |
US $573.66 |
||
|
72740A
|
72740A
72740-30040 Adjuster Assy, Rear Seat Reclining, Lh[12.2003 - 06.2006] UZS18#..C |
72740-30040 |
US $573.66 |
||
|
72861
|
72861
72861-30040-A0 Trim, Center Armrest Corner[06.2004 - 06.2006] UZS18#..C NEW IVORY,TRIM0# |
72861-30040-A0 |
US $125.22 |
||
|
72861
|
72861
72861-30040-C0 Trim, Center Armrest Corner[06.2004 - 06.2006] UZS18#..C BLACK,TRIM2#; UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ）,BLACK,TRIM2# |
72861-30040-C0 |
US $85.90 |
||
|
72978
|
72978
72978-30010-A0 Cover, No.2 Center Seat Back[06.2006 -] UZS18#..C NEW IVORY,TRIM0# |
72978-30010-A0 |
US $12.67 |
||
| replacement | |||||
|
72978
|
72978
72978-30010-C0 Cover, No.2 Center Seat Back[06.2006 -] UZS18#..C NEW IVORY,TRIM0# |
72978-30010-C0 |
US $12.67 |
||
|
72978
|
72978
72978-30010-C0 Cover, No.2 Center Seat Back[06.2006 -] UZS18#..C BLACK,TRIM2# |
72978-30010-C0 |
US $12.67 |
||
|
72996
|
72996
72996-50100-A2 Cover, Rear Seat Back, Rh[12.2003 - 06.2006] UZS18#..C NEW IVORY,TRIM0# |
72996-50100-A2 |
US $2.91 |
||
|
72996
|
72996
72996-50100-C0
Cover, Rear Seat Back, Rh
[06.2004 - 06.2006] UZS18#..C BLACK,TRIM2# |
72996-50100-C0 |
— | ||
| replacement | |||||
|
72996
|
72996
72996-50100-C1 Cover, Rear Seat Back, Rh[06.2004 - 06.2006] UZS18#..C BLACK,TRIM2# |
72996-50100-C1 |
US $2.87 |
||
|
73705
|
73705
73705-30030 Bracket Sub-Assy, Child Restraint Seat Anchor, Rh[12.2003 - 06.2006] UZS18# |
73705-30030 |
US $16.16 |
||
|
73706
|
73706
73706-30030 Bracket Sub-Assy, Child Restraint Seat Anchor, Lh[12.2003 - 06.2006] UZS18# |
73706-30030 |
US $16.16 |
||
|
85820X
|
85820X
85820-33020 Motor Assy, Power Seat[12.2003 - 06.2006] UZS18#..C |
85820-33020 |
US $235.87 |
||
|
85890A
|
85890A
85890-30020 Vibrator Assy, Seat[06.2004 - 06.2006] UZS18#..C フロントシート−オットマン機能付（助手席）＆シート バイブレータ−有り（後席 左側 のみ） |
85890-30020 |
US $527.07 |
||
|
87519A
|
87519A
87519-30020 Bracket, Seat Heater Connector Clamp[12.2003 - 06.2006] UZS18#..C シート表皮−本皮 |
87519-30020 |
US $3.49 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9011908C20
|
9011908C20
90119-08C20 BOLT WWASHER |
90119-08C20 |
from US $0.80 |
||
|
9011908C37
|
9011908C37
90119-08C37 BOLT WWASHER |
90119-08C37 |
US $1.43 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9017905004
|
9017905004
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.92 |
||
|
9054104019
|
9054104019
90541-04019 New Genuine Part |
90541-04019 |
US $1.46 |
||
|
9151180814
|
9151180814
91511-80814 New Genuine Part |
91511-80814 |
US $1.65 |
||
|
9151180816
|
9151180816
91511-80816 BOLTFLANGE |
91511-80816 |
US $1.61 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
