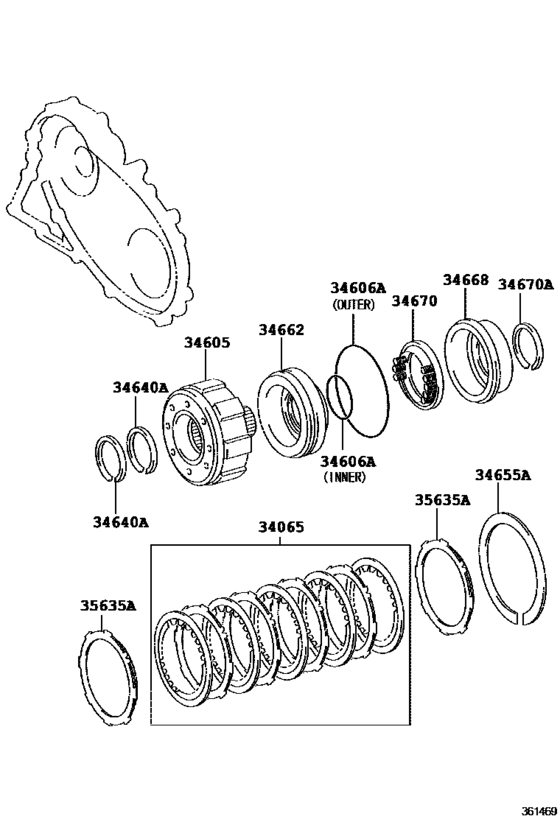

Transfer Direct Clutch, Low Brake & Support ([12.2003 - ] (0312- )GRS181,183,UZS187) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34065
|
34065
34065-30010 Disc Set, Center Differential Clutch[06.2004 - 06.2006] UZS187 |
34065-30010 |
US $183.46 |
||
|
34605
|
34605
34605-30010 Drum Sub-Assy, Transfer Direct Clutch[06.2004 - 06.2006] UZS187 |
34605-30010 |
US $365.46 |
||
|
34606A
|
34606A
90301-56004 Ring, O (For Transfer Direct Clutch Piston)[06.2004 - 06.2006] UZS187 内側 |
90301-56004 |
US $2.18 |
||
|
34606A
|
34606A
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[06.2004 - 06.2006] UZS187 外側 |
90301-99058 |
US $3.58 |
||
|
34640A
|
34640A
35617-30030 Ring, Seal(For Transfer Center Support)[12.2003 - 06.2006] GRS181,183,UZS187 |
35617-30030 |
US $5.10 |
||
|
34655A
|
34655A
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[12.2003 - 06.2006] GRS181,183,UZS187 |
90521-99001 |
US $4.54 |
||
|
34662
|
34662
34662-30010 Piston, Center Differential Clutch[06.2004 - 06.2006] UZS187 |
34662-30010 |
US $32.91 |
||
|
34668
|
34668
34668-30010 Balancer, Center Differential Clutch Pressure[06.2004 - 06.2006] UZS187 |
34668-30010 |
US $18.78 |
||
|
34670
|
34670
34670-30010 Spring Assy, Transfer Direct Clutch Return[06.2004 - 06.2006] UZS187 |
34670-30010 |
US $30.87 |
||
|
34670A
|
34670A
90520-53002 Ring, Snap (For Transfer Direct Clutch Return Spring)[06.2004 - 06.2006] UZS187 |
90520-53002 |
US $1.75 |
||
|
35635A
|
35635A
35635-30070 Flange, Forward Clutch[06.2004 - 06.2006] UZS187 厚さ＝３．４，マーク ９２ |
35635-30070 |
US $27.08 |
||
|
35635A
|
35635A
35635-30080 Flange, Forward Clutch[06.2004 - 06.2006] UZS187 厚さ＝３．２，マーク ９１ |
35635-30080 |
US $27.08 |
||
|
35635A
|
35635A
35635-30090 Flange, Transfer Direct Clutch[06.2004 - 06.2006] UZS187 厚さ＝３．０，マーク ９０ |
35635-30090 |
US $27.08 |
