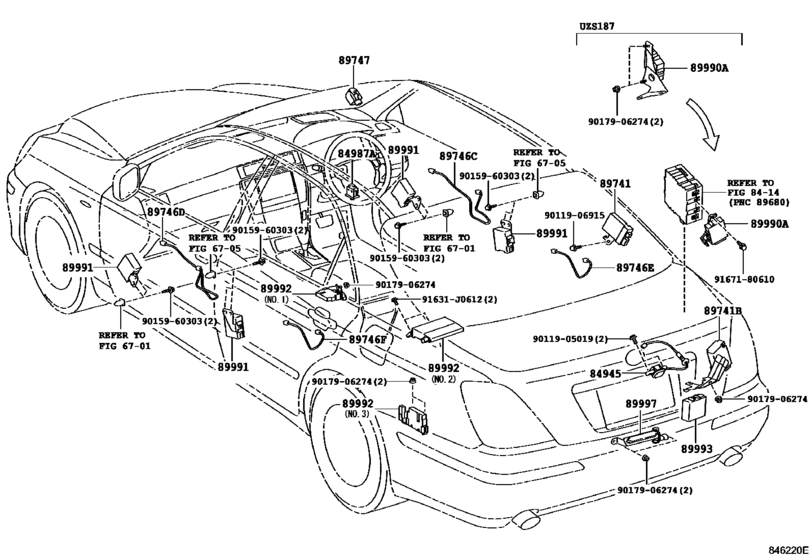

Wireless Door Lock ([06.2004 - 06.2006] (0406-0606)UZS18#) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- Japan
- Frame
- UZS187
- grade
- C
- body
- SED
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 06.2004
- To
- 12.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84945
|
84945
84945-30010 Switch, Luggage Electrical Key[12.2003 - 06.2006] GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
84945-30010 |
US $61.99 |
||
|
84987A
|
84987A
84987-50060 Switch, Keyless Entry Cancel[06.2004 - 06.2006] GRS181,UZS18#..A,ATH,C |
84987-50060 |
US $41.35 |
||
|
89741
|
89741
89740-30050 Receiver, Door Control[06.2004 - 06.2006] UZS18#; UZS18# Ｇ−ＢＯＯＫ−プレミアム |
89740-30050 |
US $250.43 |
||
|
89741B
|
89741B
89740-30060 Receiver, Door Control, No.2[06.2004 - 06.2006] UZS18#; UZS18# Ｇ−ＢＯＯＫ−プレミアム |
89740-30060 |
US $250.43 |
||
|
89741B
|
89741B
89740-30170 Receiver, Door Control, No.2[06.2006 -] UZS18# |
89740-30170 |
US $250.43 |
||
|
89746C
|
89746C
89746-30010 Harness, Electrical Key Wire, No.1[12.2003 - 06.2006] UZS18# |
89746-30010 |
US $34.80 |
||
|
89746C
|
89746C
89746-30110 Harness, Electrical Key Wire, No.1[06.2006 - 11.2006] UZS18# |
89746-30110 |
US $60.72 |
||
| replacement | |||||
|
89746C
|
89746C
89746-30112 Harness, Electrical Key Wire, No.1[06.2006 - 11.2006] UZS18# |
89746-30112 |
US $60.72 |
||
|
89746C
|
89746C
89746-30111 Harness, Electrical Key Wire, No.1[12.2006 - 03.2007] GRS18#..ATH,ROY,ROYG; GRS181..ROYEX Ｑパッケージ; UZS18# |
89746-30111 |
US $60.72 |
||
| replacement | |||||
|
89746C
|
89746C
89746-30112 Harness, Electrical Key Wire, No.1[12.2006 - 03.2007] GRS18#..ATH,ROY,ROYG; GRS181..ROYEX Ｑパッケージ; UZS18# |
89746-30112 |
US $60.72 |
||
|
89746C
|
89746C
89746-30112 Harness, Electrical Key Wire, No.1[04.2007 -] UZS18# |
89746-30112 |
US $60.72 |
||
|
89746D
|
89746D
89746-30020 Harness, Electrical Key Wire, No.2[12.2003 - 06.2006] UZS18# |
89746-30020 |
US $34.80 |
||
|
89746D
|
89746D
89746-30120 Harness, Electrical Key Wire, No.2[06.2006 - 11.2006] UZS18# |
89746-30120 |
US $60.72 |
||
| replacement | |||||
|
89746D
|
89746D
89746-30122 Harness, Electrical Key Wire, No.2[06.2006 - 11.2006] UZS18# |
89746-30122 |
US $60.72 |
||
|
89746D
|
89746D
89746-30121 Harness, Electrical Key Wire, No.2[12.2006 - 03.2007] GRS18#..ATH,ROY,ROYG; GRS181..ROYEX Ｑパッケージ; UZS18# |
89746-30121 |
US $60.72 |
||
| replacement | |||||
|
89746D
|
89746D
89746-30122 Harness, Electrical Key Wire, No.2[12.2006 - 03.2007] GRS18#..ATH,ROY,ROYG; GRS181..ROYEX Ｑパッケージ; UZS18# |
89746-30122 |
US $60.72 |
||
|
89746D
|
89746D
89746-30122 Harness, Electrical Key Wire, No.2[04.2007 -] UZS18# |
89746-30122 |
US $60.72 |
||
|
89746E
|
89746E
89746-30030 Harness, Electrical Key Wire, No.3[12.2003 - 06.2006] UZS18# |
89746-30030 |
US $17.76 |
||
|
89746E
|
89746E
89746-30130 Harness, Electrical Key Wire, No.3[06.2006 - 11.2006] UZS18# |
89746-30130 |
US $52.27 |
||
| replacement | |||||
|
89746E
|
89746E
89746-30131 Harness, Electrical Key Wire, No.3[06.2006 - 11.2006] UZS18# |
89746-30131 |
US $52.27 |
||
|
89746E
|
89746E
89746-30131 Harness, Electrical Key Wire, No.3[12.2006 -] UZS18# |
89746-30131 |
US $52.27 |
||
|
89746F
|
89746F
89746-30030 Harness, Electrical Key Wire, No.3[12.2003 - 06.2006] UZS18# |
89746-30030 |
US $17.76 |
||
|
89746F
|
89746F
89746-30130 Harness, Electrical Key Wire, No.3[06.2006 - 11.2006] UZS18# |
89746-30130 |
US $52.27 |
||
| replacement | |||||
|
89746F
|
89746F
89746-30131 Harness, Electrical Key Wire, No.3[06.2006 - 11.2006] UZS18# |
89746-30131 |
US $52.27 |
||
|
89746F
|
89746F
89746-30131 Harness, Electrical Key Wire, No.3[12.2006 -] UZS18# |
89746-30131 |
US $52.27 |
||
|
89747
|
89747
89747-48020 Buzzer, Clearance Warning, No.2[12.2003 - 06.2006] UZS18#; UZS18# Ｇ−ＢＯＯＫ−プレミアム |
89747-48020 |
US $39.02 |
||
|
89990A
|
89990A
89990-30050 Computer Assy, Smart Key[06.2004 - 06.2006] UZS187 |
89990-30050 |
US $550.37 |
||
|
89990A
|
89990A
89990-30130
Computer Assy, Smart Key
[06.2006 -] UZS18# |
89990-30130 |
— | ||
|
89991
|
89991
89991-30010 Oscillator, Door Electrical Key[12.2003 - 11.2004] GRS18#,UZS18#..A,ATH,C,ROY,ROYG フロント右側 |
89991-30010 |
US $198.02 |
||
| replacement | |||||
|
89991
|
89991
89991-30012 Oscillator, Door Electrical Key[12.2003 - 11.2004] GRS18#,UZS18#..A,ATH,C,ROY,ROYG フロント右側 |
89991-30012 |
US $164.53 |
||
|
89991
|
89991
89991-30011 Oscillator, Door Electrical Key[11.2004 - 06.2006] UZS18# フロント右側 |
89991-30011 |
US $164.53 |
||
| replacement | |||||
|
89991
|
89991
89991-30012 Oscillator, Door Electrical Key[11.2004 - 06.2006] UZS18# フロント右側 |
89991-30012 |
US $164.53 |
||
|
89991
|
89991
89991-30020 Oscillator, Door Electrical Key[12.2003 - 11.2004] GRS18#,UZS18#..A,ATH,C,ROY,ROYG フロント左側 |
89991-30020 |
US $198.02 |
||
| replacement | |||||
|
89991
|
89991
89991-30022 Oscillator, Door Electrical Key[12.2003 - 11.2004] GRS18#,UZS18#..A,ATH,C,ROY,ROYG フロント左側 |
89991-30022 |
US $164.53 |
||
|
89991
|
89991
89991-30021 Oscillator, Door Electrical Key[11.2004 - 06.2006] UZS18# フロント左側 |
89991-30021 |
US $164.53 |
||
| replacement | |||||
|
89991
|
89991
89991-30022 Oscillator, Door Electrical Key[11.2004 - 06.2006] UZS18# フロント左側 |
89991-30022 |
US $164.53 |
||
|
89991
|
89991
89991-30030 Oscillator, Door Electrical Key[12.2003 - 11.2004] GRS18#,UZS18#..A,ATH,C,ROY,ROYG リヤ |
89991-30030 |
US $198.02 |
||
| replacement | |||||
|
89991
|
89991
89991-30032 Oscillator, Door Electrical Key[12.2003 - 11.2004] GRS18#,UZS18#..A,ATH,C,ROY,ROYG リヤ |
89991-30032 |
US $164.53 |
||
|
89991
|
89991
89991-30031 Oscillator, Door Electrical Key[11.2004 - 06.2006] UZS18# リヤ |
89991-30031 |
US $164.53 |
||
| replacement | |||||
|
89991
|
89991
89991-30032 Oscillator, Door Electrical Key[11.2004 - 06.2006] UZS18# リヤ |
89991-30032 |
US $164.53 |
||
|
89991
|
89991
89991-30040 Oscillator, Door Electrical Key[06.2006 -] UZS18# 左側 |
89991-30040 |
US $132.79 |
||
|
89991
|
89991
89991-30050 Oscillator, Door Electrical Key[06.2006 -] UZS18# 右側 |
89991-30050 |
US $123.76 |
||
|
89992
|
89992
89992-30010 Oscillator, Indoor Electrical Key[12.2003 - 06.2006] UZS18# ＮＯ．１ |
89992-30010 |
US $262.08 |
||
|
89992
|
89992
89992-30020 Oscillator, Indoor Electrical Key[12.2003 - 06.2006] UZS18# ＮＯ．２ |
89992-30020 |
US $262.08 |
||
|
89992
|
89992
89992-30030 Oscillator, Indoor Electrical Key[12.2003 - 06.2006] UZS18# ＮＯ．３ |
89992-30030 |
US $262.08 |
||
|
89992
|
89992
89992-30090 Oscillator, Indoor Electrical Key[06.2006 -] UZS18# ＮＯ．１ |
89992-30090 |
from US $174.72 |
||
|
89992
|
89992
89992-30100 Oscillator, Indoor Electrical Key[06.2006 -] UZS18# ＮＯ．２ |
89992-30100 |
US $216.94 |
||
|
89992
|
89992
89992-30110 Oscillator, Indoor Electrical Key[06.2006 -] UZS18# ＮＯ．３ |
89992-30110 |
US $216.94 |
||
|
89993
|
89993
89993-30020 Oscillator, Luggage Electrical Key[06.2004 - 04.2005] UZS18# |
89993-30020 |
US $198.02 |
||
| replacement | |||||
|
89993
|
89993
89993-30023 Oscillator, Luggage Electrical Key[06.2004 - 04.2005] UZS18# |
89993-30023 |
US $164.53 |
||
|
89993
|
89993
89993-30021 Oscillator, Luggage Electrical Key[05.2005 - 06.2006] UZS18# |
89993-30021 |
US $164.53 |
||
| replacement | |||||
|
89993
|
89993
89993-30023 Oscillator, Luggage Electrical Key[05.2005 - 06.2006] UZS18# |
89993-30023 |
US $164.53 |
||
|
89997
|
89997
89997-30020 Antenna, Electrical Key[12.2003 - 06.2006] UZS18# |
89997-30020 |
US $193.12 |
||
|
89997
|
89997
89997-41010 Antenna, Electrical Key[06.2006 -] UZS18# |
89997-41010 |
US $106.60 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9011905019
|
9011905019
90119-05019 New Genuine Part |
90119-05019 |
US $2.33 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $1.08 |
||
