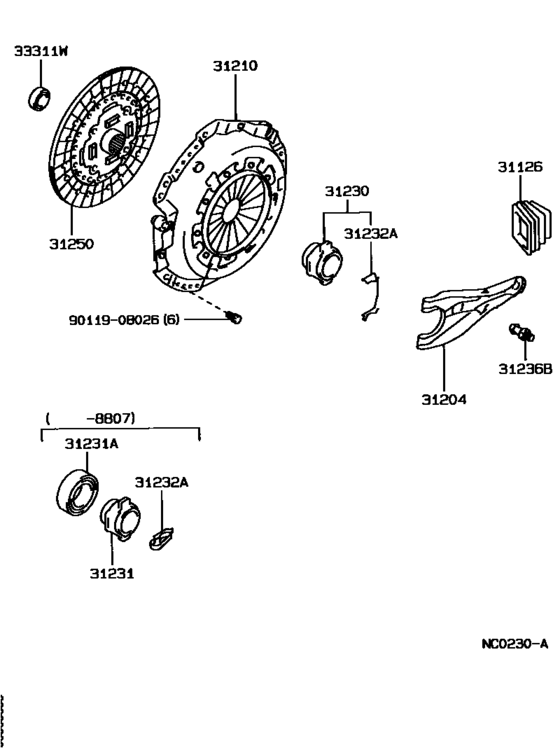

Clutch & Release Fork ([09.1987 - ] (8709- )YS132) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- YS132
- grade
- STD
- body
- SED
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20060 Boot, Clutch Release Fork[09.1987 - 10.1991] YS132 |
31126-20060 |
from US $15.02 |
||
|
31204
|
31204
31204-20071 Fork Sub-Assy, Clutch Release[09.1987 - 10.1991] YS132 |
31204-20071 |
from US $21.58 |
||
|
31210
|
31210
31210-14130 Cover Assy, Clutch[09.1987 - 08.1988] YS132 |
31210-14130 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[09.1987 - 08.1988] YS132 |
31210-22101 |
from US $155.47 |
||
|
31210
|
31210
31210-35090
Cover Assy, Clutch
[08.1988 - 08.1989] YS132 |
31210-35090 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[08.1988 - 08.1989] YS132 |
31210-22101 |
from US $155.47 |
||
|
31230
|
31230
31230-35090
Bearing Assy, Clutch Release
[07.1988 - 10.1991] GS131,MS132,133,YS132..MTM |
31230-35090 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-35091 Bearing Assy, Clutch Release[07.1988 - 10.1991] GS131,MS132,133,YS132..MTM |
31230-35091 |
from US $50.16 |
||
|
31231
|
31231
31231-36070 Hub, Clutch Release Bearing[09.1987 - 07.1988] MS132,133,YS132..MTM |
31231-36070 |
from US $26.60 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[09.1987 - 07.1988] LS130,MS132,133,YS132..MTM |
90363-40022 |
from US $41.80 |
||
|
31232A
|
31232A
31232-22010 Clip Or Spring, Release Bearing Hub[09.1987 - 07.1988] LS130,MS132,133,YS132..MTM |
31232-22010 |
from US $0.82 |
||
|
31232A
|
31232A
31232-35020 Clip Or Spring, Release Bearing Hub[07.1988 - 08.1989] LS130 NSK BEARING; GS131,MS132,133,YS132..MTM |
31232-35020 |
from US $2.62 |
||
|
31232A
|
31232A
31232-35040 Clip Or Spring, Release Bearing Hub[11.1989 - 10.1991] GS131,MS132,133,YS132..MTM KOYO BEARING |
31232-35040 |
US $3.32 |
||
|
31236B
|
31236B
31236-30060 Ball, Release Fork[09.1987 - 10.1991] GS131,LS130,MS132,133,YS132..MTM |
31236-30060 |
from US $10.24 |
||
|
31250
|
31250
31250-25122
Disc Assy, Clutch
[09.1988 - 10.1991] YS132 |
31250-25122 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-20242 Disc Assy, Clutch[09.1988 - 10.1991] YS132 |
31250-20242 |
from US $147.52 |
||
|
31250
|
31250
31250-26091
Disc Assy, Clutch
[09.1987 - 09.1988] YS132 |
31250-26091 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-20242 Disc Assy, Clutch[09.1987 - 09.1988] YS132 |
31250-20242 |
from US $147.52 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[09.1987 - 10.1991] LS130,MS132,133,YS132..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[09.1987 - 10.1991] LS130,MS132,133,YS132..MTM |
90363-12024 |
from US $5.91 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
