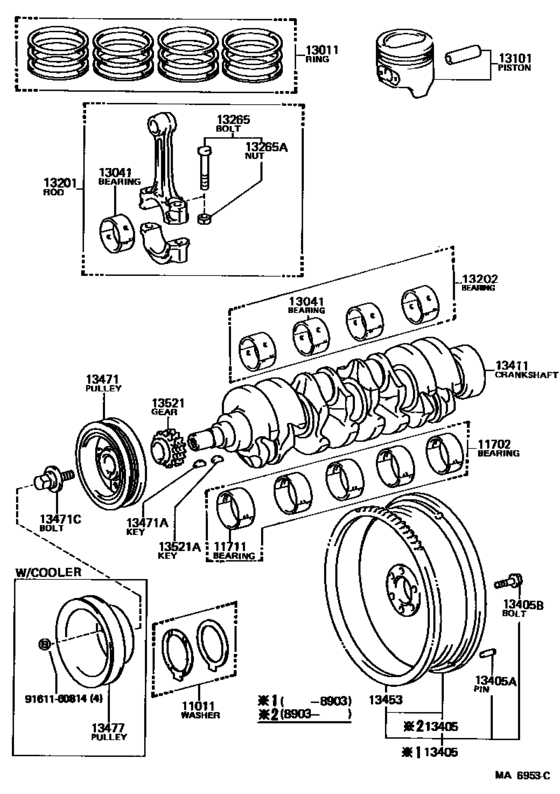

Crankshaft & Piston ([09.1987 - ] (8709- )4Y) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- YS132
- grade
- STD
- body
- SED
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[09.1987 - 10.1991] 4Y..YS132 STD |
11011-25010 |
from US $20.67 |
||
|
11702
|
11702
11704-71020 Bearing Set, Crankshaft (0.25)[09.1987 - 10.1991] 4Y..YS132 U/S 0.25 |
11704-71020 |
US $206.17 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[09.1987 - 10.1991] 4Y..YS132 MARK 1 |
11701-71020-01 |
US $45.43 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[09.1987 - 10.1991] 4Y..YS132 MARK 2 |
11701-71020-02 |
US $45.43 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[09.1987 - 10.1991] 4Y..YS132 MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
13011
|
13011
13011-73031 Ring Set, PistonPISTON [09.1987 - 10.1991] 4Y..YS132 STD |
13011-73031 |
US $237.33 |
||
| replacement | |||||
|
13011
|
13011
13011-73032 Ring Set, PistonPISTON [09.1987 - 10.1991] 4Y..YS132 STD |
13011-73032 |
from US $147.21 |
||
|
13011
|
13011
13013-73031 Ring Set, PistonPISTON [09.1987 - 10.1991] 4Y..YS132 O/S 0.50 |
13013-73031 |
US $237.33 |
||
| replacement | |||||
|
13011
|
13011
13013-73032 Ring Set, PistonPISTON [09.1987 - 10.1991] 4Y..YS132 O/S 0.50 |
13013-73032 |
from US $154.95 |
||
|
13041
|
13041
13041-71011-06
Bearing, Connecting Rod
[08.1989 - 10.1991] 4Y..YS132 MARK 6 |
13041-71011-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[08.1989 - 10.1991] 4Y..YS132 MARK 6 |
13041-73010-06 |
from US $18.54 |
||
|
13041
|
13041
13041-71011-07
Bearing, Connecting Rod
[08.1989 - 10.1991] 4Y..YS132 MARK 7 |
13041-71011-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[08.1989 - 10.1991] 4Y..YS132 MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71011-08
Bearing, Connecting Rod
[08.1989 - 10.1991] 4Y..YS132 MARK 8 |
13041-71011-08 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[08.1989 - 10.1991] 4Y..YS132 MARK 8 |
13041-73010-08 |
US $35.38 |
||
|
13101
|
13101
13101-73031 Piston Sub-Assy, W/pinW/PIN [09.1987 - 01.1988] 4Y..YS132 STD |
13101-73031 |
US $101.92 |
||
| replacement | |||||
|
13101
|
13101
13101-73031-02 Piston Sub-Assy, W/pinW/PIN [09.1987 - 01.1988] 4Y..YS132 STD |
13101-73031-02 |
US $76.01 |
||
|
13101
|
13101
13101-73031-01 Piston Sub-Assy, W/pinW/PIN [01.1988 - 10.1991] 4Y..YS132 STD,MARK 1 |
13101-73031-01 |
US $81.54 |
||
|
13101
|
13101
13101-73031-02 Piston Sub-Assy, W/pinW/PIN [01.1988 - 10.1991] 4Y..YS132 STD,MARK 2 |
13101-73031-02 |
US $76.01 |
||
|
13101
|
13101
13101-73031-03 Piston Sub-Assy, W/pinW/PIN [01.1988 - 10.1991] 4Y..YS132 STD,MARK 3 |
13101-73031-03 |
US $81.54 |
||
|
13101
|
13101
13103-73030
Piston Sub-Assy, W/pin
[09.1987 - 08.1989] 4Y..YS132 O/S 0.50 |
13103-73030 |
— | ||
|
13101
|
13101
13103-73031 Piston Sub-Assy, W/pinW/PIN [08.1989 - 10.1991] 4Y..YS132 O/S 0.50 |
13103-73031 |
from US $59.85 |
||
|
13201
|
13201
13201-79045 Rod Sub-Assy, Connecting[09.1987 - 08.1989] 4Y..YS132 |
13201-79045 |
US $168.90 |
||
| replacement | |||||
|
13201
|
13201
13201-79046 Rod Sub-Assy, Connecting[09.1987 - 08.1989] 4Y..YS132 |
13201-79046 |
US $168.90 |
||
|
13202
|
13202
13204-71011
Bearing Set, Connecting Rod
[08.1988 - 10.1991] 4Y..YS132 U/S 0.25 |
13204-71011 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-73010 Bearing Set, Connecting Rod (0.25)[08.1988 - 10.1991] 4Y..YS132 U/S 0.25 |
13204-73010 |
from US $90.09 |
||
|
13202
|
13202
13204-71021 Bearing Set, Connecting Rod[09.1987 - 08.1988] 4Y..YS132 U/S 0.25 |
13204-71021 |
US $168.90 |
||
| replacement | |||||
|
13202
|
13202
13204-73010 Bearing Set, Connecting Rod (0.25)[09.1987 - 08.1988] 4Y..YS132 U/S 0.25 |
13204-73010 |
from US $90.09 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[09.1987 - 08.1989] 4Y..YS132 |
13265-29025 |
from US $9.67 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[09.1987 - 10.1991] 4Y..YS132 |
90170-09001 |
US $2.72 |
||
|
13405
|
13405
13405-72010
Flywheel Sub-Assy
[09.1987 - 03.1989] 4Y..YS132 |
13405-72010 |
— | ||
| replacement | |||||
|
13405
|
13405
13405-72011 Flywheel Sub-Assy[09.1987 - 03.1989] 4Y..YS132 |
13405-72011 |
US $347.98 |
||
|
13405
|
13405
13405-72011 Flywheel Sub-Assy[03.1989 - 10.1991] 4Y..YS132 |
13405-72011 |
US $347.98 |
||
|
13405
|
13405
13405-79045 Flywheel Sub-Assy[09.1987 - 03.1989] 4Y..YS132 |
13405-79045 |
US $355.26 |
||
| replacement | |||||
|
13405
|
13405
13405-72011 Flywheel Sub-Assy[09.1987 - 03.1989] 4Y..YS132 |
13405-72011 |
US $347.98 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[09.1987 - 10.1991] 2L..LS130 L=23,OD=8; 4Y..YS132 L=23,OD=8; 1GFE..GS131..5F L=23,OD=8; 5M#..MS132,133..MTM L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[09.1987 - 10.1991] 4Y..YS132; 1GFE..GS131..5F; 5M#..MS132,133..MTM |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-73010 Crankshaft[09.1987 - 10.1991] 4Y..YS132 |
13411-73010 |
US $1,316.22 |
||
| replacement | |||||
|
13411
|
13411
13411-73900 Crankshaft[09.1987 - 10.1991] 4Y..YS132 |
13411-73900 |
US $1,316.22 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[09.1987 - 10.1991] 4Y..YS132; 1GFE..GS131..5F; 5M#..MS132,133..MTM |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-71010 Pulley, Crankshaft[09.1987 - 10.1991] 4Y..YS132 |
13408-71010 |
US $206.17 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[09.1987 - 10.1991] 4Y..YS132 |
90280-05010 |
from US $1.83 |
||
|
13471C
|
13471C
90105-14013 Bolt(For Crankshaft Pulley Set)[09.1987 - 01.1989] 4Y..YS132 |
90105-14013 |
US $17.04 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[09.1987 - 01.1989] 4Y..YS132 |
90105-14069 |
US $14 |
||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[01.1989 - 10.1991] 4Y..YS132 |
90105-14069 |
US $14 |
||
|
13477
|
13477
88451-28010
Pulley, Crankshaft, No.2
[09.1987 - 10.1991] 4Y..YS132 |
88451-28010 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[09.1987 - 10.1991] 4Y..YS132 |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[09.1987 - 10.1991] 4Y..YS132 |
90280-05010 |
from US $1.83 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
