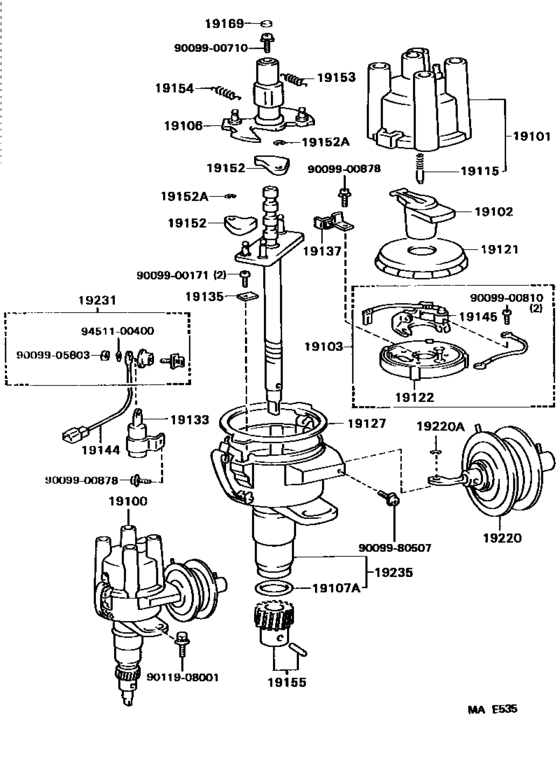

Distributor ([10.1990 - ] (9010- )4Y) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- YS132
- grade
- STD
- body
- SED
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-73060
Distributor Assy
[09.1987 - 10.1991] 4Y..YS132 |
19100-73060 |
— | ||
|
19101
|
19101
19101-71020 Cap Sub-Assy, Distributor[09.1987 - 10.1991] 4Y..YS132 |
19101-71020 |
US $42.98 |
||
|
19102
|
19102
19102-26151 Rotor Sub-Assy, Distributor[09.1987 - 03.1989] 4Y..YS132 |
19102-26151 |
US $17.33 |
||
|
19102
|
19102
19102-73060
Rotor Sub-Assy, Distributor
[03.1989 - 10.1991] 4Y..YS132 |
19102-73060 |
— | ||
|
19103
|
19103
19103-26211 Breaker Sub-Assy, Distributor[09.1987 - 10.1991] 4Y..YS132 |
19103-26211 |
US $55.18 |
||
|
19106
|
19106
19106-34090 Cam Sub-Assy, DistributorDISTRIBUTOR [09.1987 - 10.1990] 4Y..YS132 |
19106-34090 |
US $24.90 |
||
| replacement | |||||
|
19106
|
19106
19106-73020 Cam Sub-Assy, DistributorDISTRIBUTOR [09.1987 - 10.1990] 4Y..YS132 |
19106-73020 |
US $39.02 |
||
|
19106
|
19106
19106-73020 Cam Sub-Assy, DistributorDISTRIBUTOR [10.1990 - 10.1991] 4Y..YS132 |
19106-73020 |
US $39.02 |
||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[09.1987 - 10.1990] 4Y..YS132 |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[09.1987 - 10.1990] 4Y..YS132 |
90099-14090 |
from US $2.80 |
||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[03.1991 - 10.1991] 4Y..YS132 |
90099-14090 |
from US $2.80 |
||
|
19107A
|
19107A
90099-14106
Ring, O, Distributor Housing
[10.1990 - 03.1991] 4Y..YS132 |
90099-14106 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[10.1990 - 03.1991] 4Y..YS132 |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[09.1987 - 08.1989] 4Y..YS132; 5M#,7MGE..MS13# |
19115-50010 |
— | ||
|
19121
|
19121
19121-38030
Cover, Dust Proof
[09.1987 - 10.1991] 4Y..YS132 |
19121-38030 |
— | ||
|
19122
|
19122
19122-26211
Plate, Stationary, Distributor
[09.1987 - 10.1991] 4Y..YS132 |
19122-26211 |
— | ||
|
19127
|
19127
19127-15010
Packing, Dust Proof
[09.1987 - 10.1991] 4Y..YS132 |
19127-15010 |
— | ||
|
19133
|
19133
90099-52070
Condenser, Distributor
[09.1987 - 10.1991] 4Y..YS132 |
90099-52070 |
— | ||
|
19135
|
19135
90099-02198
Plate, Holder
[08.1989 - 10.1991] 4Y..YS132 |
90099-02198 |
— | ||
|
19137
|
19137
19137-33012
Spring Sub-Assy, Damper
[09.1987 - 10.1991] 4Y..YS132 |
19137-33012 |
— | ||
|
19144
|
19144
19144-34180
Lead, Distributor Breaker
[09.1987 - 09.1988] 4Y..YS132 |
19144-34180 |
— | ||
| replacement | |||||
|
19144
|
19144
19144-34190
Lead, Distributor Breaker
[09.1987 - 09.1988] 4Y..YS132 |
19144-34190 |
— | ||
|
19144
|
19144
19144-34190
Lead, Distributor Breaker
[09.1988 - 10.1991] 4Y..YS132 |
19144-34190 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[09.1987 - 10.1991] 4Y..YS132; 5M..MS132 |
19145-26060 |
from US $17.02 |
||
|
19152
|
19152
19152-63010
Weight, Governor
[11.1987 - 10.1991] 1GFE..GS131; 4Y..YS132; 5M..MS132..GCC |
19152-63010 |
— | ||
|
19152
|
19152
19152-71010 Weight, Governor[09.1987 - 11.1987] 4Y..YS132 |
19152-71010 |
US $12.38 |
||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[09.1987 - 10.1991] 4Y..YS132; 5M..MS132..GCC |
90099-07122 |
— | ||
|
19153
|
19153
19153-73040 Spring, Governor, AGOVERNOR, A [09.1987 - 10.1991] 4Y..YS132 |
19153-73040 |
US $5.24 |
||
|
19154
|
19154
19154-73040 Spring, Governor, BGOVERNOR, B [09.1987 - 10.1991] 4Y..YS132 |
19154-73040 |
US $5.24 |
||
|
19155
|
19155
19195-71011 Gear, Spiral, Distributor[09.1987 - 10.1991] 4Y..YS132 |
19195-71011 |
US $41.93 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[09.1987 - 10.1991] 1GFE..GS131; 5M#..MS132,133; 4Y..YS132 |
19169-63011 |
— | ||
|
19220
|
19220
19220-73060
Advancer Assy, Vacuum, Distributor
[09.1987 - 10.1990] 4Y..YS132 |
19220-73060 |
— | ||
|
19220
|
19220
19220-73100 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [10.1990 - 10.1991] 4Y..YS132 |
19220-73100 |
US $97.55 |
||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[09.1987 - 10.1991] 1GFE..GS131; 4Y..YS132 |
90099-07109 |
— | ||
|
19231
|
19231
19231-24140
Terminal, Distributor
[09.1987 - 10.1991] 4Y..YS132; 5M..MS132 |
19231-24140 |
— | ||
|
19235
|
19235
19235-71020 Housing, DistributorDISTRIBUTOR [10.1990 - 10.1991] 4Y..YS132 |
19235-71020 |
US $190.74 |
||
|
9009900171
|
9009900171
90099-00171
New Genuine Part
|
90099-00171 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900810
|
9009900810
90099-00810
SCREW
|
90099-00810 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9009980507
|
9009980507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9011908001
|
9011908001
90119-08001 New Genuine Part |
90119-08001 |
US $2.56 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
