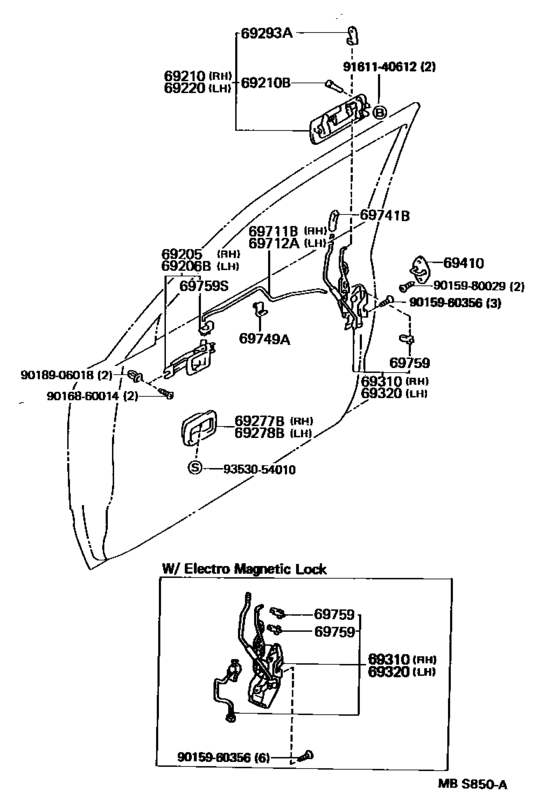

Front Door Lock & Handle ([08.1989 - ] (8908- )SED,WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- YS132
- grade
- STD
- body
- SED
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-30040 Handle Sub-Assy, Front Door Inside, Rh[09.1987 - 12.1988] LS130,MS132,135,YS132..SED,WG |
69205-30040 |
US $27.08 |
||
| replacement | |||||
|
69205
|
69205
69205-30041 Handle Sub-Assy, Front Door Inside, Rh[09.1987 - 12.1988] LS130,MS132,135,YS132..SED,WG |
69205-30041 |
US $27.08 |
||
|
69205
|
69205
69205-30041 Handle Sub-Assy, Front Door Inside, Rh[12.1988 - 08.1989] GS131,LS130,MS132,135,YS132..SED,WG |
69205-30041 |
US $27.08 |
||
|
69206B
|
69206B
69206-30040 Handle Sub-Assy, Front Door Inside, Lh[09.1987 - 12.1988] LS130,MS132,135,YS132..SED,WG |
69206-30040 |
US $27.08 |
||
| replacement | |||||
|
69206B
|
69206B
69206-30041 Handle Sub-Assy, Front Door Inside, Lh[09.1987 - 12.1988] LS130,MS132,135,YS132..SED,WG |
69206-30041 |
US $27.08 |
||
|
69206B
|
69206B
69206-30041 Handle Sub-Assy, Front Door Inside, Lh[12.1988 - 08.1989] GS131,LS130,MS132,135,YS132..SED,WG |
69206-30041 |
US $27.08 |
||
|
69210
|
69210
69210-30150 Handle Assy, Front Door, Outside Rh[09.1987 - 01.1988] LS130,MS132,135,YS132..SED,WG |
69210-30150 |
US $90.27 |
||
| replacement | |||||
|
69210
|
69210
69210-30160 Handle Assy, Front Door, Outside Rh[09.1987 - 01.1988] LS130,MS132,135,YS132..SED,WG |
69210-30160 |
US $90.27 |
||
|
69210
|
69210
69210-30160 Handle Assy, Front Door, Outside Rh[01.1988 - 10.1991] GS131,LS130,MS13#,YS132 |
69210-30160 |
US $90.27 |
||
|
69210B
|
69210B
90541-04014 Cushion, Console Box[09.1987 - 08.1989] GS131,LS130,MS13#,YS132 |
90541-04014 |
from US $1.29 |
||
|
69220
|
69220
69220-30130 Handle Assy, Front Door Outside, Lh[09.1987 - 01.1988] LS130,MS132,135,YS132..SED,WG |
69220-30130 |
US $90.27 |
||
| replacement | |||||
|
69220
|
69220
69220-30150 Handle Assy, Front Door Outside, Lh[09.1987 - 01.1988] LS130,MS132,135,YS132..SED,WG |
69220-30150 |
US $90.27 |
||
|
69220
|
69220
69220-30150 Handle Assy, Front Door Outside, Lh[01.1988 - 10.1991] GS131,LS130,MS13#,YS132 |
69220-30150 |
US $90.27 |
||
|
69277B
|
69277B
69277-30060-02 Bezel, Front Door Inside Handle, Rh[09.1987 - 08.1989] GS131,LS130,MS132,135,YS132..SED,WG MAROON,TRIM3# |
69277-30060-02 |
US $15.97 |
||
|
69277B
|
69277B
69277-30060-04
Bezel, Front Door Inside Handle, Rh
[09.1987 - 10.1991] MS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD BLUE,TRIM8# |
69277-30060-04 |
— | ||
|
69278B
|
69278B
69277-30060-02 Bezel, Front Door Inside Handle, Rh[09.1987 - 08.1989] GS131,LS130,MS132,135,YS132..SED,WG MAROON,TRIM3# |
69277-30060-02 |
US $15.97 |
||
|
69278B
|
69278B
69277-30060-04
Bezel, Front Door Inside Handle, Rh
[09.1987 - 10.1991] MS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD BLUE,TRIM8# |
69277-30060-04 |
— | ||
|
69293A
|
69293A
69293-12050 Snap, Front Door Outside Handle[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 RH |
69293-12050 |
US $3.20 |
||
|
69293A
|
69293A
69293-12060 Snap, Front Door Outside Handle[09.1987 - 01.1988] LS130,MS13#,YS132 LH |
69293-12060 |
US $3.20 |
||
|
69310
|
69310
69310-30660 Lock Assy, Front Door, Rh[09.1987 - 10.1991] LS130,MS132,YS132..LHD..STD; MS132..DLX..GCC SAUDI TAXI SPEC |
69310-30660 |
US $133.95 |
||
| replacement | |||||
|
69310
|
69310
69310-30690 Lock Assy, Front Door, Rh[09.1987 - 10.1991] LS130,MS132,YS132..LHD..STD; MS132..DLX..GCC SAUDI TAXI SPEC |
69310-30690 |
US $132.50 |
||
|
69320
|
69320
69320-30640 Lock Assy, Front Door, Lh[09.1987 - 10.1991] LS130,MS132,YS132..LHD..STD; MS132..DLX..GCC SAUDI TAXI SPEC |
69320-30640 |
US $131.04 |
||
| replacement | |||||
|
69320
|
69320
69320-30670 Lock Assy, Front Door, Lh[09.1987 - 10.1991] LS130,MS132,YS132..LHD..STD; MS132..DLX..GCC SAUDI TAXI SPEC |
69320-30670 |
US $132.50 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 |
69410-87001 |
US $11.36 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 |
69410-AA020 |
US $37.29 |
||
|
69711B
|
69711B
69711-30100 Link, Front Door Lock Remote Control, Rh[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..SED,WG |
69711-30100 |
US $9.03 |
||
|
69712A
|
69712A
69712-30110 Link, Front Door Lock Remote Control, Lh[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..SED,WG |
69712-30110 |
US $9.03 |
||
|
69741B
|
69741B
69741-30030-22 Knob, Front Door Lock Control[09.1987 - 08.1989] GS131,LS130,MS132,135,YS132..SED,WG MAROON,TRIM3# |
69741-30030-22 |
US $4.51 |
||
| replacement | |||||
|
69741B
|
69741B
69741-30030-B0 Knob, Front Door Lock Control[09.1987 - 08.1989] GS131,LS130,MS132,135,YS132..SED,WG MAROON,TRIM3# |
69741-30030-B0 |
US $4.37 |
||
|
69741B
|
69741B
69741-30030-24 Knob, Front Door Lock Control[09.1987 - 10.1991] MS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD DARK BLUE,TRIM8# |
69741-30030-24 |
US $4.51 |
||
| replacement | |||||
|
69741B
|
69741B
69741-30030-B0 Knob, Front Door Lock Control[09.1987 - 10.1991] MS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD DARK BLUE,TRIM8# |
69741-30030-B0 |
US $4.37 |
||
|
69749A
|
69749A
69749-30020 Clamp, No.1(For Back Door Lock Control Cable)[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 |
69749-30020 |
US $4.48 |
||
|
69759
|
69759
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[09.1987 - 08.1989] LS130,MS132,YS132..(DLX,STD)..GEN LH; MS132..DLX..GCC SAUDI TAXI SPEC,LH |
69759-24050 |
from US $3.84 |
||
|
69759
|
69759
69759-24060 Snap(For Rear Door Lock)[09.1987 - 08.1989] LS130,MS132,YS132..(DLX,STD)..GEN RH; MS132..DLX..GCC SAUDI TAXI SPEC,RH |
69759-24060 |
from US $4.64 |
||
|
69759S
|
69759S
69759-24010 Snap(For Rear Door Inside Handle)[09.1987 - 08.1989] GS131,LS130,MS13#,YS132 LH |
69759-24010 |
from US $2.22 |
||
|
69759S
|
69759S
69759-24020 Snap(For Rear Door Inside Handle)[09.1987 - 08.1989] GS131,LS130,MS13#,YS132 RH |
69759-24020 |
from US $2.88 |
||
|
9015960356
|
9015960356
90159-60356 New Genuine Part |
90159-60356 |
US $1.92 |
||
|
9015980029
|
9015980029
90159-80029 New Genuine Part |
90159-80029 |
US $0.61 |
||
|
9016860014
|
9016860014
90168-60014 New Genuine Part |
90168-60014 |
US $1.60 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.80 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
