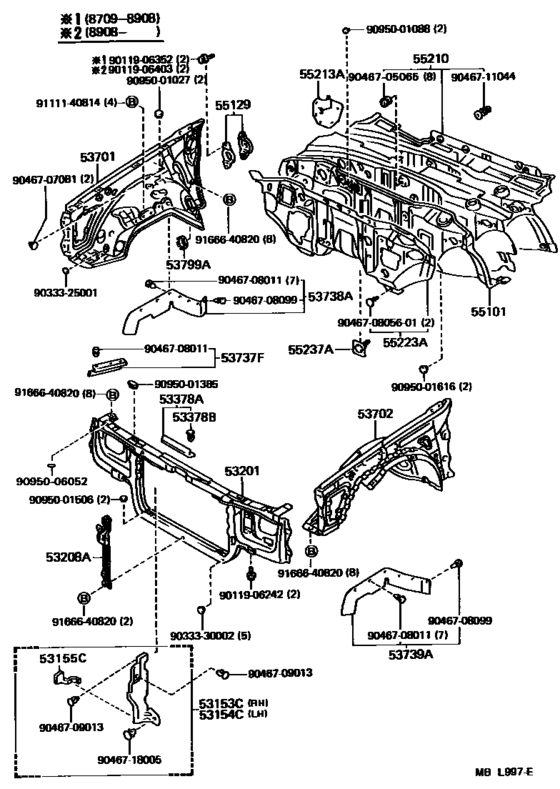

Front Fender Apron & Dash Panel ([09.1987 - ] (8709- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- YS132
- grade
- STD
- body
- SED
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-30910 Support Sub-Assy, Radiator[09.1987 - 10.1991] LS130,MS132,YS132..4F,4H,4HC; MS132,133..SED..SAL..GEN W(STEEL BUMPER) |
53201-30910 |
US $569.30 |
||
|
53201
|
53201
53201-30911 Support Sub-Assy, Radiator[09.1987 - 10.1991] LS130,MS132,YS132..4F,4H,4HC W(SMALL URETHANE BUMPER) |
53201-30911 |
US $551.82 |
||
|
53208A
|
53208A
53209-30080 Support Sub-Assy, Hood Lock[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..SED,WG |
53209-30080 |
US $32.76 |
||
|
53701
|
53701
53701-30840 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [09.1987 - 10.1991] MS132,YS132..LHD |
53701-30840 |
US $586.77 |
||
|
53702
|
53702
53702-30520 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [09.1987 - 10.1991] GS131,MS13#,YS132..LHD..(SED,WG) |
53702-30520 |
US $591.14 |
||
|
53737F
|
53737F
53737-30040 Seal, Front Fender To Frame, No.2[09.1987 - 10.1991] LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
53737-30040 |
US $8.30 |
||
|
53738A
|
53738A
53738-30060 Seal, Front Fender Apron, Rear Rh[09.1987 - 05.1990] GS131,LS130,MS13#,YS132 |
53738-30060 |
US $53 |
||
|
53739A
|
53739A
53739-30040 Seal, Front Fender Apron, Rear Lh[09.1987 - 05.1990] GS131,LS130,MS13#,YS132 |
53739-30040 |
US $53 |
||
|
53799A
|
53799A
53799-30021 Cover, Front Fender Apron(For Service Hole)[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 |
53799-30021 |
US $9.46 |
||
|
55101
|
55101
55101-3A050 Panel Sub-Assy, DashDASH [09.1987 - 10.1991] YS132 |
55101-3A050 |
US $426.61 |
||
|
55129
|
55129
55129-30010 Cover, Dash Panel Hole[09.1987 - 10.1991] LS130,MS132,YS132 |
55129-30010 |
US $23.88 |
||
|
55210
|
55210
55211-30470 Insulator Assy, Dash PanelDASH PANEL [08.1989 - 10.1991] GS131,LS130,MS13#,YS132..LHD |
55211-30470 |
US $410.59 |
||
|
55210
|
55210
55211-30480 Insulator Assy, Dash PanelDASH PANEL [09.1987 - 08.1989] LS130,MS132,133,YS132..LHD..MTM |
55211-30480 |
US $410.59 |
||
|
55213A
|
55213A
55213-30290 Pad, Dash Panel SilencerDASH PANEL SILENCER [09.1987 - 10.1991] GS131,LS130,MS13#,YS132..LHD..(4F,4FC,5F) |
55213-30290 |
US $49.36 |
||
|
55223A
|
55223A
55223-30080 Insulator, Dash Panel, OuterDASH PANEL, OUTER [04.1989 - 06.1989] YS132..4F 011PHILIPPINE SPEC |
55223-30080 |
US $643.55 |
||
|
9011906242
|
9011906242
90119-06242 New Genuine Part |
90119-06242 |
US $0.70 |
||
|
9011906352
|
9011906352
90119-06352
New Genuine Part
|
90119-06352 |
— | ||
| replacement | |||||
|
9011906352
|
9011906352
90119-06430 BOLT WWASHER |
90119-06430 |
from US $1.54 |
||
|
9011906403
|
9011906403
90119-06403 BOLT W-WASHER |
90119-06403 |
from US $0.80 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.31 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9046705065
|
9046705065
90467-05065 New Genuine Part |
90467-05065 |
US $2.62 |
||
|
9046707081
|
9046707081
90467-07081 CLIP |
90467-07081 |
US $0.96 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.36 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.31 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $3.60 |
||
|
9046708099
|
9046708099
90467-08099 Clip, Radiator Support To Frame |
90467-08099 |
US $1.60 |
||
|
9046709013
|
9046709013
90467-09013 Clip, Step Plate Cover |
90467-09013 |
from US $1.60 |
||
|
9046711044
|
9046711044
90467-11044 New Genuine Part |
90467-11044 |
US $3.20 |
||
|
9046718005
|
9046718005
90467-18005
New Genuine Part
|
90467-18005 |
— | ||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001088
|
9095001088
90950-01088
Plug, Hole, No.4(For Dash Panel)
|
90950-01088 |
— | ||
|
9095001385
|
9095001385
90950-01385 New Genuine Part |
90950-01385 |
US $3.64 |
||
|
9095001506
|
9095001506
90950-01506 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01506 |
US $1.92 |
||
|
9095001616
|
9095001616
90950-01616 New Genuine Part |
90950-01616 |
US $5.48 |
||
|
9095006052
|
9095006052
90950-06052 New Genuine Part |
90950-06052 |
US $3.14 |
||
|
9111140814
|
9111140814
91111-40814
Bolt (for Transmission Control Cable Bracket)
|
91111-40814 |
— | ||
| replacement | |||||
|
9111140814
|
9111140814
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9166640820
|
9166640820
91666-40820
New Genuine Part
|
91666-40820 |
— | ||
| replacement | |||||
|
9166640820
|
9166640820
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
|
904670805601
|
904670805601
90467-08056-01 Clip(For Front Floor Carpet) |
90467-08056-01 |
US $1.89 |
||
| replacement | |||||
|
904670805601
|
904670805601
90467-08056-C0 Clip |
90467-08056-C0 |
from US $0.82 |
||
