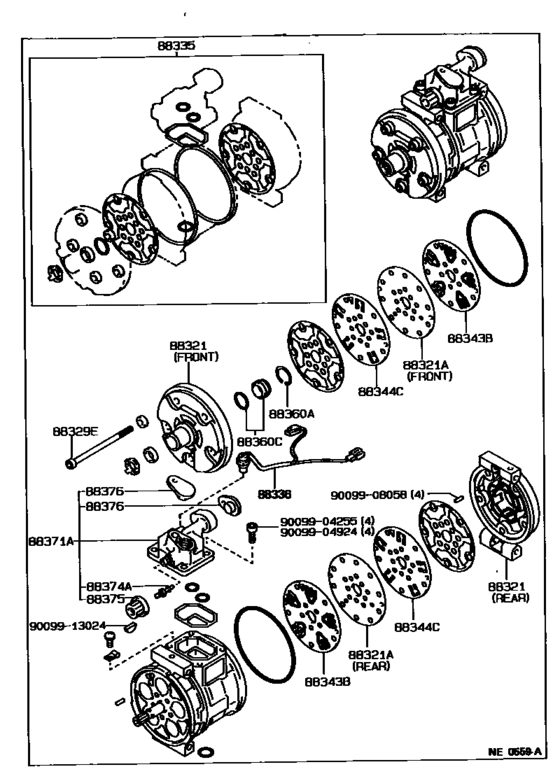

Heating & Air Conditioning - Compressor ([09.1987 - ] (8709- )LS130,MS13#,YS132) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- YS132
- grade
- STD
- body
- SED
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88321
|
88321
88321-14011
Head, Cooler Compressor Cylinder
[09.1987 - 10.1989] LS130,YS132 FRONT |
88321-14011 |
— | ||
|
88321
|
88321
88322-14011
Head, Cooler Compressor Cylinder
[09.1987 - 10.1989] LS130,YS132 REAR |
88322-14011 |
— | ||
|
88321A
|
88321A
88341-14010
Plate Sub-Assy, Valve
[09.1987 - 10.1989] LS130,YS132 FRONT |
88341-14010 |
— | ||
|
88321A
|
88321A
88342-14010
Plate Sub-Assy, Valve
[09.1987 - 10.1989] LS130,YS132 REAR |
88342-14010 |
— | ||
|
88329E
|
88329E
90099-04968
Bolt, Through
[09.1987 - 08.1989] YS132;LS130..RHD |
90099-04968 |
— | ||
|
88335
|
88335
88335-12030
Gasket Kit, Overhaul
[09.1987 - 08.1989] LS130,YS132 |
88335-12030 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-28020
Gasket Kit, Overhaul
[09.1987 - 08.1989] LS130,YS132 |
88335-28020 |
— | ||
|
88343B
|
88343B
88343-14011
Reed, Suction Valve
[09.1987 - 08.1989] LS130,YS132 |
88343-14011 |
— | ||
|
88344C
|
88344C
88344-14011
Reed Sub-Assy, Valve
[09.1987 - 08.1989] LS130,YS132 |
88344-14011 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[09.1987 - 08.1989] MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-40010
Seal Assy, Cooler Compressor Shaft
[09.1987 - 08.1989] LS130,YS132 |
88360-40010 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-26020
Seal Assy, Cooler Compressor Shaft
[09.1987 - 08.1989] LS130,YS132 |
88360-26020 |
— | ||
|
88371A
|
88371A
88371-30410
Valve, Suction
[09.1987 - 10.1991] YS132 |
88371-30410 |
— | ||
|
88374A
|
88374A
88374-12020
Valve, Service, No.1
[09.1987 - 08.1989] MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 |
88374-12020 |
— | ||
| replacement | |||||
|
88374A
|
88374A
88374-20020 Valve, Service, No.1[09.1987 - 08.1989] MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 |
88374-20020 |
US $5.12 |
||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[09.1987 - 10.1991] MS132..4F;LS130,MS135,YS132;MS132,133..DLX,ROY,SAL,SALEX |
88375-30270 |
— | ||
|
88376
|
88376
88376-22010
Cap, Blind
[09.1987 - 08.1989] MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 DISCHARGE |
88376-22010 |
— | ||
|
88376
|
88376
88376-22020
Cap, Blind
[09.1987 - 08.1989] MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 SUCTION |
88376-22020 |
— | ||
|
9009904255
|
9009904255
90099-04255
Bolt, Service Valve
|
90099-04255 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
|
9009913024
|
9009913024
90099-13024
Key, Compressor Crankshaft
|
90099-13024 |
— | ||
