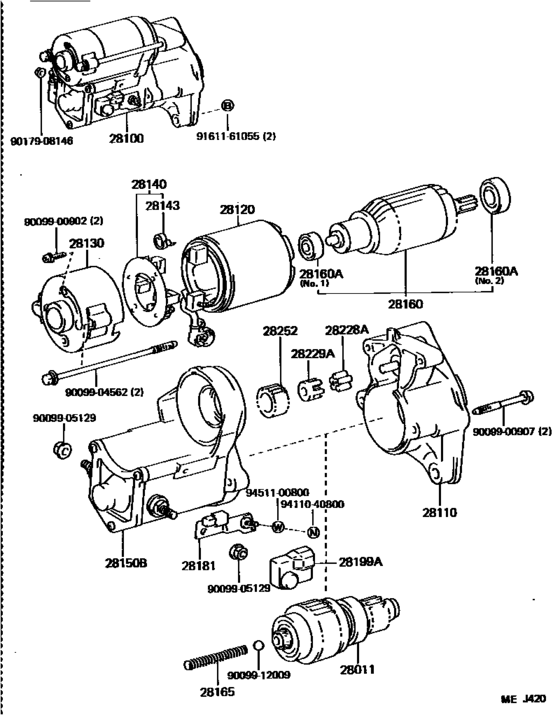

Starter ([09.1987 - ] 12V 1.0KW (8709- )4Y) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- YS132
- grade
- STD
- body
- SED
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[09.1987 - 10.1991] 5M#,7MGE,4Y..MS13#,YS132 |
28011-26042 |
— | ||
|
28100
|
28100
28100-72030 Starter Assy[09.1987 - 10.1991] 4Y..YS132 12V 1.0KW |
28100-72030 |
US $1,275.46 |
||
| replacement | |||||
|
28100
|
28100
28100-72040 Starter Assy[09.1987 - 10.1991] 4Y..YS132 12V 1.0KW |
28100-72040 |
US $1,485.12 |
||
|
28110
|
28110
28110-72030 Housing Assy, Starter Drive[09.1987 - 10.1991] 4Y..YS132 |
28110-72030 |
US $88.82 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[09.1987 - 10.1991] 5M#,7MGE,4Y..MS13#,YS132 |
28120-26071 |
— | ||
|
28130
|
28130
28130-72030 Frame Assy, Starter Commutator End[09.1987 - 10.1991] 4Y..YS132 |
28130-72030 |
US $31.74 |
||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[09.1987 - 10.1991] 5M#,7MGE,4Y..MS13#,YS132 |
28140-26070 |
US $16.77 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[09.1987 - 08.1989] 5M#,7MGE,4Y..MS13#,YS132 |
90099-17112 |
— | ||
|
28150B
|
28150B
28150-72030 Switch Assy, Magnet Starter[09.1987 - 10.1991] 4Y..YS132 |
28150-72030 |
US $291.20 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[09.1987 - 08.1989] 5M#,7MGE,4Y..MS13#,YS132 |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[09.1987 - 08.1989] 5M#,7MGE,4Y..MS13#,YS132 |
28160-26071 |
— | ||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1989 - 10.1991] 5M#,7MGE,4Y..MS13#,YS132 |
28160-26071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[09.1987 - 10.1991] 5M#,7MGE,4Y..MS13#,YS132 NO.1 |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[09.1987 - 10.1991] 5M#,7MGE,4Y..MS13#,YS132 NO.2 |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[09.1987 - 10.1991] 2L,5M#,7MGE,4Y..LS130,MS13#,YS132 |
28165-26040 |
— | ||
|
28181
|
28181
28181-72030
Terminal, Starter
[09.1987 - 10.1991] 4Y..YS132 |
28181-72030 |
— | ||
|
28199A
|
28199A
28199-72030
Cover, Starter End Frame
[09.1987 - 10.1991] 4Y..YS132 |
28199-72030 |
— | ||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[09.1987 - 10.1991] 2L,5M#,7MGE,4Y..LS130,MS13#,YS132 |
28228-26040 |
— | ||
|
28229A
|
28229A
28229-26040
Retainer, Starter Idle Gear
[09.1987 - 10.1991] 2L,5M#,7MGE,4Y..LS130,MS13#,YS132 |
28229-26040 |
— | ||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[09.1987 - 10.1991] 5M#,7MGE,4Y..MS13#,YS132 |
28254-45020 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161055
|
9161161055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $2.72 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
