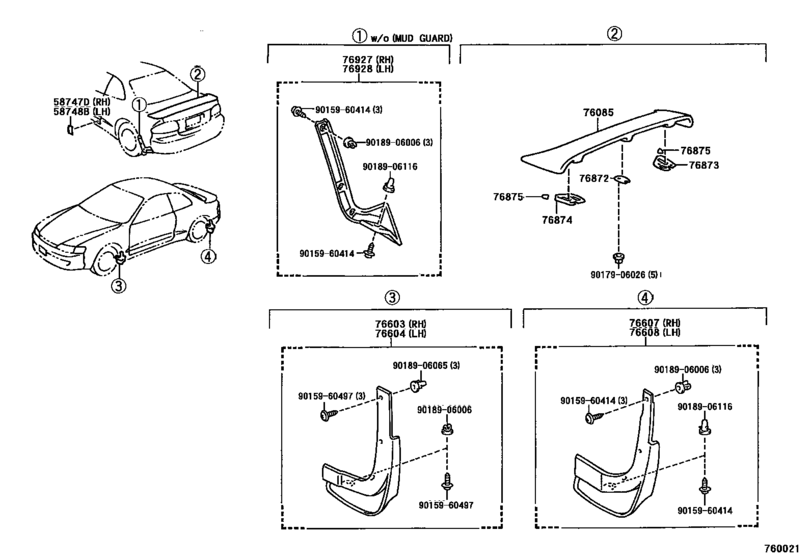

Mudguard & Spoiler ([02.1994 - 09.1995] (9402-9509)) Diagram Toyota CURREN
- Year
- 1994 - 1995
- Sales region
- Japan
- Frame
- ST206
- grade
- FS
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 09.1995
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58747D
|
58747D
58747-20020 Protector, Quarter Panel, Rear Rh[02.1994 -] ST20# |
58747-20020 |
US $11.07 |
||
|
58748B
|
58748B
58748-20020 Protector, Quarter Panel, Rear Lh[02.1994 -] ST20# |
58748-20020 |
US $11.07 |
||
|
76085
|
76085
76085-20916 Spoiler Sub-Assy, Rear[02.1994 - 09.1995] ST20# |
76085-20916 |
US $742.56 |
||
|
76603
|
76603
76621-29165
Mudguard Sub-Assy, Front Fender, Rh
[02.1994 -] ST20# |
76621-29165 |
— | ||
|
76604
|
76604
76622-29165
Mudguard Sub-Assy, Front Fender, Lh
[02.1994 -] ST20# |
76622-29165 |
— | ||
|
76607
|
76607
76625-29195
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[02.1994 -] ST20# |
76625-29195 |
— | ||
|
76608
|
76608
76626-29195
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[02.1994 -] ST20# |
76626-29195 |
— | ||
|
76872
|
76872
76872-20160 Protector, Rear Spoiler, No.1[02.1994 - 09.1995] ST20# |
76872-20160 |
US $2.77 |
||
| replacement | |||||
|
76872
|
76872
76872-20210 Protector, Rear Spoiler, No.1[02.1994 - 09.1995] ST20# |
76872-20210 |
US $5.24 |
||
|
76873
|
76873
76873-20140 Protector, Rear Spoiler, No.2[02.1994 - 09.1995] ST20# |
76873-20140 |
US $5.97 |
||
|
76874
|
76874
76874-20150 Protector, Rear Spoiler, No.3[02.1994 - 09.1995] ST20# |
76874-20150 |
US $5.97 |
||
|
76875
|
76875
76875-20090 Protector, Rear Spoiler, No.4[02.1994 -] ST20# |
76875-20090 |
US $6.70 |
||
|
76927
|
76927
76927-29015
Protecter, Rear Mudguard, Rh
[02.1994 -] ST20# |
76927-29015 |
— | ||
|
76928
|
76928
76928-29015
Protecter, Rear Mudguard, Lh
[02.1994 -] ST20# |
76928-29015 |
— | ||
|
9015960414
|
9015960414
90159-60414 SCREW WWASHER |
90159-60414 |
from US $1.07 |
||
|
9015960497
|
9015960497
90159-60497 SCREW WWASHER |
90159-60497 |
from US $0.78 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.80 |
||
|
9018906116
|
9018906116
90189-06116 CLIP |
90189-06116 |
from US $1.56 |
||
