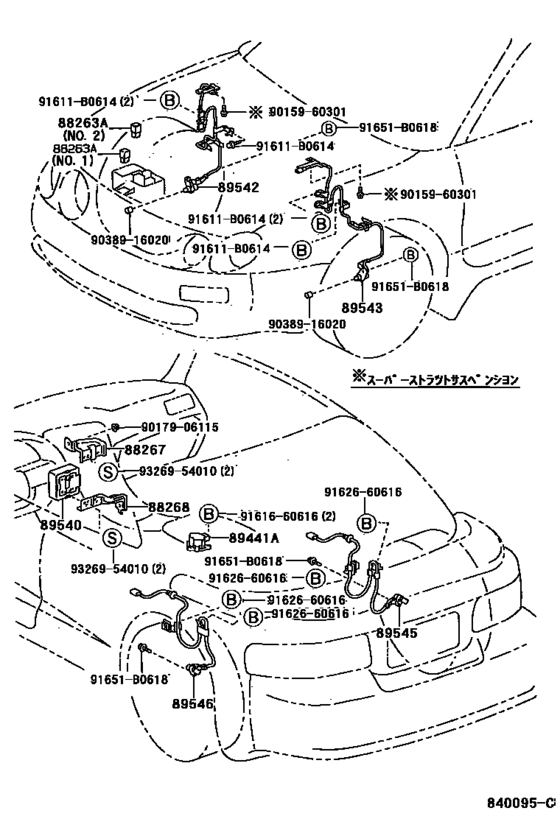

Abs & Vsc ([09.1995 - ] (9509- )) Diagram Toyota CURREN
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- ST208
- grade
- TS
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 09.1995
- To
- 07.1998
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88263A
|
88263A
88263-14110 Relay Assy, Circuit Opening (For Esc)[09.1995 -] ST20# ＮＯ．１ |
88263-14110 |
US $56.54 |
||
|
88263A
|
88263A
88263-24030 Relay, Skid Control[02.1994 -] ST20# ＮＯ．２ |
88263-24030 |
from US $43.41 |
||
|
88267
|
88267
88267-20160 Bracket, Skid Control Computer, No.1[09.1995 -] ST20# |
88267-20160 |
US $6.70 |
||
|
88268
|
88268
88268-20140 Bracket, Skid Control Computer, No.2[09.1995 -] ST20# |
88268-20140 |
US $6.70 |
||
|
89540
|
89540
89541-20160 Computer Assy, Skid Control[09.1995 - 12.1997] ST20# |
89541-20160 |
US $808.08 |
||
|
89540
|
89540
89541-20190 Computer Assy, Skid Control[12.1997 -] ST20# |
89541-20190 |
US $808.08 |
||
|
89542
|
89542
89542-20110
Sensor, Speed, Front Rh
[09.1995 -] ST20# |
89542-20110 |
— | ||
|
89543
|
89543
89543-20110
Sensor, Speed, Front Lh
[09.1995 -] ST20# |
89543-20110 |
— | ||
|
89545
|
89545
89545-20120
Sensor, Speed, Rear Rh
[09.1995 -] ST20# |
89545-20120 |
— | ||
|
89546
|
89546
89546-20120 Sensor, Speed, Rear Lh[09.1995 -] ST20# |
89546-20120 |
US $292.66 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9015960301
|
9015960301
90159-60301 New Genuine Part |
90159-60301 |
US $0.96 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9038916020
|
9038916020
90389-16020 New Genuine Part |
90389-16020 |
US $1.05 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.44 |
||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
