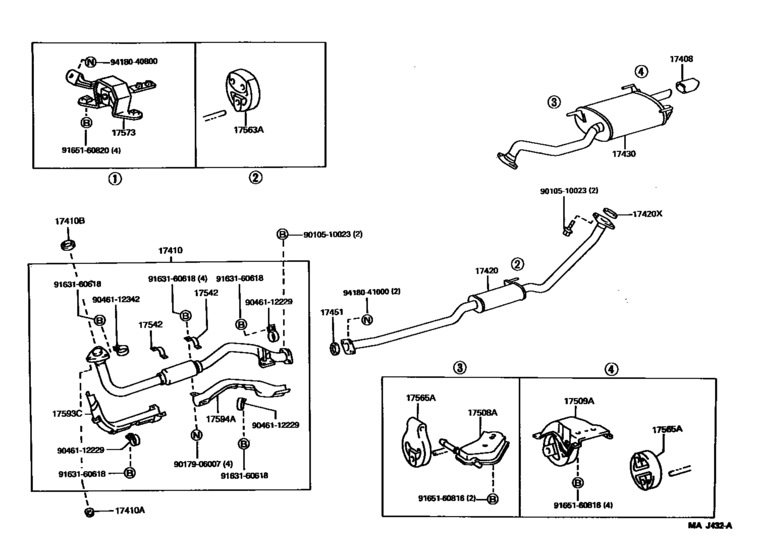

Exhaust Pipe ([09.1995 - ] (9509- )4SFE) Diagram Toyota CURREN
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- ST208
- grade
- TS
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 09.1995
- To
- 07.1998
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17408
|
17408
17408-74050
Baffle Sub Assy, Exhaust Tail Pipe
[02.1994 - 12.1997] 3S#,4SFE..ST20# |
17408-74050 |
— | ||
|
17410
|
17410
17410-7A222 Pipe Assy, Exhaust, Front[09.1995 -] 4SFE..ST208 |
17410-7A222 |
US $334.88 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[02.1994 - 12.1997] 3S#,4SFE..ST20# |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[02.1994 - 12.1997] 3S#,4SFE..ST20# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06066 Gasket, Exhaust Pipe[09.1995 -] 4SFE..ST208 |
90917-06066 |
from US $5.05 |
||
|
17420
|
17420
17420-74730 Pipe Assy, Exhaust, Center[09.1995 -] 4SFE..ST208 |
17420-74730 |
US $416.42 |
||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[02.1994 - 12.1997] 3S#,4SFE..ST20# |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[02.1994 - 12.1997] 3S#,4SFE..ST20# |
90080-43028 |
US $19.44 |
||
|
17430
|
17430
17430-7A320 Pipe Assy, Exhaust, Tail[02.1994 - 12.1997] 3SFE,4SFE..ST20# |
17430-7A320 |
US $499.41 |
||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[09.1995 -] 4SFE..ST208 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[09.1995 -] 4SFE..ST208 |
90080-43028 |
US $19.44 |
||
|
17508A
|
17508A
17508-74080
Bracket Sub-Assy, Exhaust Pipe No.3 Support
[02.1994 - 12.1997] 3S#,4SFE..ST20# |
17508-74080 |
— | ||
|
17509A
|
17509A
17509-74140
Bracket Sub-Assy, Exhaust Pipe No.4 Support
[02.1994 - 12.1997] 3S#,4SFE..ST20# |
17509-74140 |
— | ||
|
17542
|
17542
17542-11040 Stay, Exhaust Pipe Protector, No.2[09.1995 -] 4SFE..ST208 |
17542-11040 |
US $9.03 |
||
|
17563A
|
17563A
17565-64180 Support, Exhaust Pipe, No.3[02.1994 - 12.1997] 3S#,4SFE..ST20# |
17565-64180 |
US $15.52 |
||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[02.1994 - 12.1997] 3S#,4SFE..ST20# フロント |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[02.1994 - 12.1997] 3S#,4SFE..ST20# フロント |
17565-28020 |
US $7.04 |
||
|
17565A
|
17565A
17565-74290 Support, Exhaust Pipe, No.2[02.1994 - 12.1997] 3S#,4SFE..ST20# リヤ |
17565-74290 |
from US $7.22 |
||
|
17573
|
17573
17573-74150
Bracket, Exhaust Pipe No.1 Support, Lower
[02.1994 - 12.1997] 3S#,4SFE..ST20# |
17573-74150 |
— | ||
|
17593C
|
17593C
17593-74570 Protector, Exhaust Pipe, Lower No.1[09.1995 -] 4SFE..ST208 |
17593-74570 |
US $32.61 |
||
|
17594A
|
17594A
17594-74510 Protector, Exhaust Pipe, Lower No.2[09.1995 -] 4SFE..ST208 |
17594-74510 |
US $39.17 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046112229
|
9046112229
90461-12229 Clamp |
90461-12229 |
US $6.08 |
||
|
9046112342
|
9046112342
90461-12342 New Genuine Part |
90461-12342 |
US $6.12 |
||
|
9163160618
|
9163160618
91631-60618 BOLT WWASHER |
91631-60618 |
US $1.46 |
||
| replacement | |||||
|
9163160618
|
9163160618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.86 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
US $2.40 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
