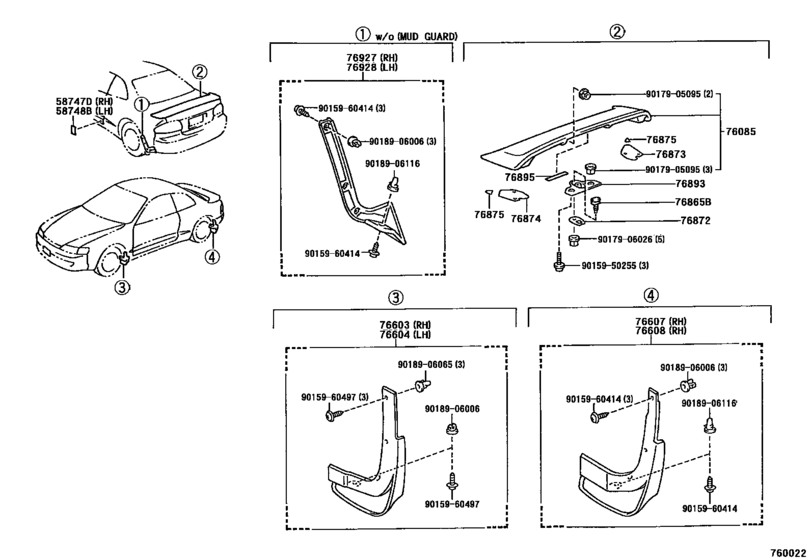

Mudguard & Spoiler ([09.1995 - ] (9509- )) Diagram Toyota CURREN
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- ST208
- grade
- TS
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 09.1995
- To
- 07.1998
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58747D
|
58747D
58747-20020 Protector, Quarter Panel, Rear Rh[02.1994 -] ST20# |
58747-20020 |
US $11.07 |
||
|
58748B
|
58748B
58748-20020 Protector, Quarter Panel, Rear Lh[02.1994 -] ST20# |
58748-20020 |
US $11.07 |
||
|
76085
|
76085
76871-20912 Spoiler Sub-Assy, Rear[09.1995 -] ST20# |
76871-20912 |
US $674.13 |
||
|
76603
|
76603
76621-29165
Mudguard Sub-Assy, Front Fender, Rh
[02.1994 -] ST20# |
76621-29165 |
— | ||
|
76604
|
76604
76622-29165
Mudguard Sub-Assy, Front Fender, Lh
[02.1994 -] ST20# |
76622-29165 |
— | ||
|
76607
|
76607
76625-29195
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[02.1994 -] ST20# |
76625-29195 |
— | ||
|
76608
|
76608
76626-29195
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[02.1994 -] ST20# |
76626-29195 |
— | ||
|
76865B
|
76865B
53858-60020
Bolt, Wheel Opening
[09.1995 -] ST20# |
53858-60020 |
— | ||
| replacement | |||||
|
76865B
|
76865B
53858-60050 Bolt, Wheel Opening[09.1995 -] ST20# |
53858-60050 |
from US $2.32 |
||
|
76872
|
76872
76872-20210 Protector, Rear Spoiler, No.1[09.1995 -] ST20# |
76872-20210 |
US $5.24 |
||
|
76873
|
76873
76873-20170 Protector, Rear Spoiler, No.2[09.1995 -] ST20# |
76873-20170 |
US $7.43 |
||
|
76874
|
76874
76874-20160 Protector, Rear Spoiler, No.3[09.1995 -] ST20# |
76874-20160 |
US $7.43 |
||
|
76875
|
76875
76875-20090 Protector, Rear Spoiler, No.4[02.1994 -] ST20# |
76875-20090 |
US $6.70 |
||
|
76893
|
76893
76893-20901 Cover, Rear Spoiler, No.1[09.1995 -] ST20# |
76893-20901 |
US $29.70 |
||
|
76895
|
76895
76895-20090 Protector, Rear Spoiler, No.5[09.1995 -] ST20# |
76895-20090 |
US $4.51 |
||
|
76927
|
76927
76927-29015
Protecter, Rear Mudguard, Rh
[02.1994 -] ST20# |
76927-29015 |
— | ||
|
76928
|
76928
76928-29015
Protecter, Rear Mudguard, Lh
[02.1994 -] ST20# |
76928-29015 |
— | ||
|
9015950255
|
9015950255
90159-50255 SCREW WWASHER |
90159-50255 |
US $1.92 |
||
|
9015960414
|
9015960414
90159-60414 SCREW WWASHER |
90159-60414 |
from US $1.07 |
||
|
9015960497
|
9015960497
90159-60497 SCREW WWASHER |
90159-60497 |
from US $0.78 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.80 |
||
|
9018906116
|
9018906116
90189-06116 CLIP |
90189-06116 |
from US $1.56 |
||
