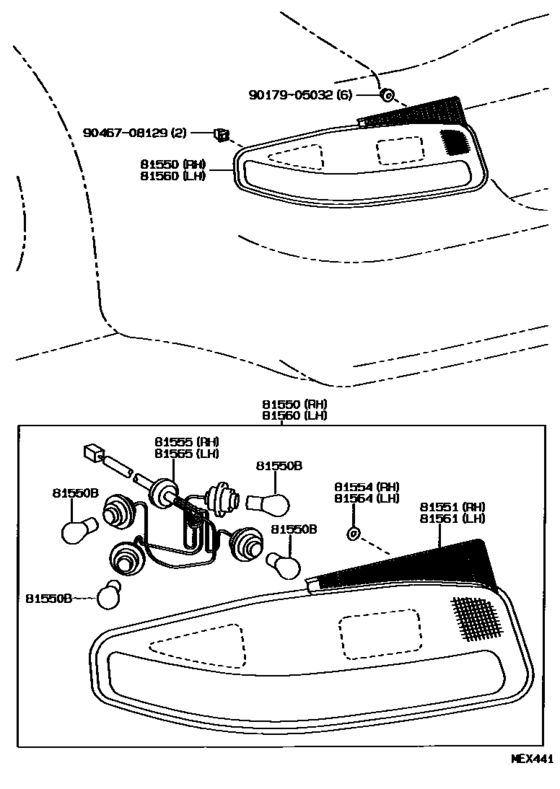

Rear Combination Lamp ([02.1994 - ] (9402- )) Diagram Toyota CURREN
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- ST208
- grade
- TS
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 09.1995
- To
- 07.1998
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-2B310 Lamp Assy, Rear Combination, Rh[09.1995 - 12.1997] ST20# |
81550-2B310 |
US $409.14 |
||
|
81550B
|
81550B
90981-13050
Bulb, Cornering Lamp
[09.1995 - 12.1997] ST20# １２Ｖ ２１Ｗ |
90981-13050 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[09.1995 - 12.1997] ST20# １２Ｖ ２１Ｗ |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13051
Bulb(For Rear Combination Lamp)
[09.1995 - 12.1997] ST20# １２Ｖ ２１／５Ｗ |
90981-13051 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[09.1995 - 12.1997] ST20# １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.65 |
||
|
81551
|
81551
81551-2B310 Lens, Rear Combination Lamp, Rh[09.1995 - 12.1997] ST20# |
81551-2B310 |
from US $144.22 |
||
|
81554
|
81554
81554-2B360 Gasket, Rear Combination Lamp Body, Rh[02.1994 - 12.1997] ST20# |
81554-2B360 |
US $4.96 |
||
|
81555
|
81555
81555-2B310 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.1995 - 12.1997] ST20# |
81555-2B310 |
US $39.17 |
||
|
81560
|
81560
81560-2B250 Lamp Assy, Rear Combination, Lh[09.1995 - 12.1997] ST20# |
81560-2B250 |
US $409.14 |
||
|
81561
|
81561
81561-2B250 Lens, Rear Combination Lamp, Lh[09.1995 - 12.1997] ST20# |
81561-2B250 |
US $347.98 |
||
|
81564
|
81564
81554-2B360 Gasket, Rear Combination Lamp Body, Rh[02.1994 - 12.1997] ST20# |
81554-2B360 |
US $4.96 |
||
|
81565
|
81565
81555-2B310 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.1995 - 12.1997] ST20# |
81555-2B310 |
US $39.17 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9046708129
|
9046708129
90467-08129 New Genuine Part |
90467-08129 |
US $2.56 |
||
