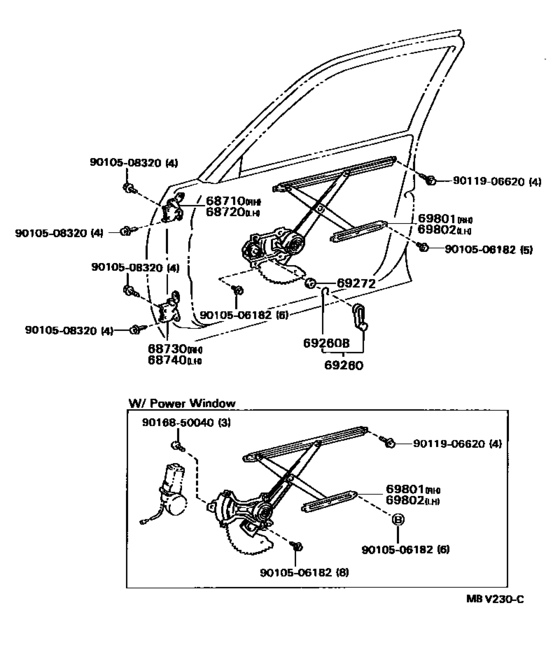

Front Door Window Regulator & Hinge ([01.1991 - ] (9101- )) Diagram Toyota CYNOS
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- EL44
- grade
- ALPHA
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 01.1991
- To
- 08.1995
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-16040 Hinge Assy, Front Door, Upper Rh[01.1991 - 08.1992] EL44 |
68710-16040 |
US $44.41 |
||
| replacement | |||||
|
68710
|
68710
68710-16050 Hinge Assy, Front Door, Upper Rh[01.1991 - 08.1992] EL44 |
68710-16050 |
US $44.41 |
||
|
68710
|
68710
68710-16041 Hinge Assy, Front Door, Upper Rh[06.1994 - 08.1995] EL44 |
68710-16041 |
US $44.41 |
||
|
68710
|
68710
68710-16050 Hinge Assy, Front Door, Upper Rh[08.1992 - 06.1994] EL44 |
68710-16050 |
US $44.41 |
||
|
68720
|
68720
68720-16040
Hinge Assy, Front Door, Upper Lh
[01.1991 - 08.1992] EL44 |
68720-16040 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-16050
Hinge Assy, Front Door, Upper Lh
[01.1991 - 08.1992] EL44 |
68720-16050 |
— | ||
|
68720
|
68720
68720-16041 Hinge Assy, Front Door, Upper Lh[06.1994 - 08.1995] EL44 |
68720-16041 |
US $44.41 |
||
|
68720
|
68720
68720-16050
Hinge Assy, Front Door, Upper Lh
[08.1992 - 06.1994] EL44 |
68720-16050 |
— | ||
|
68730
|
68730
68730-16050 Hinge Assy, Front Door, Lower Rh[01.1991 - 08.1992] EL44 |
68730-16050 |
US $44.41 |
||
| replacement | |||||
|
68730
|
68730
68730-16051 Hinge Assy, Front Door, Lower Rh[01.1991 - 08.1992] EL44 |
68730-16051 |
US $44.41 |
||
|
68730
|
68730
68730-16051 Hinge Assy, Front Door, Lower Rh[03.1994 - 08.1995] EL44 |
68730-16051 |
US $44.41 |
||
|
68730
|
68730
68730-16070 Hinge Assy, Front Door, Lower Rh[08.1992 - 10.1992] EL44 |
68730-16070 |
US $44.41 |
||
| replacement | |||||
|
68730
|
68730
68730-16051 Hinge Assy, Front Door, Lower Rh[08.1992 - 10.1992] EL44 |
68730-16051 |
US $44.41 |
||
|
68740
|
68740
68740-16050 Hinge Assy, Front Door, Lower Lh[01.1991 - 08.1992] EL44 |
68740-16050 |
US $44.41 |
||
| replacement | |||||
|
68740
|
68740
68740-16051 Hinge Assy, Front Door, Lower Lh[01.1991 - 08.1992] EL44 |
68740-16051 |
US $44.41 |
||
|
68740
|
68740
68740-16051 Hinge Assy, Front Door, Lower Lh[03.1994 - 08.1995] EL44 |
68740-16051 |
US $44.41 |
||
|
68740
|
68740
68740-16070 Hinge Assy, Front Door, Lower Lh[08.1992 - 10.1992] EL44 |
68740-16070 |
US $44.41 |
||
| replacement | |||||
|
68740
|
68740
68740-16051 Hinge Assy, Front Door, Lower Lh[08.1992 - 10.1992] EL44 |
68740-16051 |
US $44.41 |
||
|
69260
|
69260
69260-16010-01
Handle Assy, Front Door Window Regulator
[01.1991 - 12.1992] EL44..ALPHA BLACK,TRIM2# |
69260-16010-01 |
— | ||
| replacement | |||||
|
69260
|
69260
69260-16010-22 Handle Assy, Door Window Regulator (Black)[01.1991 - 12.1992] EL44..ALPHA BLACK,TRIM2# |
69260-16010-22 |
from US $13.75 |
||
|
69260
|
69260
69260-16010-22 Handle Assy, Door Window Regulator (Black)[12.1992 - 08.1995] EL44..ALPHA BLACK,TRIM2# |
69260-16010-22 |
from US $13.75 |
||
|
69260B
|
69260B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[01.1991 - 08.1995] EL44..ALPHA |
90520-01002 |
— | ||
| replacement | |||||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[01.1991 - 08.1995] EL44..ALPHA |
90520-01274 |
from US $1.01 |
||
|
69272
|
69272
69268-20020
Plate, Window Regulator Handle
[01.1991 - 08.1995] EL44..ALPHA |
69268-20020 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[01.1991 - 08.1995] EL44..ALPHA |
69285-22010-08 |
from US $1.85 |
||
|
69801
|
69801
69801-16040 Regulator Sub-Assy, Front Door Window, Rh[01.1991 - 08.1992] EL44..BETA; EL44..ALPHA ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
69801-16040 |
US $84.45 |
||
|
69801
|
69801
69801-16041 Regulator Sub-Assy, Front Door Window, Rh[08.1992 - 12.1992] EL44..ALPHA ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
69801-16041 |
US $84.45 |
||
|
69801
|
69801
69810-16100 Regulator Sub-Assy, Front Door Window, Rh[01.1991 - 08.1992] EL44..ALPHA |
69810-16100 |
US $84.45 |
||
|
69801
|
69801
69810-16101 Regulator Sub-Assy, Front Door Window, Rh[08.1992 - 08.1995] EL44..ALPHA |
69810-16101 |
US $84.45 |
||
|
69802
|
69802
69802-16040 Regulator Sub-Assy, Front Door Window, Lh[01.1991 - 08.1992] EL44..BETA; EL44..ALPHA ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
69802-16040 |
US $84.45 |
||
|
69802
|
69802
69802-16041 Regulator Sub-Assy, Front Door Window, Lh[08.1992 - 12.1992] EL44..ALPHA ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
69802-16041 |
US $84.45 |
||
|
69802
|
69802
69820-16100
Regulator Sub-Assy, Front Door Window, Lh
[01.1991 - 08.1992] EL44..ALPHA |
69820-16100 |
— | ||
|
69802
|
69802
69820-16101 Regulator Sub-Assy, Front Door Window, Lh[08.1992 - 08.1995] EL44..ALPHA |
69820-16101 |
US $84.45 |
||
|
9010506182
|
9010506182
90105-06182 New Genuine Part |
90105-06182 |
US $1.60 |
||
| replacement | |||||
|
9010506182
|
9010506182
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.44 |
||
|
9011906620
|
9011906620
90119-06620 BOLT WWASHER |
90119-06620 |
US $1.92 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.84 |
||
