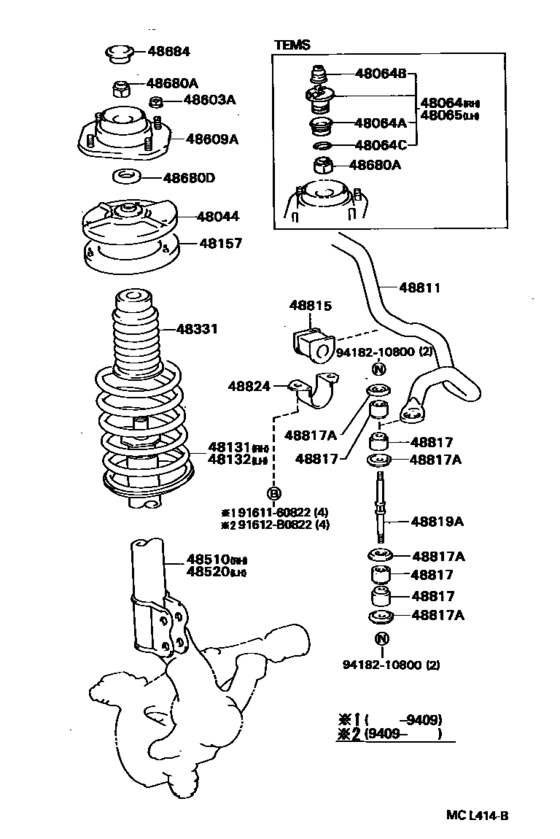

Front Spring & Shock Absorber ([01.1991 - ] (9101- )) Diagram Toyota CYNOS
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- EL44
- grade
- ALPHA
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 01.1991
- To
- 08.1995
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48044
|
48044
48044-10030 Seat Sub- Assy, Front Spring, No.1[01.1991 - 09.1994] EL44 |
48044-10030 |
US $15.90 |
||
|
48044
|
48044
48044-16030 Seat Sub- Assy, Front Spring, No.1[09.1994 - 08.1995] EL44 |
48044-16030 |
from US $16.50 |
||
|
48131
|
48131
48131-1G370 Spring, Front Coil, Rh[01.1991 - 12.1992] EL44..MTM..ALPHA |
48131-1G370 |
US $97.55 |
||
|
48131
|
48131
48131-1G400 Spring, Front Coil, Rh[12.1992 - 08.1995] EL44..MTM..ALPHA |
48131-1G400 |
US $63.63 |
||
|
48132
|
48132
48131-1G370 Spring, Front Coil, Rh[01.1991 - 12.1992] EL44..MTM..ALPHA |
48131-1G370 |
US $97.55 |
||
|
48132
|
48132
48131-1G400 Spring, Front Coil, Rh[12.1992 - 08.1995] EL44..MTM..ALPHA |
48131-1G400 |
US $63.63 |
||
|
48157
|
48157
48157-16040 Insulator, Front Coil Spring, Upper[01.1991 - 08.1995] EL44 |
48157-16040 |
from US $13.28 |
||
|
48331
|
48331
48331-16060
Bumper, Front Spring, No.1
[01.1991 - 08.1995] EL44 |
48331-16060 |
— | ||
|
48510
|
48510
48510-16360 Absorber Assy, Shock, Front Rh[01.1991 - 09.1994] EL44 |
48510-16360 |
US $270.82 |
||
| replacements | |||||
|
48510
|
48510
48510-19656
Absorber Assy, Shock, Front Rh
[01.1991 - 09.1994] EL44 |
48510-19656 |
— | ||
|
48510
|
48510
90105-15012 Bolt (For Steering Knuckle Rh)[01.1991 - 09.1994] EL44 |
90105-15012 |
from US $6.40 |
||
|
48510
|
48510
48510-19405 Absorber Assy, Shock, Front Rh[09.1994 - 08.1995] EL44 |
48510-19405 |
US $285.38 |
||
| replacement | |||||
|
48510
|
48510
48510-19835 Absorber Assy, Shock, Front Rh[09.1994 - 08.1995] EL44 |
48510-19835 |
US $289.74 |
||
|
48520
|
48520
48520-16140 Absorber Assy, Shock, Front Lh[01.1991 - 09.1994] EL44 |
48520-16140 |
US $270.82 |
||
| replacements | |||||
|
48520
|
48520
48520-19346
Absorber Assy, Shock, Front Lh
[01.1991 - 09.1994] EL44 |
48520-19346 |
— | ||
|
48520
|
48520
90105-15012 Bolt (For Steering Knuckle Rh)[01.1991 - 09.1994] EL44 |
90105-15012 |
from US $6.40 |
||
|
48520
|
48520
48520-19125 Absorber Assy, Shock, Front Lh[09.1994 - 08.1995] EL44 |
48520-19125 |
US $285.38 |
||
| replacement | |||||
|
48520
|
48520
48520-19515 Absorber Assy, Shock, Front Lh[09.1994 - 08.1995] EL44 |
48520-19515 |
US $289.74 |
||
|
48603A
|
48603A
90179-08206 Nut(For Front Suspension Support)[01.1991 - 08.1995] EL44 |
90179-08206 |
from US $0.86 |
||
|
48609A
|
48609A
48609-16160 Support Sub-Assy, Front Suspension[01.1991 - 09.1994] EL44 |
48609-16160 |
US $68.87 |
||
|
48609A
|
48609A
48609-16260 Support Sub-Assy, Front Suspension, Rh[09.1994 - 08.1995] EL44 |
48609-16260 |
US $74.26 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[01.1991 - 08.1995] EL44 |
94182-11400 |
US $4.96 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[01.1991 - 08.1995] EL44 |
90303-22049 |
from US $3.88 |
||
|
48684
|
48684
48684-10010 Cover, Bearing Dust[01.1991 - 08.1995] EL44 |
48684-10010 |
from US $1.21 |
||
|
48811
|
48811
48811-16220
Bar, Stabilizer, Front
[01.1991 - 08.1995] EL44 |
48811-16220 |
— | ||
| replacement | |||||
|
48811
|
48811
48811-16221
Bar, Stabilizer, Front
[01.1991 - 08.1995] EL44 |
48811-16221 |
— | ||
|
48815
|
48815
48815-14130 Bush, Front Stabilizer Bar, No.1[01.1991 - 08.1995] EL44 |
48815-14130 |
from US $9.44 |
||
|
48817
|
48817
48817-10020 Cushion, Front Stabilizer[01.1991 - 08.1995] EL44 |
48817-10020 |
US $9.12 |
||
|
48817A
|
48817A
90948-02032 Retainer, Cushion, No.1(For Front Stabilizer Bar)[01.1991 - 08.1995] EL44 |
90948-02032 |
from US $2.28 |
||
|
48819A
|
48819A
48819-10010 Bolt, Front Stabilizer[01.1991 - 08.1995] EL44 |
48819-10010 |
US $6.24 |
||
|
48824
|
48824
48824-20040
Bracket, Stabilizer, Front
[01.1991 - 08.1995] EL44 |
48824-20040 |
— | ||
|
91612B0822
|
91612B0822
91612-B0822
New Genuine Part
|
91612-B0822 |
— | ||
| replacement | |||||
|
91612B0822
|
91612B0822
91611-B0822 New Genuine Part |
91611-B0822 |
US $2.04 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.40 |
||
