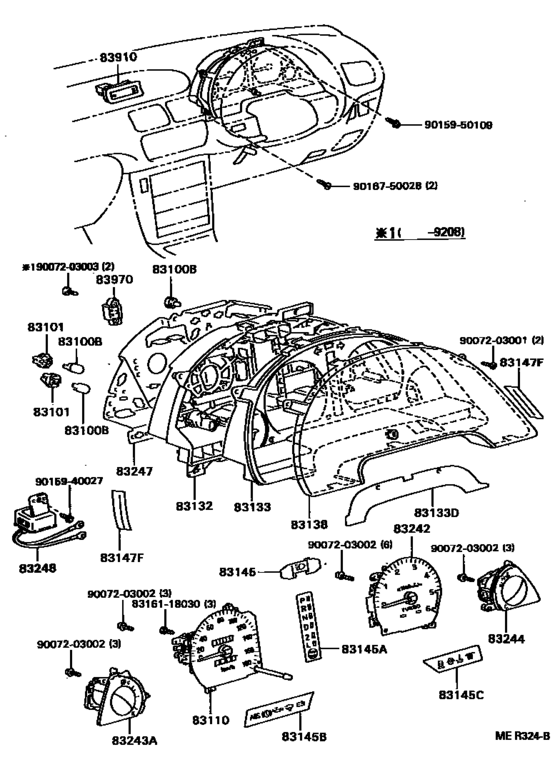

Meter ([01.1991 - ] (9101- )) Diagram Toyota CYNOS
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- EL44
- grade
- ALPHA
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 01.1991
- To
- 08.1995
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
84999-50010 Bulb, Indicator Lamp[01.1991 - 08.1995] EL44 １２Ｖ ３．４Ｗ |
84999-50010 |
US $3.14 |
||
|
83100B
|
83100B
84999-50020
Bulb, Combination Meter, No.1
[01.1991 - 12.1992] EL44 １２Ｖ ２．７Ｗ |
84999-50020 |
— | ||
|
83100B
|
83100B
84999-50040 Bulb, Combination Meter, No.1[01.1991 - 12.1992] EL44 １２Ｖ ５．０Ｗ |
84999-50040 |
US $5.39 |
||
|
83100B
|
83100B
84999-50180 Bulb, Indicator Lamp[01.1991 - 08.1995] EL44..MTM..ALPHA １２Ｖ １．２Ｗ |
84999-50180 |
US $6.24 |
||
|
83100B
|
83100B
90072-02001 Bulb, Combination Meter, No.1[01.1991 - 12.1992] EL44 １２Ｖ ３．４Ｗ，グリーン キャップ付き |
90072-02001 |
US $3.84 |
||
|
83100B
|
83100B
90072-02002 Bulb, Combination Meter, No.1[01.1991 - 08.1995] EL44 １４Ｖ １．４Ｗ，ソケット付き |
90072-02002 |
US $6.12 |
||
|
83101
|
83101
84999-50110 Socket, Indicator Lamp[01.1991 - 12.1992] EL44 １２Ｖ ３．４Ｗ |
84999-50110 |
US $7.57 |
||
|
83101
|
83101
90072-01001 Socket Sub-Assy, Combination Meter Bulb[01.1991 - 08.1995] EL44 12V 3.4W,GREEN CAP |
90072-01001 |
US $3.79 |
||
|
83110
|
83110
83110-1G230 Speedometer Assy[01.1991 - 08.1992] EL44 |
83110-1G230 |
US $416.42 |
||
| replacement | |||||
|
83110
|
83110
83110-1G231 Speedometer Assy[01.1991 - 08.1992] EL44 |
83110-1G231 |
US $301.39 |
||
|
83110
|
83110
83110-1G231 Speedometer Assy[08.1992 - 08.1993] EL44 |
83110-1G231 |
US $301.39 |
||
|
83110
|
83110
83110-1G232 Speedometer Assy[08.1993 - 08.1995] EL44 |
83110-1G232 |
US $299.94 |
||
|
83132
|
83132
83132-16300 Case, Combination Meter[01.1991 - 08.1992] EL44 |
83132-16300 |
US $46.74 |
||
|
83132
|
83132
83132-1S010 Case, Combination Meter[08.1992 - 08.1995] EL44 |
83132-1S010 |
US $59.55 |
||
|
83133
|
83133
83133-16200 Plate, Combination Meter, No.1[01.1991 - 08.1995] EL44..MTM |
83133-16200 |
US $55.18 |
||
|
83133D
|
83133D
83133-16180 Plate, Decoration[01.1991 - 08.1995] EL44 |
83133-16180 |
US $55.18 |
||
|
83138
|
83138
83138-16240 Glass, Speedometer[01.1991 - 08.1995] EL44 |
83138-16240 |
US $27.96 |
||
|
83145
|
83145
83145-16340 Lens, Meter, No.1[01.1991 - 08.1995] EL44 |
83145-16340 |
US $7.72 |
||
|
83145B
|
83145B
83145-16360 Lens, Meter, No.3[01.1991 - 08.1995] EL44 |
83145-16360 |
US $7.72 |
||
|
83145C
|
83145C
83145-16620 Lens, Meter, No.4[01.1991 - 08.1995] EL44..ALPHA |
83145-16620 |
US $7.72 |
||
|
83147F
|
83147F
83147-16150 Packing, Meter[01.1991 - 08.1995] EL44 |
83147-16150 |
US $4.08 |
||
|
83242
|
83242
83242-16120 Tachometer Assy, Engine[01.1991 - 08.1992] EL44..ALPHA |
83242-16120 |
US $483.39 |
||
| replacement | |||||
|
83242
|
83242
83242-1G250 Tachometer Assy, Engine[01.1991 - 08.1992] EL44..ALPHA |
83242-1G250 |
US $483.39 |
||
|
83242
|
83242
83242-1G250 Tachometer Assy, Engine[08.1992 - 08.1995] EL44..ALPHA |
83242-1G250 |
US $483.39 |
||
|
83243A
|
83243A
83243-16220 Gauge Sub-Assy, Fuel Receiver[01.1991 - 08.1995] EL44 |
83243-16220 |
US $70.47 |
||
|
83244
|
83244
83244-16100 Gauge Sub-Assy, Water Temperature Receiver[01.1991 - 08.1995] EL44 |
83244-16100 |
US $70.47 |
||
|
83247
|
83247
83149-16240 Plate, Meter Circuit[01.1991 - 08.1992] EL44..MTM..ALPHA |
83149-16240 |
US $57.95 |
||
|
83247
|
83247
83149-1G110 Plate, Meter Circuit[08.1992 - 08.1995] EL44..MTM..ALPHA |
83149-1G110 |
US $57.95 |
||
|
83248
|
83248
86640-16070 Chime, Speed Warning[01.1991 - 08.1993] EL44 |
86640-16070 |
US $34.36 |
||
| replacement | |||||
|
83248
|
83248
86640-87006 Chime, Speed Warning[01.1991 - 08.1993] EL44 |
86640-87006 |
US $36.11 |
||
|
83248
|
83248
86650-16020 Chime, Speed Warning[08.1993 - 08.1995] EL44 |
86650-16020 |
US $43.10 |
||
| replacement | |||||
|
83248
|
83248
86650-16030 Chime, Speed Warning[08.1993 - 08.1995] EL44 |
86650-16030 |
US $43.24 |
||
|
83910
|
83910
83910-16180-01 Clock Assy[01.1991 - 12.1992] EL44 BLACK,TRIM2# |
83910-16180-01 |
US $423.70 |
||
| replacement | |||||
|
83910
|
83910
83910-16180-22 Clock Assy[01.1991 - 12.1992] EL44 BLACK,TRIM2# |
83910-16180-22 |
US $423.70 |
||
|
83910
|
83910
83910-16180-22 Clock Assy[12.1992 - 08.1995] EL44 BLACK,TRIM2# |
83910-16180-22 |
US $423.70 |
||
|
8316118030
|
8316118030
83161-18030 Case, Combination Meter Mirror, No.1 |
83161-18030 |
US $1.75 |
||
|
9007203001
|
9007203001
90072-03001 New Genuine Part |
90072-03001 |
US $0.87 |
||
|
9007203002
|
9007203002
90072-03002 New Genuine Part |
90072-03002 |
US $0.87 |
||
|
9007203003
|
9007203003
90072-03003 New Genuine Part |
90072-03003 |
US $1.60 |
||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
