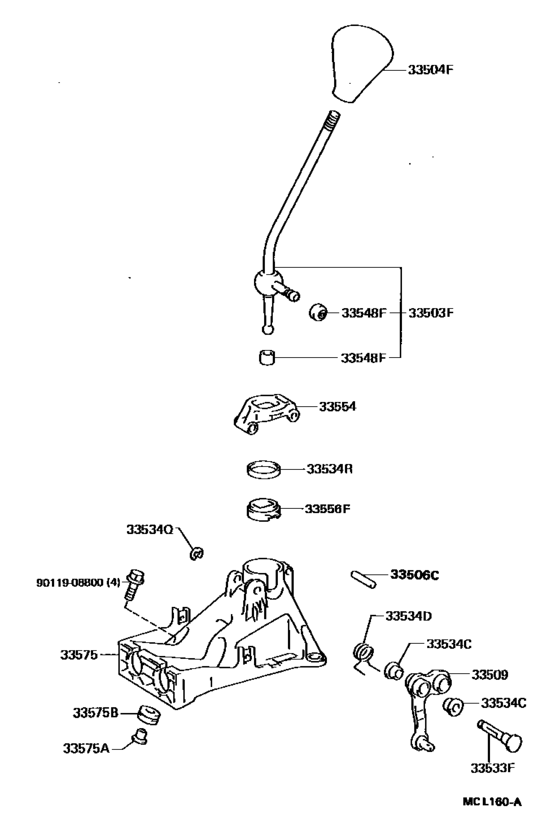

Shift Lever & Retainer ([01.1991 - 11.1991] TSUDA (9101-9111)MTM) Diagram Toyota CYNOS
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- EL44
- grade
- ALPHA
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 01.1991
- To
- 08.1995
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33503F
|
33503F
33503-10140 Lever Sub-Assy, Shift(For Floor Shift)[01.1991 - 11.1991] EL44..MTM TSUDA |
33503-10140 |
US $57.66 |
||
|
33503F
|
33503F
33503-10150 Lever Sub-Assy, Shift(For Floor Shift)[01.1991 - 11.1991] EL44..MTM MANNO |
33503-10150 |
US $57.80 |
||
|
33504F
|
33504F
33504-10050-11
Knob Sub-Assy, Shift Lever
[01.1991 - 08.1992] EL44..MTM NEW BLACK,TRIM2# |
33504-10050-11 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[01.1991 - 08.1992] EL44..MTM NEW BLACK,TRIM2# |
33504-24010-C1 |
from US $28.42 |
||
|
33504F
|
33504F
33504-10050-22
Knob Sub-Assy, Shift Lever
[08.1992 - 08.1995] EL44..MTM BLACK,TRIM2# |
33504-10050-22 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[08.1992 - 08.1995] EL44..MTM BLACK,TRIM2# |
33504-24010-C1 |
from US $28.42 |
||
|
33506C
|
33506C
90253-06001 Pin, Shift Lever Retainer Ring[01.1991 - 11.1991] EL44..MTM 長さ＝６２．５ |
90253-06001 |
US $4.66 |
||
|
33506C
|
33506C
90254-06004 Pin, Shift Lever Retainer Ring[01.1991 - 11.1991] EL44..MTM 長さ＝４０ |
90254-06004 |
US $2.77 |
||
|
33509
|
33509
33509-10030 Crank Sub-Assy, Selecting Bell, No.1[01.1991 - 11.1991] EL44..MTM TSUDA |
33509-10030 |
US $29.27 |
||
| replacement | |||||
|
33509
|
33509
33509-10031 Crank Sub-Assy, Selecting Bell, No.1[01.1991 - 11.1991] EL44..MTM TSUDA |
33509-10031 |
US $29.27 |
||
|
33509
|
33509
33509-10040 Crank Sub-Assy, Selecting Bell, No.1[01.1991 - 11.1991] EL44..MTM MANNO |
33509-10040 |
US $29.70 |
||
|
33533F
|
33533F
33533-10010 Shaft, Bellcrank (For Floor Shift)[01.1991 - 11.1991] EL44..MTM L=70.5 |
33533-10010 |
US $10.48 |
||
|
33533F
|
33533F
33533-10020 Shaft, Bellcrank (For Floor Shift)[01.1991 - 11.1991] EL44..MTM L=78.5 |
33533-10020 |
US $11.79 |
||
|
33534C
|
33534C
90386-12034 Bush (For Shift Lever Retainer)[01.1991 - 11.1991] EL44..MTM H=10 |
90386-12034 |
US $1.76 |
||
|
33534C
|
33534C
90386-12038 Bush (For Selecting Bellcrank No.1)[01.1991 - 11.1991] EL44..MTM H=7 |
90386-12038 |
US $1.89 |
||
|
33534D
|
33534D
90508-20102
Spring, Torsion (For Selecting Bellcrank No.1)
[01.1991 - 11.1991] EL44..MTM MANNO |
90508-20102 |
— | ||
|
33534D
|
33534D
90508-23112 Spring, Torsion (For Selecting Bellcrank No.1)[01.1991 - 11.1991] EL44..MTM TSUDA |
90508-23112 |
US $2.48 |
||
|
33534Q
|
33534Q
96160-00700 Ring, E(For Chain Tensioner Slipper)[01.1991 - 11.1991] EL44..MTM OD=14 |
96160-00700 |
US $3.20 |
||
|
33534Q
|
33534Q
96160-00900 Ring, E(For Injection Pump Lever)[01.1991 - 11.1991] EL44..MTM 外径＝１６ |
96160-00900 |
from US $1.44 |
||
|
33534R
|
33534R
90540-06029 Cushion (For Selecting Bellcrank No.1)[01.1991 - 11.1991] EL44..MTM OD=8.0 |
90540-06029 |
US $2.80 |
||
|
33534R
|
33534R
90540-35001
Cushion (For Selecting Bellcrank No.1)
[01.1991 - 11.1991] EL44..MTM OD=40.0 |
90540-35001 |
— | ||
|
33548F
|
33548F
33548-10030
Bush, No.1, Shift Lever (For Floor Shift)
[01.1991 - 11.1991] EL44..MTM TSUDA |
33548-10030 |
— | ||
|
33548F
|
33548F
33548-10040
Bush, No.1, Shift Lever (For Floor Shift)
[01.1991 - 08.1995] EL44..MTM MANNO,NO.2 |
33548-10040 |
— | ||
|
33548F
|
33548F
33548-12021 Bush, Shift Lever (For Column Shift)[01.1991 - 08.1995] EL44..MTM MANNO,NO.1 |
33548-12021 |
US $4.96 |
||
|
33554
|
33554
33554-10040
Cap, Shift Lever
[01.1991 - 11.1991] EL44..MTM |
33554-10040 |
— | ||
| replacement | |||||
|
33554
|
33554
33554-10041
Cap, Shift Lever
[01.1991 - 11.1991] EL44..MTM |
33554-10041 |
— | ||
|
33556F
|
33556F
33556-10010 Seat, Transmission Shift Lever Ball[01.1991 - 11.1991] EL44..MTM TSUDA |
33556-10010 |
US $10.63 |
||
|
33556F
|
33556F
33556-10020
Seat, Transmission Shift Lever Ball
[01.1991 - 11.1991] EL44..MTM MANNO |
33556-10020 |
— | ||
|
33575
|
33575
33575-10080 Retainer, Control Shift Lever (For Floor Shift)[01.1991 - 11.1991] EL44..MTM |
33575-10080 |
US $72.22 |
||
|
33575A
|
33575A
90389-08059
Bush, No.1 (For Control Shift Lever Retainer)
[01.1991 - 11.1991] EL44..MTM OD=26 |
90389-08059 |
— | ||
|
33575A
|
33575A
90389-08085 Bush, No.1 (For Control Shift Lever Retainer)[01.1991 - 11.1991] EL44..MTM 外径＝２２ |
90389-08085 |
US $3.49 |
||
|
33575B
|
33575B
90389-09022
Bush, No.2 (For Control Shift Lever Retainer)
[01.1991 - 11.1991] EL44..MTM MANNO |
90389-09022 |
— | ||
|
33575B
|
33575B
90389-10029 Bush, No.2 (For Control Shift Lever Retainer)[01.1991 - 11.1991] EL44..MTM TSUDA |
90389-10029 |
US $8.59 |
||
|
9011908800
|
9011908800
90119-08800
New Genuine Part
|
90119-08800 |
— | ||
