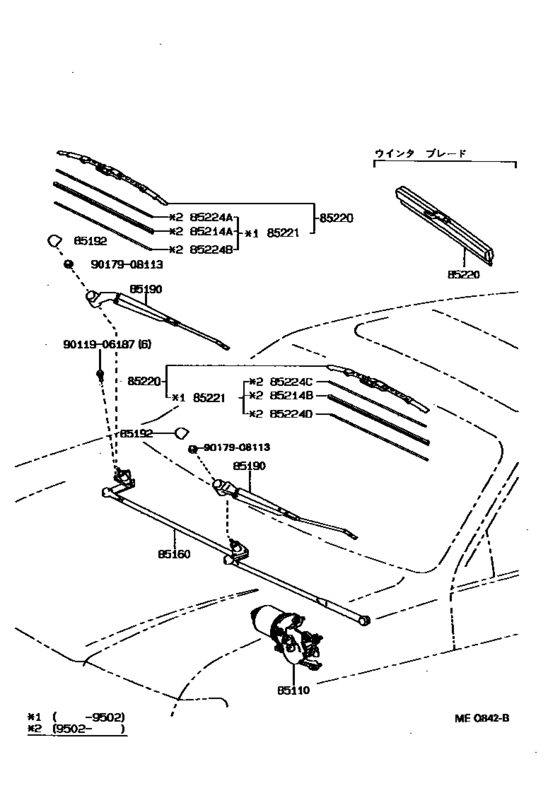

Windshield Wiper ([01.1991 - ] (9101- )) Diagram Toyota CYNOS
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- EL44
- grade
- ALPHA
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 01.1991
- To
- 08.1995
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-16400 Motor Assy, Windshield Wiper[01.1991 - 08.1992] EL44 |
85110-16400 |
US $356.72 |
||
| replacement | |||||
|
85110
|
85110
85110-16410 Motor Assy, Windshield Wiper[01.1991 - 08.1992] EL44 |
85110-16410 |
US $365.46 |
||
|
85110
|
85110
85110-16410 Motor Assy, Windshield Wiper[01.1991 - 08.1992] EL44 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
85110-16410 |
US $365.46 |
||
|
85110
|
85110
85110-16491 Motor Assy, Windshield Wiper[08.1992 - 08.1995] EL44 |
85110-16491 |
US $356.72 |
||
| replacement | |||||
|
85110
|
85110
85110-16590 Motor Assy, Windshield Wiper[08.1992 - 08.1995] EL44 |
85110-16590 |
US $391.66 |
||
|
85110
|
85110
85110-16501 Motor Assy, Windshield Wiper[08.1992 - 12.1992] EL44 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
85110-16501 |
US $362.54 |
||
| replacement | |||||
|
85110
|
85110
85110-16630 Motor Assy, Windshield WiperWINDSHIELD WIPER [08.1992 - 12.1992] EL44 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
85110-16630 |
US $407.68 |
||
|
85110
|
85110
85110-16502 Motor Assy, Windshield Wiper[12.1992 - 08.1995] EL44 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
85110-16502 |
US $398.94 |
||
| replacement | |||||
|
85110
|
85110
85110-16630 Motor Assy, Windshield WiperWINDSHIELD WIPER [12.1992 - 08.1995] EL44 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
85110-16630 |
US $407.68 |
||
|
85110
|
85110
85110-16570 Motor Assy, Windshield Wiper[10.1992 - 12.1992] EL44 ｱﾘ(ﾗｼﾞｵ) |
85110-16570 |
US $390.21 |
||
| replacement | |||||
|
85110
|
85110
85110-16590 Motor Assy, Windshield Wiper[10.1992 - 12.1992] EL44 ｱﾘ(ﾗｼﾞｵ) |
85110-16590 |
US $391.66 |
||
|
85160
|
85160
85150-16430 Link Assy, Windshield Wiper[01.1991 - 08.1992] EL44 |
85150-16430 |
US $133.95 |
||
| replacement | |||||
|
85160
|
85160
85150-16431 Link Assy, Windshield Wiper[01.1991 - 08.1992] EL44 |
85150-16431 |
US $138.32 |
||
|
85160
|
85160
85150-16431 Link Assy, Windshield Wiper[08.1992 - 08.1995] EL44 |
85150-16431 |
US $138.32 |
||
|
85190
|
85190
85211-16090 Arm Assy, Windshield Wiper[01.1991 - 11.1991] EL44 右側 |
85211-16090 |
US $59.55 |
||
| replacement | |||||
|
85190
|
85190
85211-16091 Arm Assy, Windshield Wiper[01.1991 - 11.1991] EL44 右側 |
85211-16091 |
US $59.55 |
||
|
85190
|
85190
85211-16091 Arm Assy, Windshield Wiper[11.1991 - 08.1995] EL44 右側 |
85211-16091 |
US $59.55 |
||
|
85190
|
85190
85221-16150 Arm Assy, Windshield Wiper[01.1991 - 11.1991] EL44 左側 |
85221-16150 |
US $56.64 |
||
| replacement | |||||
|
85190
|
85190
85221-16151 Arm Assy, Windshield Wiper[01.1991 - 11.1991] EL44 左側 |
85221-16151 |
US $56.64 |
||
|
85190
|
85190
85221-16151 Arm Assy, Windshield Wiper[11.1991 - 08.1995] EL44 左側 |
85221-16151 |
US $56.64 |
||
|
85192
|
85192
85192-12800 Cover, Windshield Wiper Arm[01.1991 - 11.1991] EL44 |
85192-12800 |
from US $2.15 |
||
| replacement | |||||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[01.1991 - 11.1991] EL44 |
85292-12020 |
from US $1.52 |
||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[11.1991 - 08.1995] EL44 |
85292-12020 |
from US $1.52 |
||
|
85214A
|
85214A
85214-33060
Rubber, Wiper, Rh
[02.1995 - 08.1995] EL44 |
85214-33060 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-40080 Rubber, Wiper, Lh[02.1995 - 08.1995] EL44 |
85214-40080 |
from US $13.60 |
||
|
85214B
|
85214B
85214-20320 Rubber, Wiper, Rh[02.1995 - 08.1995] EL44 |
85214-20320 |
US $8.91 |
||
| replacement | |||||
|
85214B
|
85214B
85214-20330 Rubber, Wiper, RhWIPER, RH [02.1995 - 08.1995] EL44 |
85214-20330 |
from US $14.24 |
||
|
85220
|
85220
85212-16080 Blade Assy, Windshield Wiper[01.1991 - 11.1991] EL44 右側 |
85212-16080 |
US $58.53 |
||
| replacement | |||||
|
85220
|
85220
85212-33080 Blade Assy, Windshield Wiper[01.1991 - 11.1991] EL44 右側 |
85212-33080 |
US $58.53 |
||
|
85220
|
85220
85212-16081 Blade Assy, Windshield Wiper[11.1991 - 12.1992] EL44 右側 |
85212-16081 |
US $58.53 |
||
| replacement | |||||
|
85220
|
85220
85212-33080 Blade Assy, Windshield Wiper[11.1991 - 12.1992] EL44 右側 |
85212-33080 |
US $58.53 |
||
|
85220
|
85220
85212-16082 Blade Assy, Windshield Wiper[12.1992 - 08.1995] EL44 右側 |
85212-16082 |
US $58.39 |
||
| replacement | |||||
|
85220
|
85220
85212-33080 Blade Assy, Windshield Wiper[12.1992 - 08.1995] EL44 右側 |
85212-33080 |
US $58.53 |
||
|
85220
|
85220
85222-12692 Blade Assy, Windshield Wiper[12.1992 - 08.1995] EL44 左側 |
85222-12692 |
US $24.98 |
||
|
85220
|
85220
85222-1G020 Blade Assy, Windshield Wiper[01.1991 - 11.1991] EL44 左側 |
85222-1G020 |
US $36.55 |
||
| replacement | |||||
|
85220
|
85220
85222-12692 Blade Assy, Windshield Wiper[01.1991 - 11.1991] EL44 左側 |
85222-12692 |
US $24.98 |
||
|
85220
|
85220
85222-1G021 Blade Assy, Windshield Wiper[11.1991 - 12.1992] EL44 左側 |
85222-1G021 |
US $36.55 |
||
| replacement | |||||
|
85220
|
85220
85222-12692 Blade Assy, Windshield Wiper[11.1991 - 12.1992] EL44 左側 |
85222-12692 |
US $24.98 |
||
|
85220
|
85220
85291-22050
Blade Assy, Windshield Wiper
[01.1991 - 08.1995] EL44 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側 |
85291-22050 |
— | ||
| replacement | |||||
|
85220
|
85220
85291-33060 Blade, Front Wiper, Winter, Rh[01.1991 - 08.1995] EL44 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側 |
85291-33060 |
US $72.96 |
||
|
85220
|
85220
85291-30030 Blade Assy, Windshield Wiper[01.1991 - 08.1995] EL44 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側 |
85291-30030 |
US $66.39 |
||
| replacement | |||||
|
85220
|
85220
85291-22080 Blade Assy, Windshield Wiper[01.1991 - 08.1995] EL44 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側 |
85291-22080 |
US $63.84 |
||
|
85221
|
85221
85213-20310
Rubber, Wiper Blade, Rh
[12.1992 - 02.1995] EL44 右側 |
85213-20310 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-40080 Rubber, Wiper, Lh[12.1992 - 02.1995] EL44 右側 |
85214-40080 |
from US $13.60 |
||
|
85221
|
85221
85213-32080 Blade, Windshield Wiper[01.1991 - 02.1992] EL44 右側 |
85213-32080 |
US $19.66 |
||
| replacement | |||||
|
85221
|
85221
85214-40080 Rubber, Wiper, Lh[01.1991 - 02.1992] EL44 右側 |
85214-40080 |
from US $13.60 |
||
|
85221
|
85221
85213-32240 Blade, Windshield Wiper[02.1992 - 12.1992] EL44 右側 |
85213-32240 |
US $19.66 |
||
| replacement | |||||
|
85221
|
85221
85214-40080 Rubber, Wiper, Lh[02.1992 - 12.1992] EL44 右側 |
85214-40080 |
from US $13.60 |
||
|
85221
|
85221
85223-1G010 Blade, Windshield Wiper[01.1991 - 09.1991] EL44 左側 |
85223-1G010 |
US $15.29 |
||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [01.1991 - 09.1991] EL44 左側 |
85214-20330 |
from US $14.24 |
||
|
85221
|
85221
85223-1G040 Blade, Windshield Wiper[09.1991 - 12.1992] EL44 左側 |
85223-1G040 |
US $15.29 |
||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [09.1991 - 12.1992] EL44 左側 |
85214-20330 |
from US $14.24 |
||
|
85221
|
85221
85223-30400 Blade, Windshield Wiper[12.1992 - 02.1995] EL44 左側 |
85223-30400 |
US $15.29 |
||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [12.1992 - 02.1995] EL44 左側 |
85214-20330 |
from US $14.24 |
||
|
85224A
|
85224A
85224-33050 Plate, Wiper Rubber Backing, No.1[02.1995 - 08.1995] EL44 |
85224-33050 |
US $5.07 |
||
|
85224B
|
85224B
85224-33050 Plate, Wiper Rubber Backing, No.1[02.1995 - 08.1995] EL44 |
85224-33050 |
US $5.07 |
||
|
85224C
|
85224C
85224-30430 Plate, Wiper Rubber Backing, No.3[02.1995 - 08.1995] EL44 |
85224-30430 |
US $4.37 |
||
|
85224D
|
85224D
85224-30420 Plate, Wiper Rubber Backing, No.4[02.1995 - 08.1995] EL44 |
85224-30420 |
US $4.37 |
||
|
9011906187
|
9011906187
90119-06187
New Genuine Part
|
90119-06187 |
— | ||
| replacement | |||||
|
9011906187
|
9011906187
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.40 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $1.92 |
||
