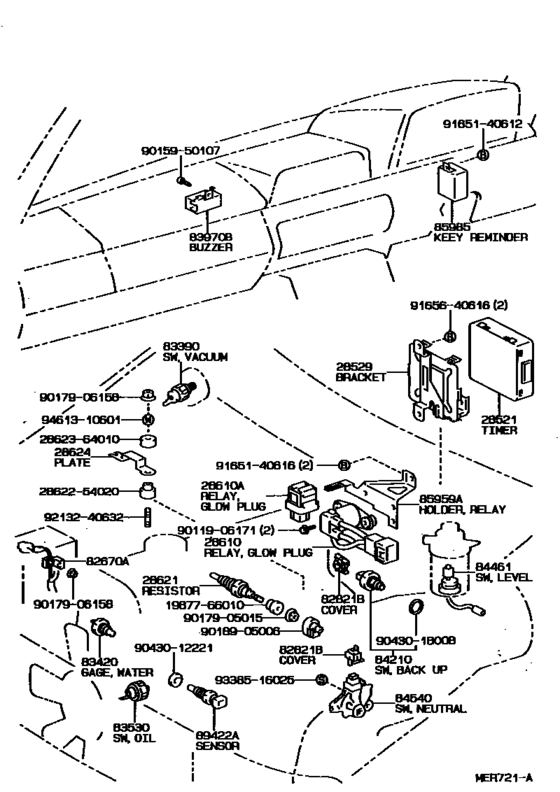

Switch & Relay & Computer ([05.1991 - 09.1994] (9105-9409)CXC10) Diagram Toyota DELIBOY
- Year
- 1991 - 1994
- Sales region
- Japan
- Frame
- CXC10
- grade
- DX
- body
- V
- ENGINE
- 2C
- TRANSMISSION
- MTM
- From
- 05.1991
- To
- 09.1994
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28521
|
28521
28521-64380 Timer, Preheating[05.1991 - 09.1994] 2C..CXC10 |
28521-64380 |
US $481.94 |
||
|
28529
|
28529
28529-64230 Bracket, Preheating Timer, No.1[05.1991 - 09.1994] 2C..CXC10 |
28529-64230 |
US $10.77 |
||
|
28610
|
28610
28610-64130 Relay Assy, Glow Plug[05.1991 - 09.1994] 2C..CXC10 |
28610-64130 |
US $88.82 |
||
|
28610A
|
28610A
28610-64110 Relay Assy, Glow Plug[05.1991 - 09.1994] 2C..CXC10 |
28610-64110 |
from US $66.03 |
||
|
28621
|
28621
28621-64011 Resistor, Glow Plug[05.1991 - 09.1994] 2C..CXC10 |
28621-64011 |
US $181.71 |
||
|
28624
|
28624
28624-64010 Plate, Current Sensor[05.1991 - 09.1994] 2C..CXC10 |
28624-64010 |
US $20.24 |
||
|
82670A
|
82670A
82670-90K00
Block Assy, Junction, No.1
[05.1991 - 01.1995] KXC10..3HC; CXC10,KXC10..4HC,5H |
82670-90K00 |
— | ||
|
82821B
|
82821B
82821-12250
Cover, Connector
[07.1989 - 03.1992] CXC10,KXC10..5H |
82821-12250 |
— | ||
|
82821B
|
82821B
82821-12251
Cover, Connector
[03.1992 - 11.1995] CXC10,KXC10..5H |
82821-12251 |
— | ||
|
83390
|
83390
83390-12340 Switch Assy, Vacuum Warning[05.1991 - 09.1994] CXC10 |
83390-12340 |
US $46.82 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[07.1989 - 11.1995] CXC10,KXC10 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[05.1991 - 09.1994] CXC10 |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[05.1991 - 09.1994] CXC10 |
83530-60030 |
from US $25.68 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[07.1989 - 11.1995] CXC10,KXC10..5H |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[07.1989 - 11.1995] CXC10,KXC10..5H |
84210-52050 |
from US $20.67 |
||
|
84461
|
84461
84461-12050
Switch, Level Warning
[05.1991 - 09.1994] CXC10 |
84461-12050 |
— | ||
|
85959A
|
85959A
85959-38010 Holder, Relay[05.1991 - 09.1994] CXC10 |
85959-38010 |
US $16.02 |
||
|
85985
|
85985
80590-38010 Relay, Key Reminder[05.1991 - 11.1995] CXC10,KXC10 |
80590-38010 |
US $109.20 |
||
|
89422A
|
89422A
89422-20010 Sensor, Water Temperature (For E.f.i.)[05.1991 - 09.1994] CXC10 |
89422-20010 |
from US $36.78 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862254020
|
2862254020
28622-54020
Insulator, Glow Plug Resistor, No.1
|
28622-54020 |
— | ||
|
2862364010
|
2862364010
28623-64010
Insulator, Glow Plug Resistor, No.2
|
28623-64010 |
— | ||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.08 |
||
|
9015950107
|
9015950107
90159-50107 New Genuine Part |
90159-50107 |
US $1.92 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9018905006
|
9018905006
90189-05006 GROMMET |
90189-05006 |
from US $4.23 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9213240632
|
9213240632
92132-40632 New Genuine Part |
92132-40632 |
US $1.60 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
