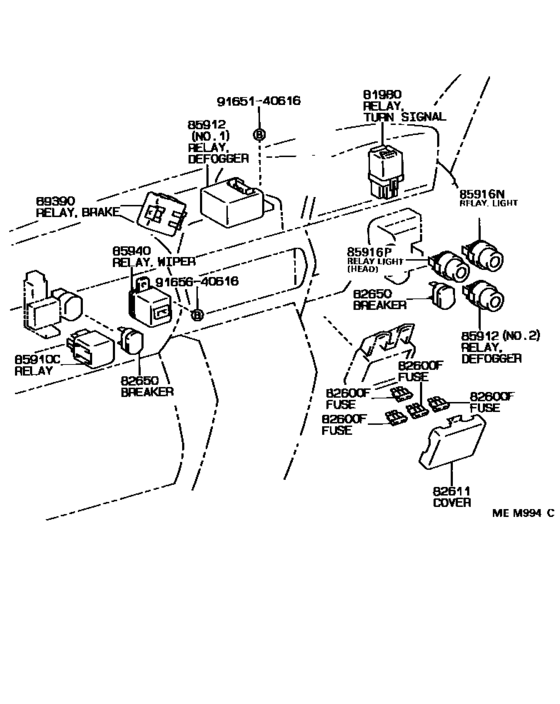

Switch & Relay & Computer ([07.1989 - ] (8907- )) Diagram Toyota DELIBOY
- Year
- 1991 - 1994
- Sales region
- Japan
- Frame
- CXC10
- grade
- DX
- body
- V
- ENGINE
- 2C
- TRANSMISSION
- MTM
- From
- 05.1991
- To
- 09.1994
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[07.1989 - 11.1995] CXC10,KXC10 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[07.1989 - 11.1995] CXC10,KXC10 |
81980-32010 |
from US $54.54 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[07.1989 - 01.1995] CXC10,KXC10..4HC,5H １０Ａ |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[07.1989 - 01.1995] CXC10,KXC10..4HC,5H １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[07.1989 - 01.1995] CXC10,KXC10..4HC,5H ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[07.1989 - 01.1995] CXC10,KXC10..4HC,5H ７．５Ａ |
90982-09005 |
from US $1.09 |
||
|
82611
|
82611
82611-38020 Cover, Fuse Block[05.1991 - 01.1995] CXC10,KXC10..4HC,5H; KXC10..3HC ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾃﾞﾌｵﾂｶﾞ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
82611-38020 |
US $14.71 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[07.1989 - 01.1995] CXC10,KXC10..4HC,5H ３０Ａ |
82650-20011 |
US $14.08 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[07.1989 - 01.1995] CXC10,KXC10..4HC,5H ２０Ａ,ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾃﾞﾌｵﾂｶﾞ) |
82650-35010 |
US $18 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[07.1989 - 11.1995] CXC10,KXC10 |
90987-04002 |
from US $25.17 |
||
|
85912
|
85912
85912-24010 Relay, Defogger[07.1989 - 11.1995] CXC10,KXC10 ＮＯ．１ |
85912-24010 |
US $199.47 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[07.1989 - 11.1995] CXC10,KXC10 ＮＯ．２ |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85912
|
85912
909870200483 [07.1989 - 11.1995] CXC10,KXC10 ＮＯ．２ |
909870200483 |
US $53.75 |
||
|
85916N
|
85916N
90987-02004 Relay Assy, Starter[07.1989 - 11.1995] CXC10,KXC10 |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85916N
|
85916N
909870200483 [07.1989 - 11.1995] CXC10,KXC10 |
909870200483 |
US $53.75 |
||
|
85916P
|
85916P
90987-02004 Relay Assy, Starter[07.1989 - 11.1995] CXC10,KXC10 |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85916P
|
85916P
909870200483 [07.1989 - 11.1995] CXC10,KXC10 |
909870200483 |
US $53.75 |
||
|
85940
|
85940
85940-89101
Relay Assy, Windshield Wiper
[07.1989 - 11.1995] CXC10,KXC10 |
85940-89101 |
— | ||
|
89390
|
89390
89390-27010 Relay, Brake Warning[05.1991 - 09.1994] CXC10 |
89390-27010 |
US $219.86 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
