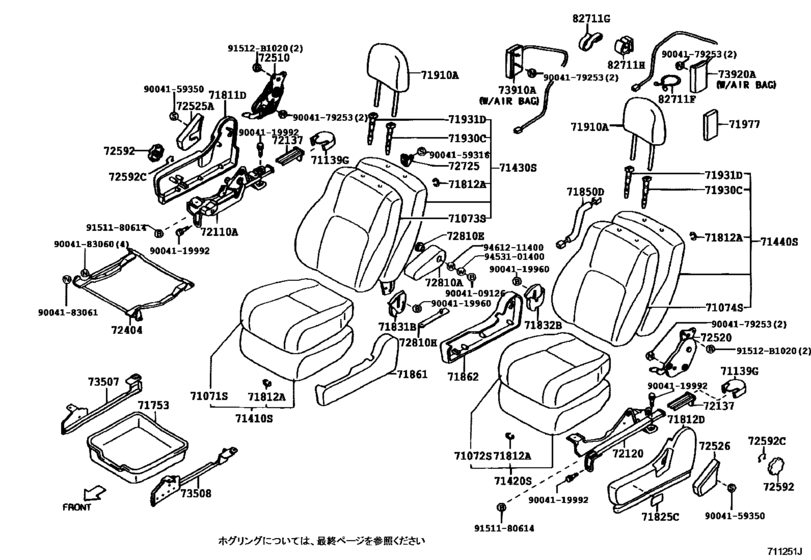

Front Seat & Seat Track ([09.1998 - 05.2000] (9809-0005)) Diagram Toyota DUET
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- M100A
- grade
- X
- ENGINE
- EJDE
- TRANSMISSION
- ATM
- From
- 09.1998
- To
- 05.2000
- Gear Shift Type
- 4AT
- Fuel Induction
- LVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71063-97203-03 Cover, Front Seat Cushion, Rh(For Separate Type)[09.1998 - 05.2000] M100,110..X DARK GRAY,TRIMS6 |
71063-97203-03 |
US $288.29 |
||
|
71071S
|
71071S
71063-97204-01 Cover, Front Seat Cushion, Rh(For Separate Type)[09.1998 - 05.2000] M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71063-97204-01 |
US $336.34 |
||
|
71072S
|
71072S
71064-97202-03 Cover, Front Seat Cushion, Lh(For Separate Type)[09.1998 - 05.2000] M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71064-97202-03 |
US $288.29 |
||
|
71072S
|
71072S
71064-97203-01 Cover, Front Seat Cushion, Lh(For Separate Type)[09.1998 - 05.2000] M100,110..X BLACK,TRIMS6 |
71064-97203-01 |
US $336.34 |
||
|
71073S
|
71073S
71061-97203-03 Cover, Front Seat Back, Rh(For Separate Type)[09.1998 - 04.1999] M100,110..4AT..X DARK GRAY,TRIMS6 |
71061-97203-03 |
US $398.94 |
||
|
71073S
|
71073S
71061-97205-03 Cover, Front Seat Back, Rh(For Separate Type)[09.1998 - 05.2000] M100,110..4AT..X ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71061-97205-03 |
US $362.54 |
||
|
71073S
|
71073S
71061-97207-01 Cover, Front Seat Back, Rh(For Separate Type)[09.1998 - 05.2000] M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71061-97207-01 |
US $426.61 |
||
|
71073S
|
71073S
71061-97237-03 Cover, Front Seat Back, Rh(For Separate Type)[04.1999 - 05.2000] M100,110..4AT..X GRAY,TRIMS6 |
71061-97237-03 |
US $362.54 |
||
|
71074S
|
71074S
71062-97202-03 Cover, Front Seat Back, Lh(For Separate Type)[09.1998 - 04.1999] M100,110..X DARK GRAY,TRIMS6 |
71062-97202-03 |
US $362.54 |
||
|
71074S
|
71074S
71062-97203-03 Cover, Front Seat Back, Lh(For Separate Type)[09.1998 - 05.2000] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
71062-97203-03 |
US $362.54 |
||
|
71074S
|
71074S
71062-97205-01 Cover, Front Seat Back, Lh(For Separate Type)[09.1998 - 05.2000] M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71062-97205-01 |
US $426.61 |
||
|
71074S
|
71074S
71062-97228-03 Cover, Front Seat Back, Lh(For Separate Type)[04.1999 - 05.2000] M100,110..X GRAY,TRIMS6 |
71062-97228-03 |
US $362.54 |
||
|
71139G
|
71139G
71139-97201 Cover, Front Seat Leg[09.1998 -] M10#,11# ﾚｶﾛｼ-ﾄ |
71139-97201 |
US $5.10 |
||
|
71410S
|
71410S
71510-97203-03 Cushion Assy, Front Seat, Rh(For Separate Type)[09.1998 - 05.2000] M100,110..X DARK GRAY,TRIMS6 |
71510-97203-03 |
US $719.26 |
||
|
71410S
|
71410S
71510-97204-01 Cushion Assy, Front Seat, Rh(For Separate Type)[09.1998 - 05.2000] M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71510-97204-01 |
US $953.68 |
||
|
71420S
|
71420S
71520-97202-03 Cushion Assy, Front Seat, Lh (For Separate Type)[09.1998 - 05.2000] M100,110..X DARK GRAY,TRIMS6 |
71520-97202-03 |
US $719.26 |
||
|
71420S
|
71420S
71520-97203-01 Cushion Assy, Front Seat, Lh (For Separate Type)[09.1998 - 05.2000] M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71520-97203-01 |
US $953.68 |
||
|
71430S
|
71430S
71430-97205-03 Back Assy, Front Seat, Rh(For Separate Type)[09.1998 - 04.1999] M100,110..4AT..X DARK GRAY,TRIMS6 |
71430-97205-03 |
US $930.38 |
||
|
71430S
|
71430S
71430-97209-01 Back Assy, Front Seat, Rh(For Separate Type)[09.1998 - 04.1999] M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71430-97209-01 |
US $1,225.95 |
||
|
71430S
|
71430S
71430-97230-03 Back Assy, Front Seat, Rh(For Separate Type)[09.1998 - 05.2000] M100,110..4AT..X ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
71430-97230-03 |
US $930.38 |
||
|
71430S
|
71430S
71430-97251-03 Back Assy, Front Seat, Rh(For Separate Type)[04.1999 - 05.2000] M100,110..4AT..X GRAY,TRIMS6 |
71430-97251-03 |
US $930.38 |
||
|
71430S
|
71430S
71430-97256-01 Back Assy, Front Seat, Rh(For Separate Type)[04.1999 - 05.2000] M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71430-97256-01 |
US $1,225.95 |
||
|
71440S
|
71440S
71540-97202-03 Back Assy, Front Seat, Lh(For Separate Type)[09.1998 - 04.1999] M100,110..X DARK GRAY,TRIMS6 |
71540-97202-03 |
US $803.71 |
||
|
71440S
|
71440S
71540-97205-01 Back Assy, Front Seat, Lh(For Separate Type)[09.1998 - 04.1999] M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71540-97205-01 |
US $1,061.42 |
||
|
71440S
|
71440S
71540-97231-03 Back Assy, Front Seat, Lh(For Separate Type)[09.1998 - 05.2000] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
71540-97231-03 |
US $803.71 |
||
|
71440S
|
71440S
71540-97248-03 Back Assy, Front Seat, Lh(For Separate Type)[04.1999 - 05.2000] M100,110..X GRAY,TRIMS6 |
71540-97248-03 |
US $803.71 |
||
|
71440S
|
71440S
71540-97252-01 Back Assy, Front Seat, Lh(For Separate Type)[04.1999 - 05.2000] M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71540-97252-01 |
US $1,061.42 |
||
|
71753
|
71753
71753-97201 Tray, Front Seat Under[09.1998 -] M10#,11#..X |
71753-97201 |
US $36.11 |
||
|
71811D
|
71811D
71811-97201-03 Shield, Front Seat Cushion, Rh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71811-97201-03 |
US $43.53 |
||
| replacement | |||||
|
71811D
|
71811D
71811-97201-01 Shield, Front Seat Cushion, Rh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71811-97201-01 |
US $55.62 |
||
|
71812A
|
71812A
71812-87201 Clip (For Front Seat Cushion Cover)[09.1998 -] M10#,11# |
71812-87201 |
US $1.76 |
||
|
71812D
|
71812D
71812-97201-03 Shield, Front Seat Cushion, Lh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71812-97201-03 |
US $39.02 |
||
| replacement | |||||
|
71812D
|
71812D
71812-97201-01 Shield, Front Seat Cushion, Lh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71812-97201-01 |
US $55.62 |
||
|
71825C
|
71825C
71825-97201 Label, Side Air Bag Name[09.1998 - 04.1999] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
71825-97201 |
US $3.64 |
||
|
71831B
|
71831B
71831-97201-03 Cover, Front Seat Hinge, Rh[09.1998 -] M10#,11# GRAY,TRIMS6,S8 |
71831-97201-03 |
US $6.70 |
||
| replacement | |||||
|
71831B
|
71831B
71831-97201-B0 Mat, Rear Seat Cushion[09.1998 -] M10#,11# GRAY,TRIMS6,S8 |
71831-97201-B0 |
US $9.03 |
||
|
71832B
|
71832B
71832-97201-03 Cover, Front Seat Hinge, Lh[09.1998 -] M10#,11# GRAY,TRIMS6,S8 |
71832-97201-03 |
US $6.70 |
||
| replacement | |||||
|
71832B
|
71832B
71832-97201-B0 Carpet Or Mat, Rear Seat Back[09.1998 -] M10#,11# GRAY,TRIMS6,S8 |
71832-97201-B0 |
US $7.86 |
||
|
71850D
|
71850D
71850-97201 Harness Assy, Front Seat[09.1998 - 04.1999] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
71850-97201 |
US $7.72 |
||
|
71861
|
71861
71861-97201-03 Shield, Front Seat Cushion, Inner Rh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71861-97201-03 |
US $35.24 |
||
| replacement | |||||
|
71861
|
71861
71861-97201-01 Shield, Front Seat Cushion, Inner Rh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71861-97201-01 |
US $51.11 |
||
|
71862
|
71862
71862-97201-03 Shield, Front Seat Cushion, Inner Lh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71862-97201-03 |
US $48.05 |
||
|
71910A
|
71910A
71910-97202-03 Headrest Assy, Front Seat[09.1998 - 05.2000] M100,110..X DARK GRAY,TRIMS6 |
71910-97202-03 |
US $212.58 |
||
|
71910A
|
71910A
71910-97203-01 Headrest Assy, Front Seat[09.1998 - 05.2000] M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
71910-97203-01 |
US $212.58 |
||
|
71930C
|
71930C
71930-97201-03 Support, Front Seat Headrest, Lh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71930-97201-03 |
US $12.81 |
||
| replacement | |||||
|
71930C
|
71930C
71930-97201-01 Support, Front Seat Headrest, Lh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71930-97201-01 |
US $19.95 |
||
|
71931D
|
71931D
71931-97201-03 Support, Front Seat Headrest, Rh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71931-97201-03 |
US $8.74 |
||
| replacement | |||||
|
71931D
|
71931D
71931-97201-01 Support, Front Seat Headrest, Rh[09.1998 - 05.2000] M100,110 DARK GRAY,TRIMS6 |
71931-97201-01 |
US $13.83 |
||
|
71977
|
71977
71977-97201 Cushion[09.1998 - 04.1999] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
71977-97201 |
US $6.12 |
||
|
72110A
|
72110A
72110-97202 Track Assy, Front Seat, Outer Rh[09.1998 - 05.2000] M100,110..X |
72110-97202 |
US $231.50 |
||
|
72120
|
72120
72120-97201 Track Assy, Front Seat, Outer Lh[09.1998 - 05.2000] M100,110 |
72120-97201 |
US $171.81 |
||
|
72137
|
72137
72137-97202 Protector, Seat Track Lower Rail, No.1[09.1998 - 05.2000] M100,110 |
72137-97202 |
US $8.01 |
||
|
72404
|
72404
72404-97201 Link Sub-Assy, Vertical Seat[09.1998 - 05.2000] M100,110..X |
72404-97201 |
US $90.27 |
||
|
72510
|
72510
72510-97201 Adjuster Assy, Reclining Seat Back, Rh[09.1998 -] M10#,11# |
72510-97201 |
US $93.18 |
||
|
72520
|
72520
72520-97201 Adjuster Assy, Reclining Seat Back, Lh[09.1998 -] M10#,11# |
72520-97201 |
US $93.18 |
||
|
72525A
|
72525A
72525-97201-03 Handle, Reclining Adjuster Release, Rh[09.1998 -] M10#,11# DARK GRAY,TRIMS6 |
72525-97201-03 |
US $9.61 |
||
| replacement | |||||
|
72525A
|
72525A
72525-97201-C0 Handle, Reclining Adjuster Release, Rh[09.1998 -] M10#,11# DARK GRAY,TRIMS6 |
72525-97201-C0 |
US $11.36 |
||
|
72526
|
72526
72526-97201-03 Handle, Reclining Adjuster Release, Lh[09.1998 -] M10#,11# DARK GRAY,TRIMS6 |
72526-97201-03 |
US $9.61 |
||
| replacement | |||||
|
72526
|
72526
72526-97201-B4 Handle, Reclining Adjuster Release, Lh[09.1998 -] M10#,11# DARK GRAY,TRIMS6 |
72526-97201-B4 |
US $10.19 |
||
|
72592
|
72592
72592-87701-03 Knob, Reclining Adjuster[09.1998 -] M101,111;M100,110..X DARK GRAY,TRIMS6 |
72592-87701-03 |
US $13.25 |
||
| replacement | |||||
|
72592
|
72592
72592-87701-01 Knob, Reclining Adjuster[09.1998 -] M101,111;M100,110..X DARK GRAY,TRIMS6 |
72592-87701-01 |
US $13.25 |
||
|
72592C
|
72592C
90045-20167
Ring, Shaft Snap(For Front Door Window Regulator Handle)
[09.1998 -] M101,111;M100,110..X |
90045-20167 |
— | ||
| replacement | |||||
|
72592C
|
72592C
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[09.1998 -] M101,111;M100,110..X |
90520-01274 |
from US $1.01 |
||
|
72725
|
72725
72725-87201-13 Hook, Front Seat Back[09.1998 -] M10#,11# DARK GRAY,TRIMS6 |
72725-87201-13 |
US $20.97 |
||
|
72810A
|
72810A
72810-97201-03 Armrest Assy, Seat, Rh[09.1998 - 05.2000] M100,110..4AT..X DARK GRAY,TRIMS6 |
72810-97201-03 |
US $163.07 |
||
|
72810A
|
72810A
72810-97202-01 Armrest Assy, Seat, Rh[09.1998 - 05.2000] M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
72810-97202-01 |
US $278.10 |
||
|
72810E
|
72810E
90043-85112 Bush, Front Seat Armrest, No.1[09.1998 -] M10#,11#..ATM..(VS,X) |
90043-85112 |
US $5.68 |
||
| replacement | |||||
|
72810E
|
72810E
90386-14007 Bush, Front Seat Armrest, No.1[09.1998 -] M10#,11#..ATM..(VS,X) |
90386-14007 |
US $5.53 |
||
|
72810H
|
72810H
90044-64072 Clamp, Front Seat Armrest[09.1998 - 05.2000] M100,110 |
90044-64072 |
US $2.04 |
||
|
73507
|
73507
73507-97201 Rail Sub-Assy, Front Seat[09.1998 - 05.2000] M100,110..X |
73507-97201 |
US $15.87 |
||
| replacement | |||||
|
73507
|
73507
73507-97206 Rail Sub-Assy, Front Seat[09.1998 - 05.2000] M100,110..X |
73507-97206 |
US $28.39 |
||
|
73508
|
73508
73508-97201 Rail Sub-Assy, Front Seat[09.1998 - 12.2001] M101,111;M100,110..X |
73508-97201 |
US $15.87 |
||
| replacement | |||||
|
73508
|
73508
73508-97202 Rail Sub-Assy, Front Seat[09.1998 - 12.2001] M101,111;M100,110..X |
73508-97202 |
US $28.39 |
||
|
73910A
|
73910A
73910-97201 Air Bag Assy, Front Seat, Rh[09.1998 - 04.1999] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
73910-97201 |
US $917.28 |
||
|
73920A
|
73920A
73920-97201 Air Bag Assy, Front Seat, Lh[09.1998 - 04.1999] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
73920-97201 |
US $917.28 |
||
|
82711G
|
82711G
82711-97207 Clamp, Wiring Harness[04.1999 -] M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
82711-97207 |
US $3.35 |
||
|
82711G
|
82711G
90044-65316 Clamp, Wiring Harness[09.1998 - 04.1999] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
90044-65316 |
US $1.89 |
||
|
82711H
|
82711H
82711-97208 Clamp, Wiring Harness[09.1998 - 04.1999] M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
82711-97208 |
US $2.48 |
||
|
91512B1020
|
91512B1020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
| replacement | |||||
|
91512B1020
|
91512B1020
90105-A0050 Bolt(For Front Transaxle Case Cover) |
90105-A0050 |
US $3.96 |
||
|
9004109126
|
9004109126
90041-09126 New Genuine Part |
90041-09126 |
US $3.20 |
||
|
9004119960
|
9004119960
90041-19960 New Genuine Part |
90041-19960 |
US $1.75 |
||
|
9004119992
|
9004119992
90041-19992 New Genuine Part |
90041-19992 |
US $2.18 |
||
|
9004159316
|
9004159316
90041-59316 New Genuine Part |
90041-59316 |
US $1.46 |
||
|
9004159350
|
9004159350
90041-59350 New Genuine Part |
90041-59350 |
US $1.75 |
||
|
9004179253
|
9004179253
90041-79253 New Genuine Part |
90041-79253 |
US $2.33 |
||
|
9004183060
|
9004183060
90041-83060 New Genuine Part |
90041-83060 |
US $2.18 |
||
|
9004183061
|
9004183061
90041-83061 New Genuine Part |
90041-83061 |
US $2.04 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.12 |
||
|
9453101400
|
9453101400
94531-01400 New Genuine Part |
94531-01400 |
US $0.87 |
||
|
9461211400
|
9461211400
94612-11400 WASHERPLATE |
94612-11400 |
US $2.56 |
||
