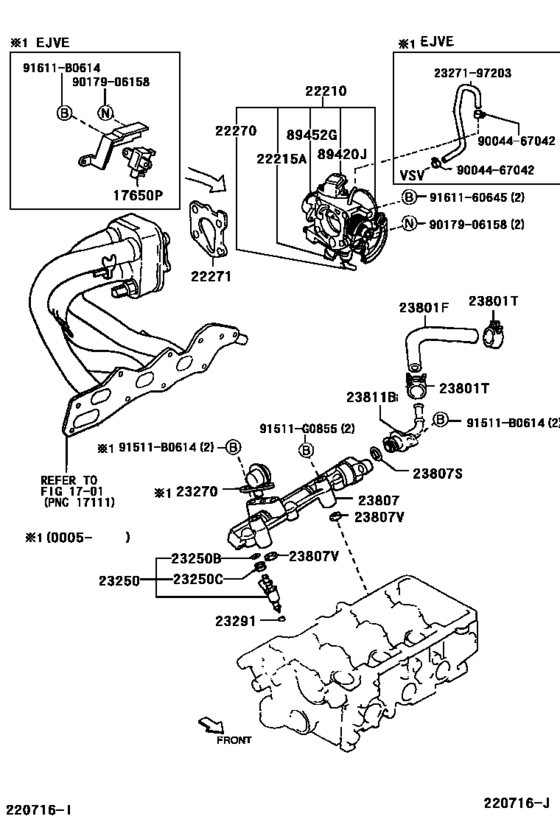

Fuel Injection System ([09.1998 - ] (9809- )EJ#) Diagram Toyota DUET
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- M100A
- grade
- X
- ENGINE
- EJDE
- TRANSMISSION
- ATM
- From
- 09.1998
- To
- 05.2000
- Gear Shift Type
- 4AT
- Fuel Induction
- LVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-97201 Body Assy, Throttle[09.1998 - 05.2000] EJDE..M100,110..4AT |
22210-97201 |
US $936.21 |
||
| replacement | |||||
|
22210
|
22210
22210-97225 Body Assy, Throttle[09.1998 - 05.2000] EJDE..M100,110..4AT |
22210-97225 |
US $1,080.35 |
||
|
22215A
|
22215A
22215-97201 Gasket, Throttle Body Cover[09.1998 -] EJ#..M100,110 |
22215-97201 |
from US $5.42 |
||
|
22270
|
22270
22270-97201 Valve Assy, Idle Speed Control(For Thlottle Body)[09.1998 -] EJ#..M100,110 |
22270-97201 |
from US $387.30 |
||
|
22271
|
22271
22271-97201 Gasket, Throttle Body[09.1998 -] EJ#..M100,110 |
22271-97201 |
US $4.96 |
||
|
23250
|
23250
23250-97201 Injector Assy, Fuel[09.1998 - 05.2000] EJDE..M100,110 |
23250-97201 |
US $273.73 |
||
|
23250B
|
23250B
90043-01136 Ring, O(For Fuel Injector)[09.1998 -] EJ#..M100,110 |
90043-01136 |
from US $1.40 |
||
|
23250C
|
23250C
90044-80391
Grommet(For Fuel Injector)
[09.1998 -] EJ#..M100,110 |
90044-80391 |
— | ||
|
23291
|
23291
23291-87701 Insulator, Injector Vibration[09.1998 -] EJ#..M100,110 |
23291-87701 |
US $4.96 |
||
|
23801F
|
23801F
23271-97201 Hose, Fuel, No.1[09.1998 - 09.2000] EJ#..M100,110 |
23271-97201 |
US $34.51 |
||
| replacement | |||||
|
23801F
|
23801F
23271-97206 Hose, Fuel, No.1[09.1998 - 09.2000] EJ#..M100,110 |
23271-97206 |
US $54.75 |
||
|
23801T
|
23801T
90044-67190 Clip(For Fuel Hose No.2)[09.1998 -] K3VE,EJ#..M10#,11# |
90044-67190 |
US $3.79 |
||
| replacement | |||||
|
23801T
|
23801T
90044-67234 Clip(For Fuel Hose No.2)[09.1998 -] K3VE,EJ#..M10#,11# |
90044-67234 |
US $7.04 |
||
|
23807
|
23807
23814-97201 Pipe Sub-Assy, Fuel Delivery[09.1998 - 05.2000] EJDE..M100,110 |
23814-97201 |
US $131.04 |
||
|
23807S
|
23807S
90043-01263 Ring, O(For Pulsation Damper)[09.1998 -] EJ#..M100,110 |
90043-01263 |
US $3.06 |
||
|
23807V
|
23807V
23845-87205 Spacer, No.1(For Delivery Pipe)[09.1998 -] EJ#..M100,110 |
23845-87205 |
US $3.93 |
||
|
23811B
|
23811B
23811-97201 Pipe, Fuel, No.1[09.1998 -] EJ#..M100,110 |
23811-97201 |
US $24.02 |
||
|
89420J
|
89420J
89420-97201 Sensor Assy, Vacuum(For Throttle Body)[09.1998 - 05.2000] M100,110..4AT |
89420-97201 |
US $362.54 |
||
| replacement | |||||
|
89420J
|
89420J
89420-87205 Sensor Assy, Vacuum(For Throttle Body)[09.1998 - 05.2000] M100,110..4AT |
89420-87205 |
US $125.22 |
||
|
89452G
|
89452G
89452-87114 Sensor, Throttle Position (For E.f.i.)[09.1998 -] M100,110 |
89452-87114 |
US $116.48 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
91511G0855
|
91511G0855
91511-G0855 New Genuine Part |
91511-G0855 |
US $1.31 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
2327197203
|
2327197203
23271-97203
Valve, Thermostatic Vacuum Switching, No.1
|
23271-97203 |
— | ||
|
9004467042
|
9004467042
90044-67042
New Genuine Part
|
90044-67042 |
— | ||
| replacement | |||||
|
9004467042
|
9004467042
90044-67288 CLIP |
90044-67288 |
from US $0.88 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9161160645
|
9161160645
91611-60645
New Genuine Part
|
91611-60645 |
— | ||
